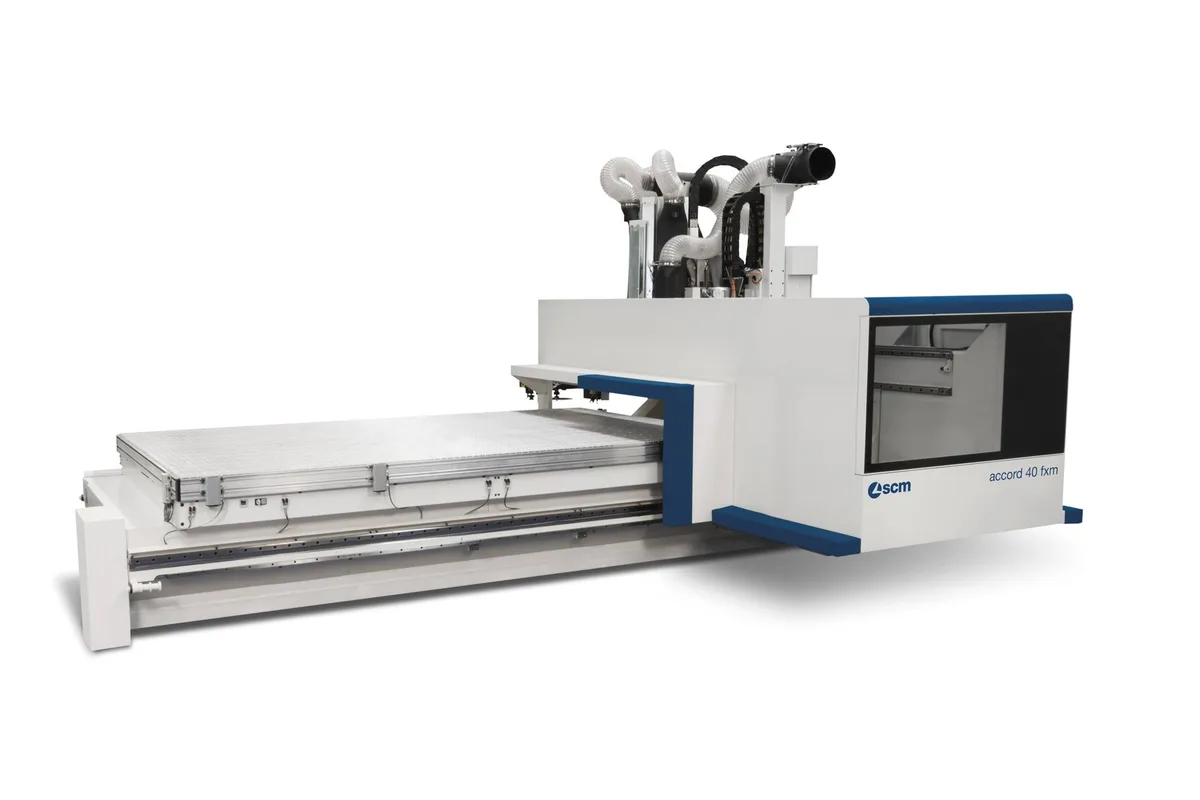

SCM Accord 40 FXM
Image: scmgroup.com, SCM
Key Specifications
working areas xyz
working area x
working area y
working area z
axis speed xyz
spindle power 5 axis
How much does the SCM Accord 40 FXM cost?
Price estimate
We do not have a price for the SCM Accord 40 FXM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Accord 40 FXM is a mobile-gantry machining center on a flat aluminium multi-function worktable, with a 5-axis electrospindle of up to 17 kW (22.8 hp) and X-Y axis speeds of 90 m/min. It comes in six working areas from 3650x1600x350 mm to 6170x2120x350 mm.
What sets it apart is the BRC working unit. BRC stands for boring, routing and cutting, and SCM states that the unit does all three vertically and horizontally without a tool change. It has its own Z axis and its own inverter, so secondary operations such as hinge borings, grooves and small cut-outs run without interrupting the main spindle's tooling.
Beside the 5-axis spindle the table lists a 3- or 4-axis electrospindle of up to 15 kW (20.1 hp), with 24000 rpm as the maximum for both. The drilling unit takes up to 30 vertical and horizontal spindles at 8000 rpm. Tool storage is generous: 12 positions on the machining head, 48 positions at the rear and 12 positions at the side.
Z is 350 mm (13.8 in) and moves at 30 m/min, as the 90-90-30 m/min row shows. Parts that need more height are the territory of the Accord 50 FXM, whose working areas run to 6170x2120x500 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xyz | 3650x1600x350 mm / 4970x1600x350 mm / 6170x1600x350 mm / 3650x2120x350 mm / 4970x2120x350 mm / 6170x2120x350 mm |
| Working Area X | 3,650 mm (143.7 in), 4,970 mm (195.7 in), 6,170 mm (242.9 in) |
| Working Area Y | 1,600 mm (63.0 in), 2,120 mm (83.5 in) |
| Working Area Z | 350 mm (13.8 in) |
| Axis Speed Xyz | 90-90-30 m/min (X-Y-Z axes max. speed) |
| Spindle Power 5 Axis | 17 kW (22.8 hp) max. |
| Spindle Power 3 4 Axis | 15 kW (20.1 hp) max. |
| Spindle Speed 5 Axis | 24000 rpm max. |
| Spindle Speed 3 4 Axis | 24000 rpm max. |
| Tool Store on Machining Head | 12 positions |
| Rear Tool Store | 48 positions |
| Side Tool Store | 12 positions |
| Drilling Unit Spindles Max | 30 (vertical and horizontal) |
| Drilling Unit Rotation Speed Max | 8000 rpm |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- BRC working unit bores, routes and cuts vertically and horizontally without a tool change
- 5-axis electrospindle of up to 17 kW (22.8 hp) at 24000 rpm
- 48-position rear tool store, with 12 positions on the head and 12 positions at the side
- X-Y-Z axis speeds of 90-90-30 m/min
- Drilling unit with up to 30 vertical and horizontal spindles
Limitations
- No Y depth below 1,600 mm (63.0 in); the Accord 25 FXM also offers 1,320 mm (52.0 in)
- Z is 350 mm (13.8 in); the Accord 50 FXM working areas, such as 3650x1600x500 mm, are taller
- Z-axis speed is 30 m/min against 90 m/min in X and Y
Best For
Frequently Asked Questions
01
BRC stands for boring, routing and cutting. SCM states that the unit performs these operations both vertically and horizontally without needing a tool change, and that it has an independent Z-axis and a dedicated inverter for all additional machinings.
02
The 5-axis electrospindle is listed at up to 17 kW (22.8 hp) and the 3- or 4-axis electrospindle at up to 15 kW (20.1 hp). Both have a maximum rotation speed of 24000 rpm.
03
Six: 3650x1600x350 mm, 4970x1600x350 mm, 6170x1600x350 mm, 3650x2120x350 mm, 4970x2120x350 mm and 6170x2120x350 mm. Three X lengths are each offered in two Y depths, and Z is 350 mm (13.8 in) on all six.
04
The Accord 25 FXM is listed at 60-60-30 m/min (X-Y-Z axes max. speed), with a 32-position rear tool store. This model reaches 90-90-30 m/min and has a 48-position rear store, with more Z as well.
