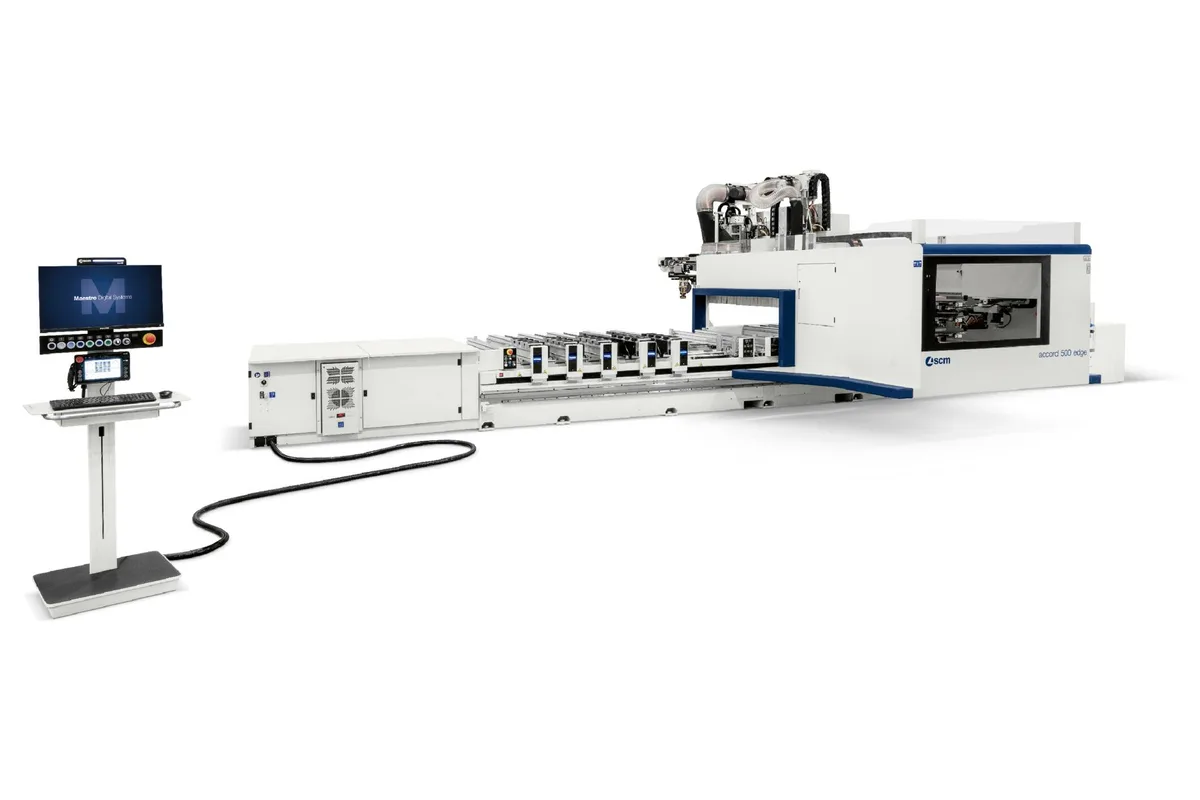

SCM Accord 500 Edge
Image: scmgroup.com, SCM
Key Specifications
working areas xyz
working area x
working area y
working area z
vectorial speed pro space
vectorial speed pro speed
How much does the SCM Accord 500 Edge cost?
Price estimate
We do not have a price for the SCM Accord 500 Edge that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Accord 500 Edge adds an edge banding unit to a bar-table routing and drilling center, so a shaped panel can be cut, drilled and edged without leaving the machine. The H80C "Compact" unit applies edges from 16 to 85 mm high and from 0.4 to 3 mm thick, and SCM describes it as suited to panels up to 80 mm thick. Up to 5 edge materials can be held in the edge storage.
Nine working areas are listed, more than on any other Accord page here, because a third Y depth of 2,250 mm (88.6 in) joins the 1,600 mm (63.0 in) and 1,900 mm (74.8 in) options. The largest is 6715 x 2250 x 300 mm. Curved parts need room around them for the edging unit to travel, and the extra depth provides it.
Routing is handled by a 5-axis electrospindle of up to 17 kW (23 hp) or a 3- or 4-axis electrospindle of up to 21 kW (28.5 hp), both at a maximum of 24000 rpm. Three tool changers appear in the table: TRB side with 11 positions, CADDY side with 35 positions and a VELOCE on-board circular changer with 12 positions. The drilling unit has up to 31 independent vertical and horizontal spindles.
SCM states that the pressure system changes over automatically, which lets the machine switch the edge application technology from one process to the next. Four worktables are offered: Flex, Flexdrive, Flexmatic Pro and Matic, the last with fully automated positioning of the suction pods.
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xyz | 3715 x 1600 x 300 mm / 3715 x 1900 x 300 mm / 3715 x 2250 x 300 mm / 5515 x 1600 x 300 mm / 5515 x 1900 x 300 mm / 5515 x 2250 x 300 mm / 6715 x 1600 x 300 mm / 6715 x 1900 x 300 mm / 6715 x 2250 x 300 mm |
| Working Area X | 3,715 mm (146.3 in), 5,515 mm (217.1 in), 6,715 mm (264.4 in) |
| Working Area Y | 1,600 mm (63.0 in), 1,900 mm (74.8 in), 2,250 mm (88.6 in) |
| Working Area Z | 300 mm (11.8 in) |
| Vectorial Speed Pro Space | 25-80-45 m/min (X-Y-Z axes max. vectorial speed, PRO-SPACE) |
| Vectorial Speed Pro Speed | 90-80-45 m/min (X-Y-Z axes max. vectorial speed, PRO-SPEED) |
| Spindle Power 5 Axis | 17 kW (23 hp) max. |
| Spindle Power 3 4 Axis | 21 kW (28.5 hp) max. |
| Spindle Speed 5 Axis | 24000 rpm max. |
| Spindle Speed 3 4 Axis | 24000 rpm max. |
| Trb Side Tool Changer | 11 positions |
| Caddy Side Tool Changer | 35 positions |
| Veloce on Board Circular Tool Changer | 12 positions |
| Drilling Unit Spindles | up to 31 (independent vertical and horizontal) |
| Drilling Unit Rotation Speed Max | 8000 rpm |
| Edge Banding Unit | H80C "Compact" |
| Edge Height | from 16 to 85 mm |
| Edge Thickness | from 0.4 to 3 mm |
| Edge Storage | up to 5 |
| Available Working Tables | Flex, Flexdrive, Flexmatic Pro, Matic |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Routing, drilling and edge banding of shaped panels in one setup with the H80C "Compact" unit
- Edges from 16 to 85 mm high and from 0.4 to 3 mm thick, with storage for up to 5 edges
- Nine working areas, including a 2,250 mm (88.6 in) Y depth not offered on the Accord 500
- Automatic pressure system changeover between edge application technologies
- Choice of four worktables from manual Flex to automated Matic
Limitations
- 5-axis electrospindle is listed at 17 kW (23 hp) max., below the 20 kW (27 hp) max. of the Accord 500
- Only three tool changers are listed; the RAPID and QUADRO rear changers of the Accord 500 do not appear in this table
- PRO-SPACE version is limited to 25-80-45 m/min against 90-80-45 m/min in PRO-SPEED
- Z stays at 300 mm (11.8 in) in all nine working areas
Best For
Frequently Asked Questions
01
The H80C "Compact" edge banding unit is listed for edge heights from 16 to 85 mm and edge thicknesses from 0.4 to 3 mm. SCM describes it as an edgebanding unit for panels up to 80 mm thick. The edge storage holds up to 5 edges.
02
SCM lists four: Flex, Flexdrive, Flexmatic Pro and Matic. Flex is the manual worktable and Matic positions the suction pods fully automatically. The tables are available with HE-POD clamps and suction pods.
03
It adds the H80C "Compact" edge banding unit and a third Y depth, giving nine working areas instead of six. Its 5-axis spindle is listed at up to 17 kW (23 hp), against 20 kW (27 hp) max. on the Accord 500, and its table names three tool changers.
04
SCM gives maximum vectorial speeds for the X-Y-Z axes of 90-80-45 m/min in the PRO-SPEED version and 25-80-45 m/min in the PRO-SPACE version. The difference between the two versions is in the X axis.
