SCM Accord 25 FXM

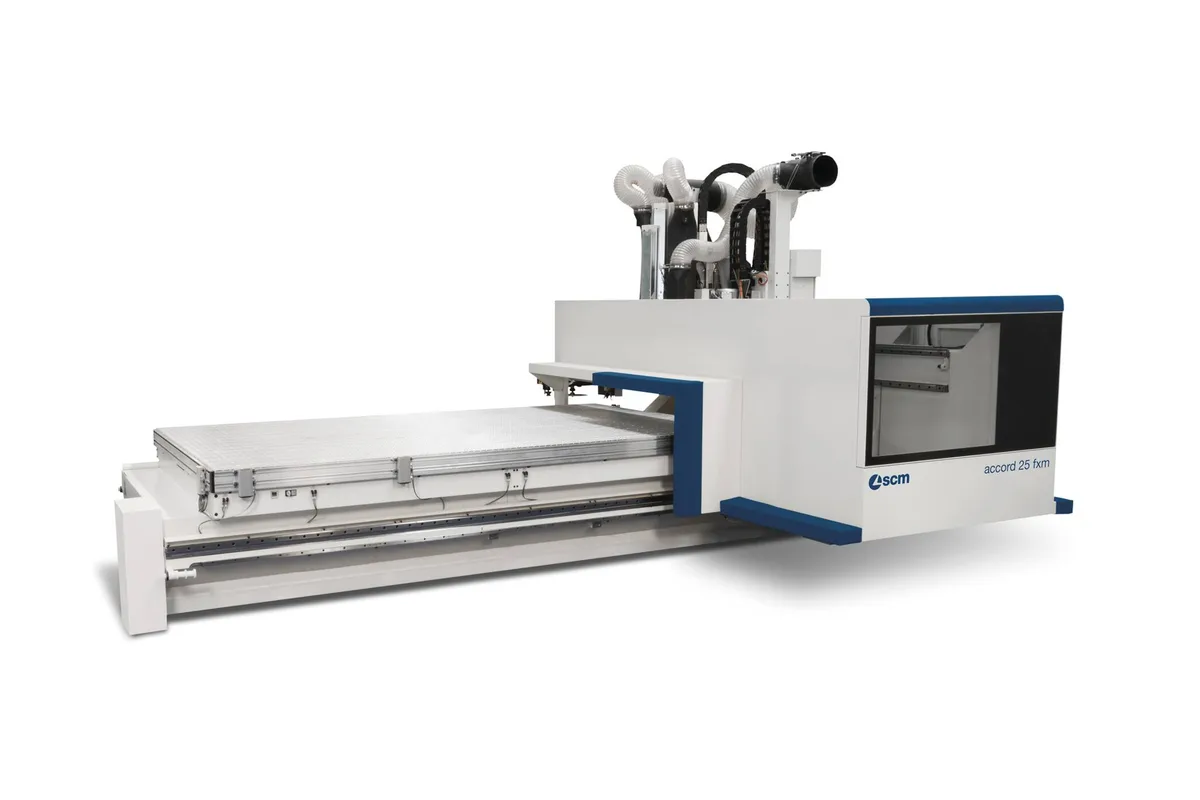

Image: scmgroup.com, SCM
Key Specifications
working areas xyz
working area x
working area y
working area z
axis speed xyz
spindle power 5 axis
How much does the SCM Accord 25 FXM cost?
Price estimate
We do not have a price for the SCM Accord 25 FXM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Accord 25 FXM is the smallest of the Accord machining centers with an aluminium multi-function worktable, a flat table with integrated vacuum and T-grooves in place of bars and pods. It is listed in nine working areas, from 3650x1320x250 mm to 6170x2120x250 mm.
The table type decides the kind of work. Whole sheets of plywood, chipboard or MDF lie flat on it and are held by the direct vacuum system, which is what nesting needs, while the T-grooves take mechanical fixtures for solid wood components. Nine sizes give a wide choice of sheet formats: three X lengths, each in Y depths of 1,320 mm (52.0 in), 1,600 mm (63.0 in) or 2,120 mm (83.5 in).
SCM lists a 5-axis electrospindle of up to 12 kW (16.1 hp) and a 3- or 4-axis electrospindle of up to 15 kW (20.1 hp), both to 24000 rpm. The drilling unit has up to 30 vertical and horizontal spindles at 8000 rpm. Tools are spread over 12 positions on the machining head, a 32-position rear store and a 12-position side store.
Axis speeds are the modest part of the specification at 60-60-30 m/min. The Accord 40 FXM above it is listed at 90-90-30 m/min (X-Y-Z axes max. speed) and has 350 mm (13.8 in) of Z.
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xyz | 3650x1320x250 mm / 4970x1320x250 mm / 6170x1320x250 mm / 3650x1600x250 mm / 4970x1600x250 mm / 6170x1600x250 mm / 3650x2120x250 mm / 4970x2120x250 mm / 6170x2120x250 mm |
| Working Area X | 3,650 mm (143.7 in), 4,970 mm (195.7 in), 6,170 mm (242.9 in) |
| Working Area Y | 1,320 mm (52.0 in), 1,600 mm (63.0 in), 2,120 mm (83.5 in) |
| Working Area Z | 250 mm (9.8 in) |
| Axis Speed Xyz | 60-60-30 m/min (X-Y-Z axes max. speed) |
| Spindle Power 5 Axis | 12 kW (16.1 hp) max. |
| Spindle Power 3 4 Axis | 15 kW (20.1 hp) max. |
| Spindle Speed 5 Axis | 24000 rpm max. |
| Spindle Speed 3 4 Axis | 24000 rpm max. |
| Tool Store on Machining Head | 12 positions |
| Rear Tool Store | 32 positions |
| Side Tool Store | 12 positions |
| Drilling Unit Spindles Max | 30 (vertical and horizontal) |
| Drilling Unit Rotation Speed Max | 8000 rpm |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Nine working areas, including a narrow 1,320 mm (52.0 in) Y depth and a wide 2,120 mm (83.5 in) one
- Aluminium multi-function worktable with direct integrated vacuum and T-grooves
- Drilling unit with up to 30 vertical and horizontal spindles
- Both a 5-axis spindle of up to 12 kW (16.1 hp) and a 3- or 4-axis spindle of up to 15 kW (20.1 hp) are listed
Limitations
- Axis speeds of 60-60-30 m/min are the lowest of the Accord FXM models
- Z of 250 mm (9.8 in) limits part height
- Rear tool store has 32 positions, against 48 positions on the Accord 40 FXM
Best For
Frequently Asked Questions
01
An SCM aluminium multi-function worktable. SCM states that it guarantees lasting planarity, that the direct integrated vacuum system holds the work-piece down, and that the T-grooves accept any type of mechanical locking equipment.
02
Nine, combining X lengths of 3,650 mm (143.7 in), 4,970 mm (195.7 in) and 6,170 mm (242.9 in) with Y depths of 1,320 mm (52.0 in), 1,600 mm (63.0 in) and 2,120 mm (83.5 in). Z is 250 mm (9.8 in) throughout.
03
A 5-axis electrospindle of up to 12 kW (16.1 hp) and a 3- or 4-axis electrospindle of up to 15 kW (20.1 hp), both with a maximum of 24000 rpm. The drilling unit carries up to 30 vertical and horizontal spindles at 8000 rpm.
04
The table lists 12 positions in the tool store on the machining head, 32 positions in the rear tool store and 12 positions in the side tool store.
