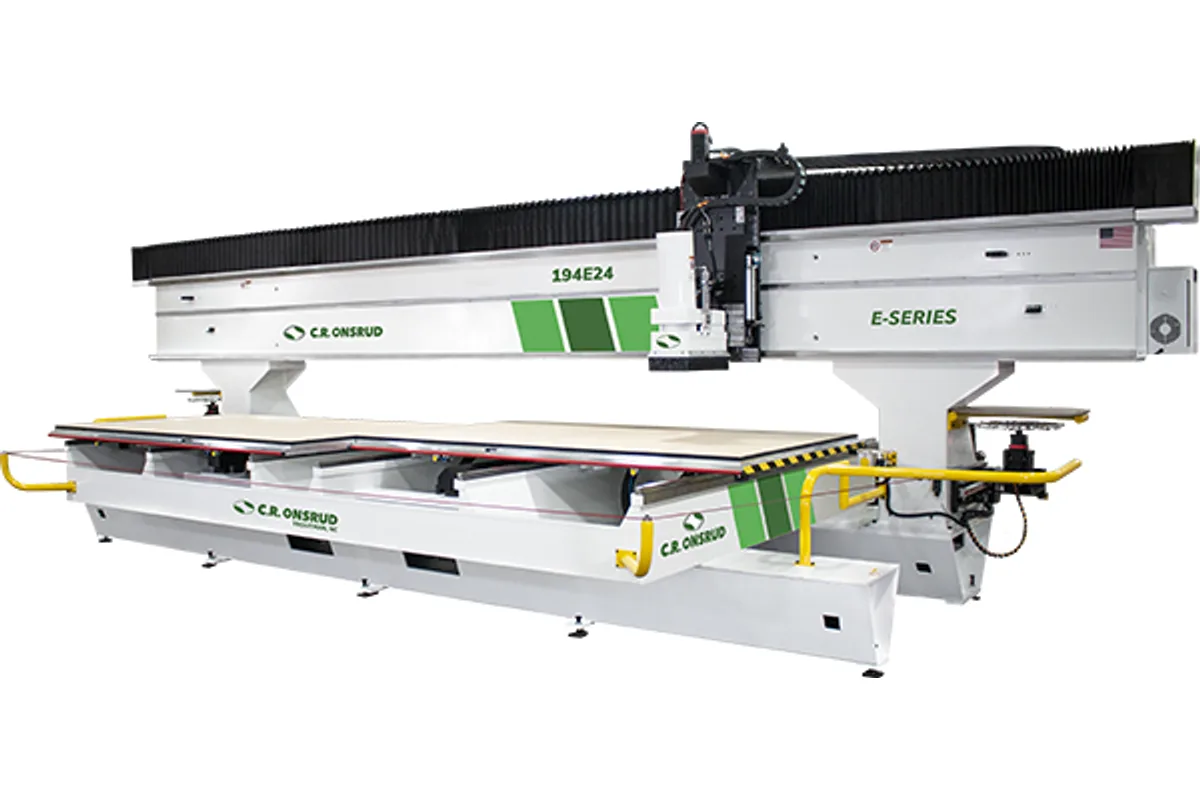

Onsrud 194E
Image: cronsrud.com, Onsrud
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
table width options
table 1 size x
table 1 size y
How much does the Onsrud 194E cost?
Price estimate
We do not have a price for the Onsrud 194E that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Onsrud 194E gives each of its twin tables about eight feet of depth: 97 in (2,464 mm) in Y in the W5, W6 and W8 columns, and 120 in (3,048 mm) in W10. It is a 3-axis E-Series fixed-bridge router, 18 hp (13.4 kW) and 24,000 rpm as standard.
Full-size sheets can lie on a 194E table with the long side running in Y. With the W5 column, table X is 61 in (1,550 mm); W6 gives 72 in (1,829 mm), W8 gives 96 in (2,439 mm) and W10 gives 120 in (3,048 mm). Onsrud's table prints the second W5 table at 98 in (2,490 mm) in Y, one inch more than the first. Treat that as something to confirm, not as a feature.
At this depth the bridge has a long way to span. The machine is 332 in (8,433 mm) wide, or 333 in (8,459 mm) in W10, and between 147 in (3,734 mm) and 263 in (6,681 mm) long. That is a serious floor commitment, and the foundation and rigging should be planned with the maker.
Vacuum is 4 zones as standard in every column. The Z-stroke is 11 in (279 mm), with 18 in (457 mm), 28 in (711 mm) and 40 in (1,016 mm) optional, and the tool changer holds 12 or, as an upgrade, 24.
Full Specifications
| Parameter | Value |
|---|---|
| Table Width Options | W5, W6, W8, W10 |
| Table 1 Size X | W5: 61 in (1,550 mm); W6: 72 in (1,829 mm); W8: 96 in (2,439 mm); W10: 120 in (3,048 mm) |
| Table 1 Size Y | W5/W6/W8: 97 in (2,464 mm); W10: 120 in (3,048 mm) |
| Table 2 Size X | W5: 61 in (1,550 mm); W6: 72 in (1,829 mm); W8: 96 in (2,439 mm); W10: 120 in (3,048 mm) |
| Table 2 Size Y | W5: 98 in (2,490 mm); W6/W8: 97 in (2,464 mm); W10: 120 in (3,048 mm) |
| Machine Length | W5: 147 in (3,734 mm); W6: 159 in (4,039 mm); W8: 213 in (5,411 mm); W10: 263 in (6,681 mm) |
| Machine Width | W5/W6/W8: 332 in (8,433 mm); W10: 333 in (8,459 mm) |
| Machine Height | 106 in (2,693 mm) |
| Vacuum Zones Standard | 4 |
| Spindle Motor Power | 18 hp (13.4 kW) |
| Max Spindle Speed | 24,000 rpm |
| Tool Capacity | 12 (larger capacity tool changers optional) |
| Z Stroke | 11 in (279 mm) |
| Spindle Power Optional | 24 hp (17.9 kW) |
| Spindles Optional | Up to 8 |
| Tool Capacity Optional | 24 |
| Second Tool Changer | Optional |
| Z Stroke Optional | 18 in (457 mm), 28 in (711 mm), 40 in (1,016 mm) |
Specifications sourced from cronsrud.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Twin tables 97 in (2,464 mm) deep, 120 in (3,048 mm) in the W10 column
- Full sheets fit each table for pendulum cutting
- Table X choices from 61 in (1,550 mm) to 120 in (3,048 mm)
- Heavy fixed-bridge frame with up to 8 spindles optional
Limitations
- Machine width of 332 in (8,433 mm)
- Only 4 vacuum zones listed, whatever the table size
- The maker's table shows a one-inch mismatch between the two W5 tables
Best For
Frequently Asked Questions
01
Table 1 is 97 in (2,464 mm) in Y for the W5, W6 and W8 columns and 120 in (3,048 mm) for W10. Table 2 is listed the same except in W5, where Onsrud prints 98 in (2,490 mm).
02
Four columns: W5 with a table X of 61 in (1,550 mm), W6 with 72 in (1,829 mm), W8 with 96 in (2,439 mm) and W10 with 120 in (3,048 mm).
03
It is 332 in (8,433 mm) wide, 333 in (8,459 mm) in W10, and 106 in (2,693 mm) high. Length is 147 in (3,734 mm), 159 in (4,039 mm), 213 in (5,411 mm) or 263 in (6,681 mm) by column.
04
18 hp (13.4 kW) at 24,000 rpm with 12 tools is standard. A 24 hp (17.9 kW) spindle, up to 8 spindles, a 24-tool capacity and a second tool changer are the listed upgrades.
