MultiCam 8000 Series
This model was not found in MultiCam's current lineup when we checked on 2026-10-03 . It may be a superseded or older model; the specifications below are as we last recorded them.
Key Specifications
Max Spindle
Spindle Power
work area x
work area y
work area z
feed rate max
How much does the MultiCam 8000 Series cost?
Estimated price range
Our best estimate for a cnc router in this class — not a quote from MultiCam. Configuration moves it a long way.
Overview

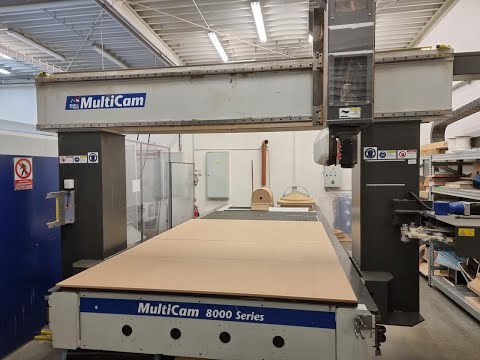

The MultiCam 8000 Series is a heavy gantry CNC router listed with a 20–30 hp (14.9–22.4 kW) spindle at 24,000 RPM and X travel from 61 in (1,550 mm) to 122 in (3,100 mm). MultiCam no longer shows the 8000 Series in its current lineup. The listed figures come from an unconfirmed table, so someone looking at a used machine should treat them as things to verify, not as a specification.
Spindle power is what marks out this model. The listed range is 20–30 hp (14.9–22.4 kW), one row gives 24.1 hp for a particular machine, and the taper is listed as HSK F63. That is a lot of power for a router, enough for large-diameter cutters and deep passes in sheet and plate materials. Feed rate is listed up to 2,000 in/min (50.8 m/min).
The bed is long. Y travel is listed from 121 in (3,073 mm) to 240 in (6,096 mm) with the extended bed, and custom widths are noted as available beyond the 61 in (1,550 mm) to 122 in (3,100 mm) X range. With so much of the size configurable, measure the actual travels of any machine on offer. The table's rows for the vertical axis do not agree with each other, so Z travel in particular should be measured, not assumed.
The control is listed as the MultiCam e-Panel Pro with shop-floor networking. Weight is approx. 8,000–12,000 lb (3,629–5,443 kg), a wide spread that follows bed size and puts any move firmly in rigging territory. Next to the 5000 Series, whose spindles are 13.4, 16 or 20 HP, the 8000 starts where that range ends.
Full Specifications
| Parameter | Value |
|---|---|
| Work Area X | 61 in (1,550 mm) to 122 in (3,100 mm); custom widths available |
| Work Area Y | 121 in (3,073 mm) to 240 in (6,096 mm) extended bed |
| Work Area Z | 12 in (305 mm) |
| Spindle Motor Power | 20–30 hp (14.9–22.4 kW) |
| Max Spindle Speed | 24,000 RPM |
| Feed Rate Max | 2,000 in/min (50.8 m/min) |
| CNC Control | MultiCam e-Panel Pro with shop-floor networking |
| Machine Weight | Approx. 8,000–12,000 lb (3,629–5,443 kg) |
| Table W | 10' |
| Table L | 12' |
| Power | 24.1 hp |
| Taper | HSK F63 |
| X | 120" |
| Y | 120" |
| Z | 60" |
Specifications sourced from machinetools.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 20–30 hp (14.9–22.4 kW) spindle range at 24,000 RPM
- Spindle taper is listed as HSK F63
- Y travel listed up to 240 in (6,096 mm) with the extended bed
- Feed rate up to 2,000 in/min (50.8 m/min)
- e-Panel Pro control with shop-floor networking
Limitations
- Not in MultiCam's current lineup, and the listed figures are unconfirmed
- The listed rows for the vertical axis conflict, so Z travel must be measured on the machine
- Approx. 8,000–12,000 lb (3,629–5,443 kg) to move and install
- No tool changer capacity, hold-down or accuracy figure is listed
Best For
Frequently Asked Questions
01
MultiCam no longer shows the 8000 Series in its current lineup, so it appears to be an older model. The listed figures are unconfirmed. Anyone considering a used one should verify the spindle, the travels and the control on the machine.
02
The listed range is 20–30 hp (14.9–22.4 kW) at 24,000 RPM, with an HSK F63 taper. One row gives 24.1 hp, which falls inside that range and probably describes a single machine, so read the spindle nameplate.
03
X is listed from 61 in (1,550 mm) to 122 in (3,100 mm), with custom widths available. Y runs from 121 in (3,073 mm) to 240 in (6,096 mm) with the extended bed. The rows for Z conflict, so measure it.
04
Weight is listed at approx. 8,000–12,000 lb (3,629–5,443 kg). The spread reflects the range of bed sizes, so get the weight of the specific machine before booking transport or checking the floor.
