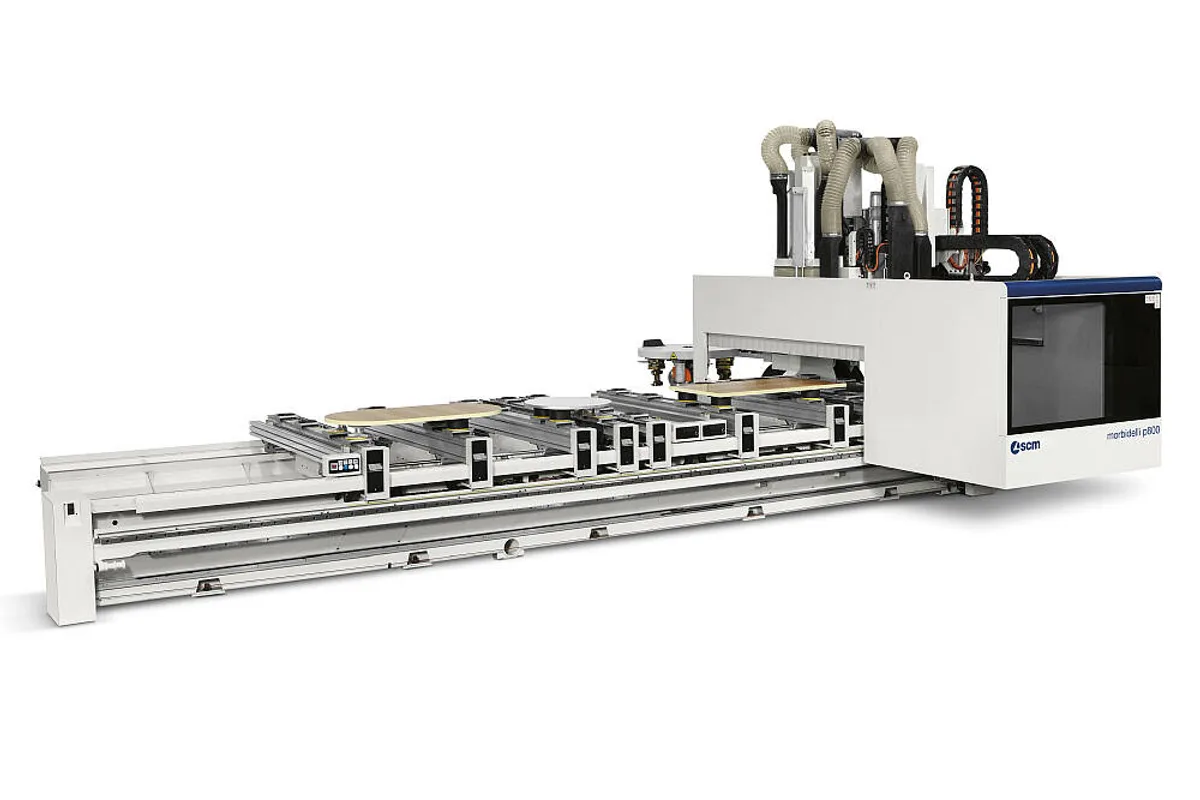

SCM Morbidelli P800
Image: scmgroup.com, SCM
Key Specifications
Tool Capacity
Spindle Power
working area x
working area y
drilling spindles
edge height
How much does the SCM Morbidelli P800 cost?
Price estimate
We do not have a price for the SCM Morbidelli P800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Morbidelli P800 is the large drilling, routing and edge treatment center of the range, sized for furniture factories that want a panel to leave one machine ready for assembly. Its X working area is 5,020-6,360 mm (197.6-250.4 in) and its Y working area 1,680-1,830 mm (66.1-72.0 in).
SCM prints most of this model's figures as ranges, because the machine is configured to order. Drilling spindles are listed as 26÷50, electrospindle motor power as 11÷17 kW and the tools available as 18÷34. The low end of each range describes a lean machine and the high end a fully equipped one, so two machines with this name can differ a great deal.
Edging is where the model is strongest on paper. The coils storage capacity is 2÷12, edge thickness runs 0.5-3.0 mm and the edge height row reads 15/84 mm. SCM states that the pressure system changes automatically to suit the edge type, and that a device it calls SBRINDLE reads the position of the edging on the fly to close joins cleanly on difficult workpieces.
There is no axis speed, Z passage or spindle speed in SCM's table for this model, so those points belong in the quotation. The smaller Morbidelli P200 is the alternative when 3110x1620 mm to 5510x1620 mm is enough.
Full Specifications
| Parameter | Value |
|---|---|
| Working Area X | 5,020-6,360 mm (197.6-250.4 in) |
| Working Area Y | 1,680-1,830 mm (66.1-72.0 in) |
| Drilling Spindles | 26÷50 |
| Spindle Motor Power | 11÷17 kW |
| Tool Capacity | 18÷34 (tools available on tool room) |
| Edge Height | 15/84 mm |
| Edge Thickness | 0.5-3.0 mm |
| Coils Storage Capacity | 2÷12 |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Coils storage capacity of 2÷12 for quick changes between edge materials
- Automatic change of the pressure system according to the edge type
- SBRINDLE device reads the position of the edging on the fly for clean joins
- Drilling spindles of 26÷50 and electrospindle power of 11÷17 kW, depending on configuration
Limitations
- Most figures are ranges, so the listed numbers do not describe any one machine
- No frame shorter than 5,020 mm in X is listed
- SCM's table gives no axis speed, spindle speed or panel passage
Best For
Frequently Asked Questions
01
SCM describes it as a machining center for drilling, routing and edge treatment for the furniture industry. It carries out all machining on a panel in a single machining center, so the panel comes off ready for assembly.
02
The X working area is listed as 5,020-6,360 mm (197.6-250.4 in) and the Y working area as 1,680-1,830 mm (66.1-72.0 in). SCM prints them as ranges and does not list individual size combinations on the page.
03
SCM's table gives an edge height of 15/84 mm and an edge thickness of 0.5-3.0 mm, with a coils storage capacity of 2÷12. The pressure system changes automatically to suit the edge type being applied.
04
The table lists drilling spindles as 26÷50, electrospindle motor power as 11÷17 kW and tools available as 18÷34. These are ranges across the possible configurations, so ask which figures apply to the machine offered.
