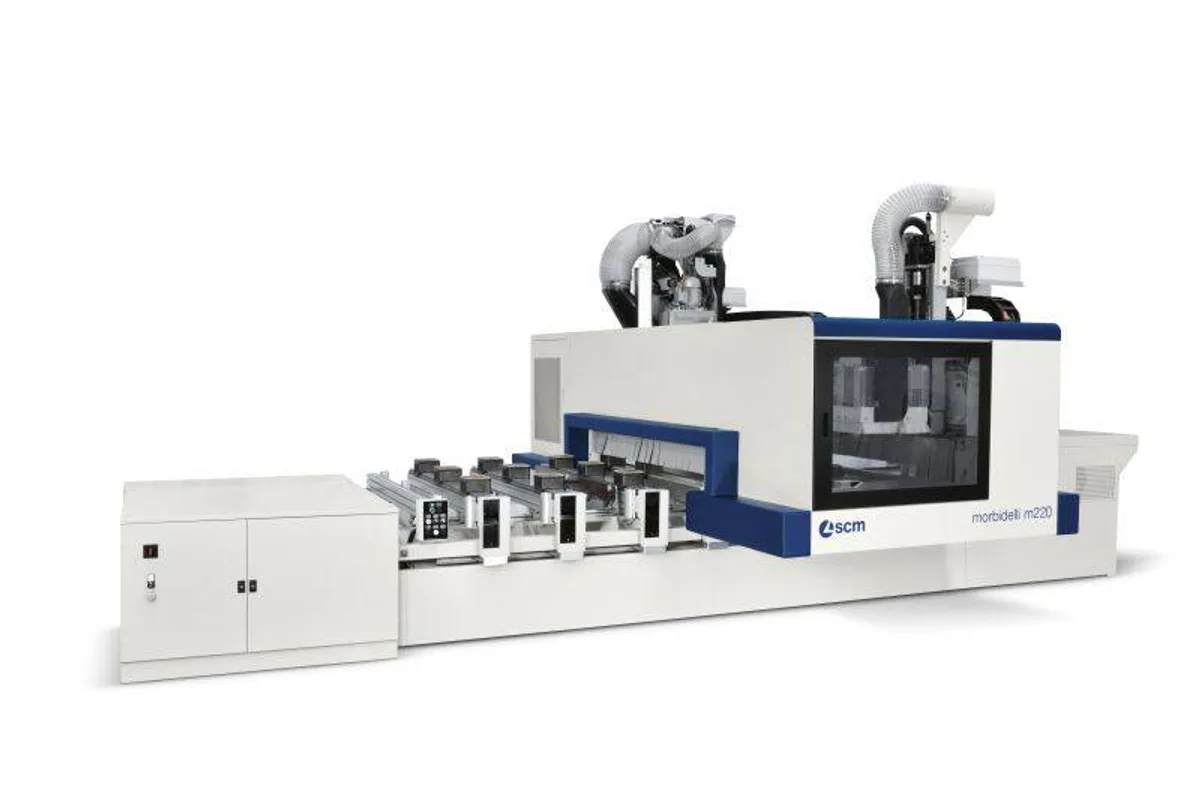

SCM Morbidelli M220
Image: scmgroup.com, SCM
Key Specifications
Tool Capacity
Spindle Power
working areas xy
working area x
working area y
vectorial speed
How much does the SCM Morbidelli M220 cost?
Price estimate
We do not have a price for the SCM Morbidelli M220 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The SCM Morbidelli M220 is a bar-table machining center built around drilling. It carries a double drilling head with up to 34 independent vertical spindles and 22 independent horizontal spindles, and SCM states that the two heads have independent Y axes so they can work on a single panel together or on 2 different panels.
For a cabinet maker that is the reason to choose it. Carcass sides are mostly rows of holes, and two heads drilling at once shorten exactly that part of the cycle. SCM puts the reduction in drilling cycles at 70%, a maker's claim that depends on the hole pattern. The spindles turn at up to 8000 rpm, and 2 integrated blades in X cut grooves without a tool change.
Routing is done by a main unit of up to 15 kW (20.5 hp) at 24000 rpm, with as many as 60 places on the tool changer. The table also lists an auxiliary routing unit of up to 4.5 kW (6 hp) at 18000 rpm and a 0-90° blade unit of up to 2.2 kW (3 hp) at 6000 rpm.
Three lengths are offered, 3110x1620 mm, 3710x1620 mm and 5510x1620 mm, all with a Z axis panel passage of 180 mm (7.1 in). Vectorial speed is 78 m/min in the Pro-Speed version and 56 m/min in Pro-Space, the layout without perimeter protections. The TV FLEXMATIC automatic work table manages a variable number of pods on each bar.
Full Specifications
| Parameter | Value |
|---|---|
| Working Areas Xy | 3110x1620 mm / 3710x1620 mm / 5510x1620 mm |
| Working Area X | 3,110 mm (122.4 in), 3,710 mm (146.1 in), 5,510 mm (216.9 in) |
| Working Area Y | 1,620 mm (63.8 in) |
| Vectorial Speed | 56 m/min (Pro-Space) / 78 m/min (Pro-Speed) |
| Z Axis Panel Passage | 180 mm (7.1 in) |
| Spindle Motor Power | 15 kW (20.5 hp) max. |
| Spindle Speed | 24000 rpm |
| Tool Capacity | 60 places max. (available tools on tool changer) |
| Drilling Vertical Spindles | 34 independent vertical spindles max. |
| Drilling Horizontal Spindles | 22 independent horizontal spindles max. |
| Drilling Rotation Speed Max | 8000 rpm |
| Integrated Blades in X | 2 |
| Blade Unit 0 90 Power | 2.2 kW (3 hp) max. (0-90° blade unit) |
| Blade Unit 0 90 Speed | 6000 rpm max. |
| Auxiliary Routing Unit Power | 4.5 kW (6 hp) max. |
| Auxiliary Routing Unit Speed | 18000 rpm max. |
Specifications sourced from scmgroup.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Double drilling head with up to 34 independent vertical and 22 independent horizontal spindles
- Independent Y axes let the two heads drill one panel together or 2 different panels
- Up to 60 places on the tool changer for the 15 kW (20.5 hp) routing unit
- Auxiliary routing unit of up to 4.5 kW (6 hp) and a 0-90° blade unit of up to 2.2 kW (3 hp)
- TV FLEXMATIC automatic work table positions a variable number of pods per bar
Limitations
- Z axis panel passage is 180 mm (7.1 in), which rules out tall solid wood parts
- One Y depth of 1,620 mm (63.8 in) across all three lengths
- Pro-Space version is limited to 56 m/min against 78 m/min in Pro-Speed
Best For
Frequently Asked Questions
01
It is a double drilling head. The table lists up to 34 independent vertical spindles and 22 independent horizontal spindles at a maximum of 8000 rpm, and SCM states that the heads have independent Y axes for simultaneous machining on a single panel or on 2 different panels.
02
The main routing unit is listed at up to 15 kW (20.5 hp) and 24000 rpm. An auxiliary routing unit of up to 4.5 kW (6 hp) at 18000 rpm is also in the table, along with a 0-90° blade unit of up to 2.2 kW (3 hp) at 6000 rpm.
03
SCM lists three X-Y working areas: 3110x1620 mm, 3710x1620 mm and 5510x1620 mm. The Z axis panel passage is 180 mm (7.1 in) on all of them.
04
Two versions with different vectorial speeds: 56 m/min for Pro-Space and 78 m/min for Pro-Speed. SCM describes Pro-Space as a solution that saves factory space, with no perimetral protections so the work table can be reached from all sides of the machine.
