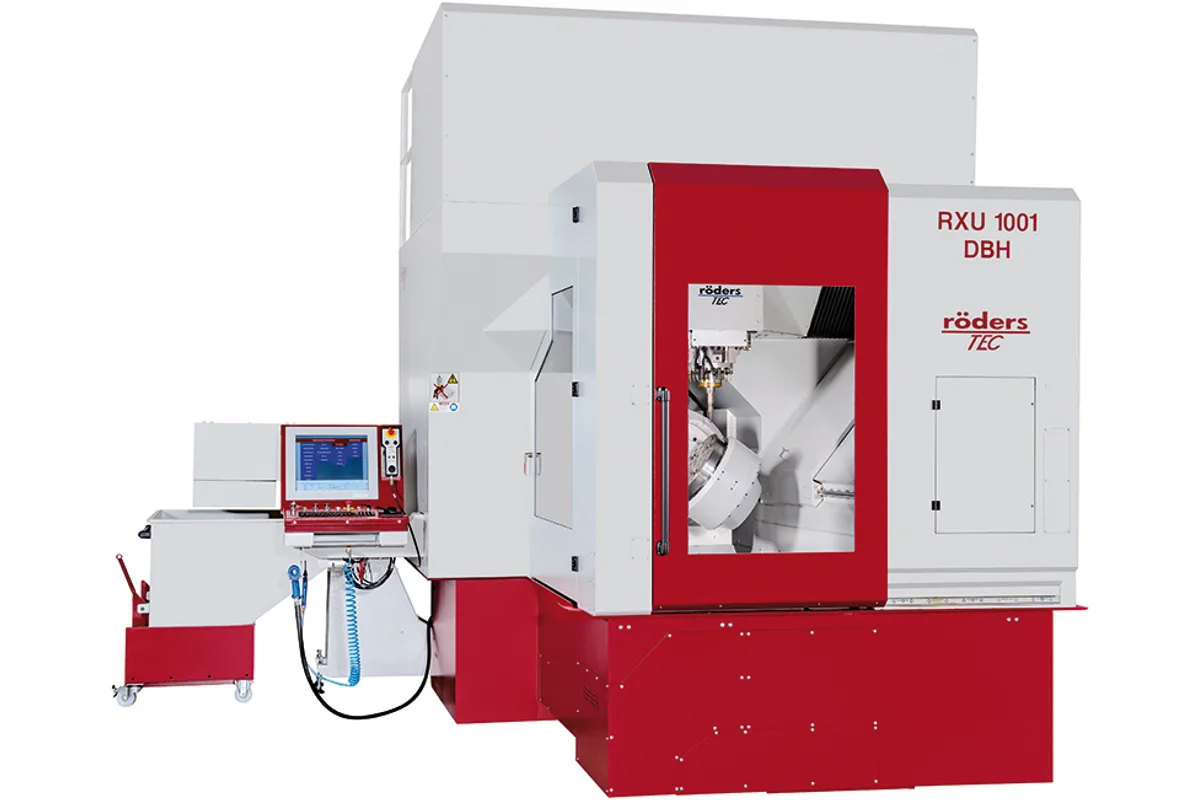

Röders RXU1001DBH
Image: roeders.de, Röders
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
machining range
rotation range
How much does the Röders RXU1001DBH cost?
Price estimate
We do not have a price for the Röders RXU1001DBH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Röders RXU1001DBH is a special-purpose version of the RXU1001DSH, built with a special C-axis for machining BLING wheels on both sides in a single set-up. Its machining range of 800 mm x 855 mm x 500 mm (31.5 x 33.7 x 19.7 in) is the same as the standard 5-axis machine. The rotary-swivel unit is not.
Röders gives the A-axis a swivel range from +45 degrees to -195 degrees. Being able to turn the wheel right over is what allows both faces to be cut without re-clamping, and the maker points to surface finishes without any steps as the result. To keep every pocket reachable in any position of the axes, the second support of the C-axis has been left out on purpose, and the A-axis has been reinforced to make up for it.
The table is 355 mm round with an integrated 4-fold quick clamping system; other tables are on request. Workpiece weight is limited to 300 kg (661 lb), well under the 800 kg of the RXU1001DSH, which follows from the one-sided support.
The standard spindle differs from the rest of the RXU line too. It is a 15 kW (20.1 hp) unit with an HSK E50 interface and a maximum tool diameter of 20 mm, a better match for the slender tools that blade channels need than the HSK A63 standard of the series, although an HSK A63 spindle with 102 Nm (S1) is the largest offered. The changer has 24 places, optionally 40 or more. The machine weighs about 21.0 t and needs W 4,120 mm x L 4,910 mm x H 3,600 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Range | 800 mm x 855 mm x 500 mm (31.5 x 33.7 x 19.7 in) |
| Rotation Range | Almost unlimited |
| Table Size | 355 mm round with integrated 4-fold quick clamping system, others on request |
| Max Workpiece Weight | 300 kg (661 lb) |
| Feed Rate | 0–60,000 mm/min (0–2,362 ipm) |
| Spindle Motor Power | 15 kW (20.1 hp) |
| Spindle Taper | HSK E50 |
| Max Tool Diameter (full magazine) | 20 mm (0.79 in) |
| Tool Capacity | 24 places, optional 40 or more places (chain changer – can be loaded during machining) |
| Tool Measurement | Integrated measuring laser |
| Chip Disposal | With 2 screws into chip box behind the machine or with additional chip conveyor |
| Machine Weight | ~21.0 t (~46,296 lb) |
| Required Space | W 4,120 mm x L 4,910 mm x H 3,600 mm (162.2 x 193.3 x 141.7 in) |
Specifications sourced from roeders.de — verified 2026-10-05
Strengths & Limitations
Strengths
- A-axis swivel range from +45 degrees to -195 degrees, so BLING wheels are machined on both sides in a single set-up
- No second C-axis support, leaving access to pockets in any position of the axes
- 355 mm round table with an integrated 4-fold quick clamping system
- 15 kW (20.1 hp) HSK E50 standard spindle; HSK A63 with 102 Nm (S1) as the largest option
- Feeds up to 60,000 mm/min with direct drives
Limitations
- 300 kg (661 lb) workpiece limit, against 800 kg on the RXU1001DSH
- A machine built around one family of parts
- Standard tools limited to 20 mm in diameter
- About 21.0 t and H 3,600 mm for a 355 mm table
Best For
Frequently Asked Questions
01
Röders describes it as an RXU1001DSH with a special C-axis for machining BLING wheels on both sides in a single set-up. The big swivel range of the A-axis is what makes that possible.
02
Röders states a swivel range of the A-axis from +45 degrees to -195 degrees, with others on request. The rotation range is listed as almost unlimited.
03
The RXU1001DBH takes 300 kg (661 lb), while the RXU1001DSH takes 800 kg. Röders has deliberately omitted the second support for the C-axis to allow access to pockets in any position of the axes, and has reinforced the A-axis accordingly.
04
The standard milling spindle is listed with 15 kW (20.1 hp), an HSK E50 interface and a maximum tool diameter of 20 mm. Other spindles are on request, up to an HSK A63 spindle with 102 Nm (S1).
