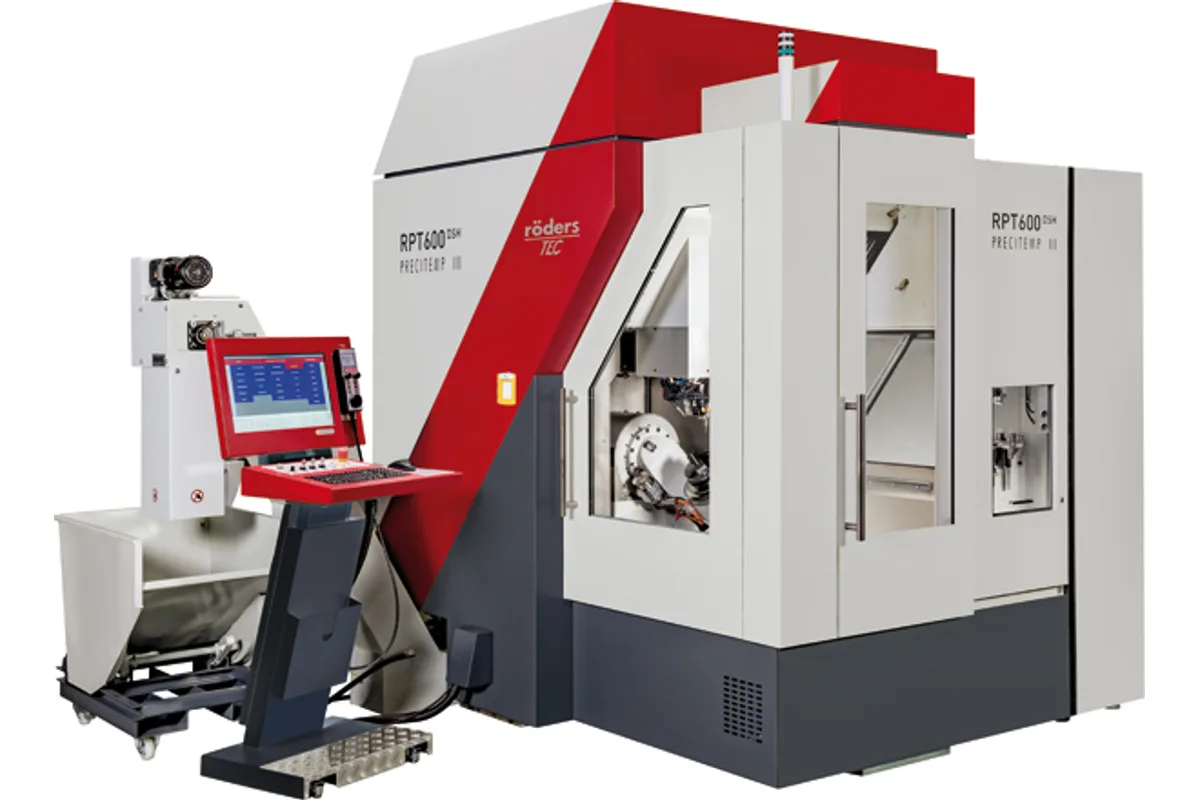

Röders RPT600DSH
Image: roeders.de, Röders
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
machining range
How much does the Röders RPT600DSH cost?
Price estimate
We do not have a price for the Röders RPT600DSH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Röders builds the RPT600DSH with one of two rotary-swivel units, and the choice between them shapes the machine. One has a 250 mm round table and takes 60 kg (132 lb). The other has a 350 mm round table and takes 100 kg (220 lb). The machining range is 500 mm x 530 mm x 300 mm (19.7 x 20.9 x 11.8 in) with either.
The small table is the more offset one. Röders explains that with it the workpiece sits in the centre of the swivel and rotary axes, so the linear axes make substantially fewer compensating movements during 5-axis machining. Shorter compensating moves mean shorter cycle times and less accumulated error. A shop that mostly machines small, high-accuracy parts in simultaneous 5-axis mode should take that seriously, even though the larger table looks more flexible on paper.
Clamping follows the table. The 250 mm unit is listed with Erowa ITS148 PowerChuck, System 3R Magnum or Parotec Power Grip 160. The 350 mm unit is listed with Erowa UPC. Spindle-nose-to-table distance is 405 mm with the small table and 385 mm with the large one. Swivelling range is +/- 115 degrees in both cases.
Milling, grinding and measuring are all possible. The standard spindle is 42,000 rpm with 15 kW (20.1 hp) on HSK E40 and tools up to 16 mm, with spindles up to HSK A63 on request. 42 or 87 tools fit the changer. The machine weighs about 9.3 t and needs W 3,000 mm x L 2,700 mm x H 2,870 mm (113.0 in).
Full Specifications
| Parameter | Value |
|---|---|
| Machining Range | 500 mm x 530 mm x 300 mm (19.7 x 20.9 x 11.8 in) |
| Swivelling Range | +/- 115 degrees |
| Rotation Range | Almost unlimited |
| Table Size | 250 mm (9.8 in) round; 350 mm (13.8 in) round |
| Distance Spindle Nose to Table | 405 mm (15.9 in) (250 mm table); 385 mm (15.2 in) (350 mm table) |
| Clamping Unit | Erowa ITS148 PowerChuck / System 3R Magnum / Parotec Power Grip 160 (250 mm table); Erowa UPC (350 mm table) |
| Max Workpiece Weight | 60 kg (132 lb) (250 mm table); 100 kg (220 lb) (350 mm table) |
| Feed Rate | 0–60,000 mm/min (0–2,362 ipm) |
| Max Spindle Speed | 42,000 rpm (standard spindle; others up to HSK A63 on request) |
| Spindle Motor Power | 15 kW (20.1 hp) |
| Spindle Taper | HSK E40 |
| Max Tool Diameter (full magazine) | 16 mm (0.63 in) |
| Tool Capacity | 42 or 87 places for HSK E40, optional larger changer available |
| Tool Measurement | Integrated measuring laser |
| Chip Disposal | With 2 screws into chip box behind the machine or with additional chip conveyor |
| Machine Weight | ~9.3 t (~20,503 lb) |
| Required Space | W 3,000 mm x L 2,700 mm x H 2,870 mm (118.1 x 106.3 x 113.0 in) |
Specifications sourced from roeders.de — verified 2026-10-05
Strengths & Limitations
Strengths
- Two rotary-swivel units: 250 mm table for 60 kg or 350 mm table for 100 kg
- Small-table version places the workpiece in the centre of the swivel and rotary axes
- Milling, grinding and measuring possible on one machine
- 42,000 rpm, 15 kW (20.1 hp) HSK E40 spindle, with spindles up to HSK A63 on request
- Two-sided support of the C-axis and high-resolution optical encoders in all axes
Limitations
- Workpiece weight is 60 kg or 100 kg, depending on the table
- The 350 mm table is listed with Erowa UPC only
- Spindle-nose-to-table distance falls to 385 mm with the large table
- The table unit has to be chosen at order; the two versions suit different work
Best For
Frequently Asked Questions
01
The 250 mm table takes 60 kg and positions the workpiece in the centre of the swivel and rotary axes, which Röders says reduces compensating movements of the linear axes. The 350 mm table takes 100 kg and is listed with an Erowa UPC clamping unit.
02
500 mm x 530 mm x 300 mm (19.7 x 20.9 x 11.8 in) with either table. The swivelling range is +/- 115 degrees and the rotation range is almost unlimited. Feed is 0–60,000 mm/min.
03
With the 250 mm table: Erowa ITS148 PowerChuck, System 3R Magnum or Parotec Power Grip 160. With the 350 mm table: Erowa UPC. Röders also states that various chucks or tables with T-slots can be integrated on the 5-axis RPT machines.
04
The RPT450DS has a machining range of 370 mm x 490 mm x 280 mm and takes 30 kg on its 250 mm table. The RPT600DSH has 500 mm x 530 mm x 300 mm, takes 60 kg or 100 kg, and can be fitted with spindles up to HSK A63.
