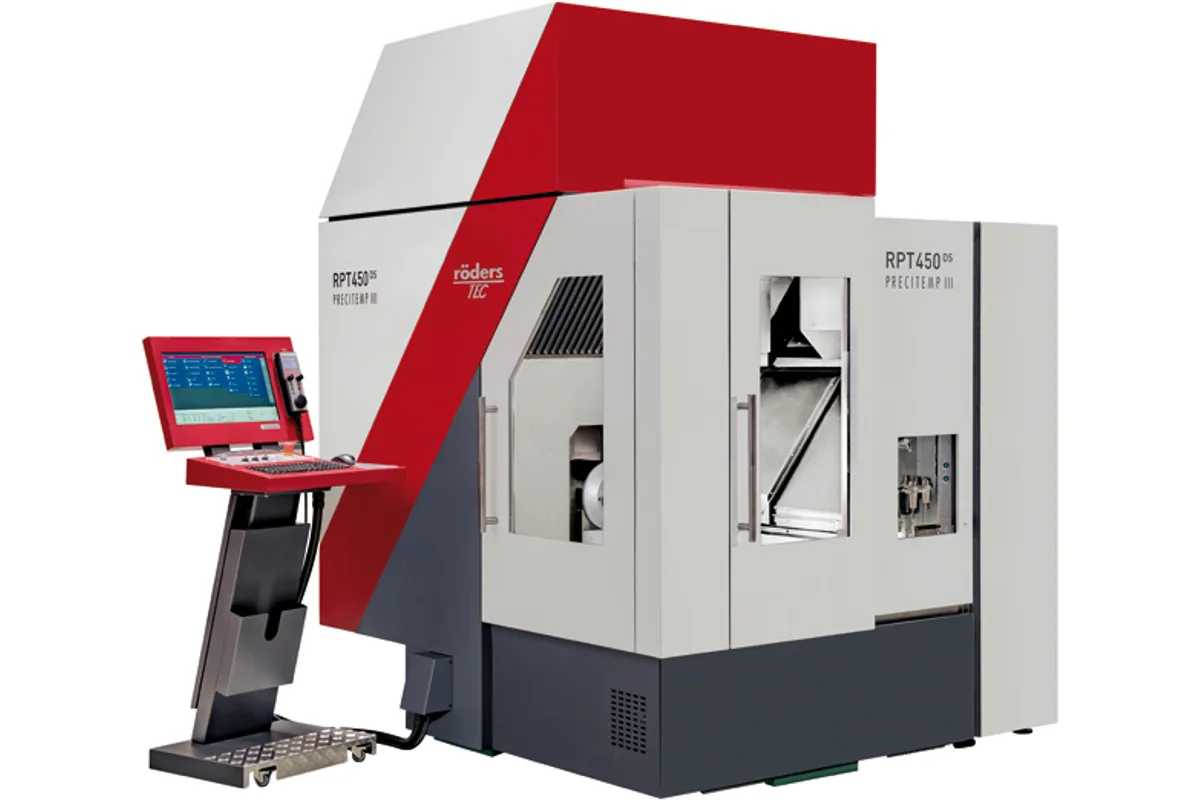

Röders RPT450DS
Image: roeders.de, Röders
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
machining range
How much does the Röders RPT450DS cost?
Price estimate
We do not have a price for the Röders RPT450DS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For 5-axis jig grinding and milling of small parts, Röders offers the RPT450DS: a machining range of 370 mm x 490 mm x 280 mm (14.6 x 19.3 x 11.0 in), a 250 mm (9.8 in) round table and a workpiece limit of 30 kg (66 lb).
Röders says a powerful chuck for vibration-free machining is integrated for 5-axis work. The clamping units listed are Erowa ITS148 PowerChuck, System 3R Magnum and Parotec Power Grip 160, all pallet systems for small workpieces, so the machine is set up to take parts that arrive already clamped and measured. Swivelling range is +/- 115 degrees and rotation is almost unlimited. The distance from spindle nose to table is 335 mm (13.2 in).
On the 5-axis RPT machines the torque motors and axis bearings have improved temperature control, the C-axis is supported on two sides, and all axes carry high-resolution optical encoders. Any auxiliary equipment, such as for grinding, is mounted at the A-axis, where it travels with the workpiece.
Spindle and changer are shared with the 3-axis RPT450: 42,000 rpm, 15 kW (20.1 hp), HSK E40, tools up to 16 mm, and 31 or 75 tool places. Both versions weigh about 8.0 t and need W 2,835 mm x L 2,700 mm x H 2,720 mm. One screw carries chips to a box behind the machine; a conveyor or a chip tray can be had instead. Compared with the RXP500DSC, which has the same 30 kg limit, this machine feeds faster, at up to 60,000 mm/min.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Range | 370 mm x 490 mm x 280 mm (14.6 x 19.3 x 11.0 in) |
| Swivelling Range | +/- 115 degrees |
| Rotation Range | Almost unlimited |
| Table Size | 250 mm (9.8 in) round |
| Distance Spindle Nose to Table | 335 mm (13.2 in) |
| Clamping Unit | Erowa ITS148 PowerChuck / System 3R Magnum / Parotec Power Grip 160 |
| Max Workpiece Weight | 30 kg (66 lb) |
| Feed Rate | 0–60,000 mm/min (0–2,362 ipm) |
| Max Spindle Speed | 42,000 rpm (standard spindle; others on request) |
| Spindle Motor Power | 15 kW (20.1 hp) |
| Spindle Taper | HSK E40 |
| Max Tool Diameter (full magazine) | 16 mm (0.63 in) |
| Tool Capacity | 31 or 75 places for HSK E40, optional larger changer available |
| Tool Measurement | Integrated measuring laser |
| Chip Disposal | With 1 screws into chip box behind the machine or with additional chip conveyor or chip tray |
| Machine Weight | ~8.0 t (~17,637 lb) |
| Required Space | W 2,835 mm x L 2,700 mm x H 2,720 mm (111.6 x 106.3 x 107.1 in) |
Specifications sourced from roeders.de — verified 2026-10-05
Strengths & Limitations
Strengths
- 5-axis milling, grinding and measuring in one machine
- +/- 115 degrees swivelling range on a 250 mm (9.8 in) round table
- Integrated chuck; Erowa ITS148 PowerChuck, System 3R Magnum or Parotec Power Grip 160
- 42,000 rpm HSK E40 spindle with 15 kW (20.1 hp)
- Feeds up to 60,000 mm/min
Limitations
- 30 kg (66 lb) workpiece limit
- The first figure of the machining range is 370 mm, against 470 mm on the 3-axis RPT450
- Largest tool diameter of 16 mm
- About 8.0 t for a machine that takes 30 kg parts
Best For
Frequently Asked Questions
01
The technical data list Erowa ITS148 PowerChuck, System 3R Magnum and Parotec Power Grip 160. Röders states that a powerful chuck for vibration-free machining is integrated for 5-axis machining.
02
Up to 30 kg (66 lb) on a 250 mm round table, in a machining range of 370 mm x 490 mm x 280 mm (14.6 x 19.3 x 11.0 in). The maximum distance between spindle nose and table is 335 mm (13.2 in).
03
At the A-axis. Röders states that in the 5-axis RPT450DS any auxiliary equipment, such as for grinding, is mounted there, whereas on the 3-axis RPT450 it is positioned next to the machine table.
04
The required space is W 2,835 mm x L 2,700 mm x H 2,720 mm (111.6 x 106.3 x 107.1 in) and the machine weighs about 8.0 t. In the RPT series the electrical cabinet stands alone next to the machine.
