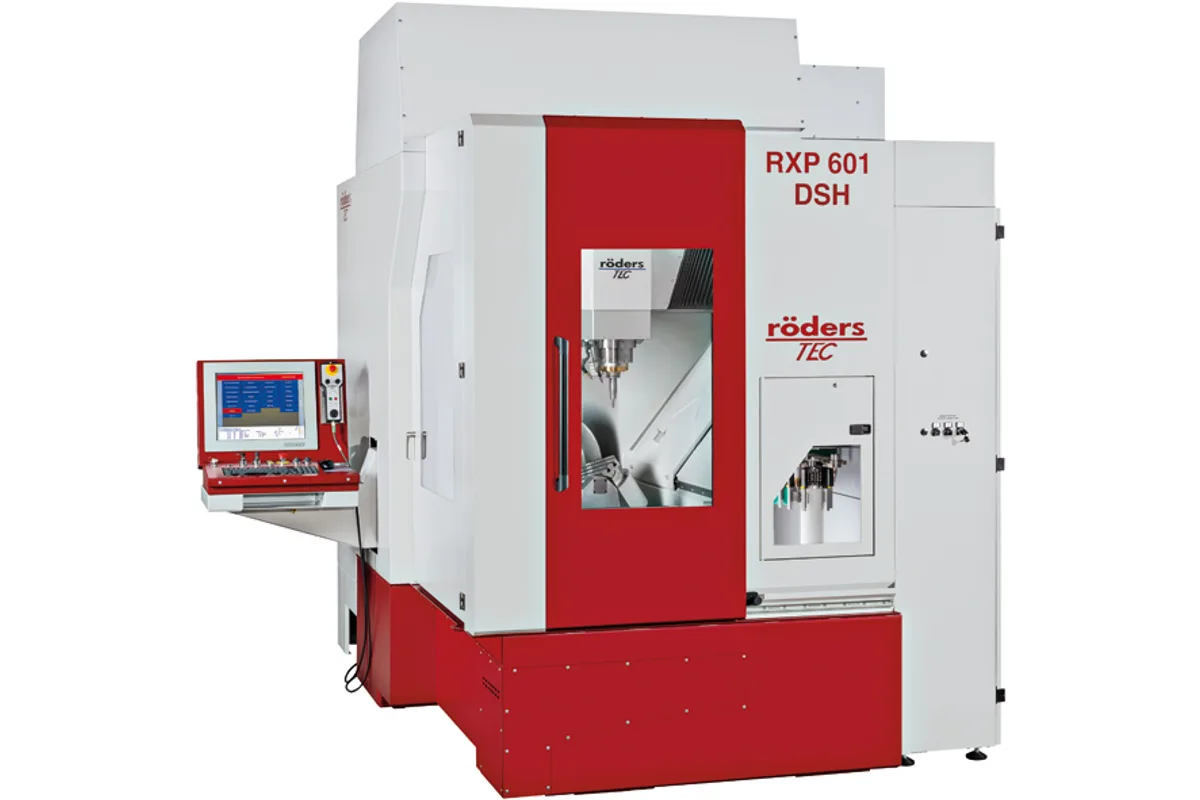

Röders RXP601DSH
Image: roeders.de, Röders
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
machining range
How much does the Röders RXP601DSH cost?
Price estimate
We do not have a price for the Röders RXP601DSH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a 200 kg (441 lb) workpiece limit and a machining range of 540 mm x 635 mm x 400 mm (21.3 x 25.0 x 15.7 in), the Röders RXP601DSH is where 5-axis work in the RXP series moves from small parts to real mould inserts. It is the 5-axis counterpart of the RXP801 and shares that machine's spindle, tool changer and feed range.
Four tables are listed: 340 mm round, 340 mm square, 400 mm round with two flattened sides, or 400 mm round. Röders shows the rotary-swivel unit with an EROWA UPC chuck, so pallets can move between this machine and other equipment without re-clamping. The swivelling range is +/-115 degrees, rotation is almost unlimited, and there is 537.5 mm (21.2 in) between spindle nose and table.
The C-axis is supported on both sides. Röders says this keeps accuracy during long machining operations and with varying workpiece weights, which is the right concern on a unit that may carry a light electrode one hour and a 200 kg insert the next. Optical encoders sit in the rotary axes and positioning accuracies of 2 arcseconds are stated for the series.
Standard is a 36,000 rpm spindle with 15 kW (20.1 hp) on HSK E50 and tools up to 20 mm; HSK A63 is the largest interface offered. Feeds go to 60,000 mm/min. The changer holds 36 tools for HSK E50, or 76 or more with the optional chain. The 5-axis machine weighs about 10.2 t and is taller than its 3-axis sibling, at approx. 3,070 / 3,210 mm depending on spindle type.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Range | 540 mm x 635 mm x 400 mm (21.3 x 25.0 x 15.7 in) |
| Swivelling Range | +/-115 degrees |
| Rotation Range | Almost unlimited |
| Table Size | 340 mm round or 340 mm square, 400 mm round with two flattened sides or 400 mm round |
| Distance Spindle Nose to Table | 537.5 mm (21.2 in) |
| Max Workpiece Weight | 200 kg (441 lb) |
| Feed Rate | 0–60,000 mm/min (0–2,362 ipm) |
| Max Spindle Speed | 36,000 rpm (standard spindle; others on request) |
| Spindle Motor Power | 15 kW (20.1 hp) |
| Spindle Taper | HSK E50 |
| Max Tool Diameter (full magazine) | 20 mm (0.79 in) |
| Tool Capacity | 36 for HSK E50, optional 76 or more places (chain changer – can be loaded during machining) |
| Tool Measurement | Integrated measuring laser |
| Chip Disposal | With 2 screws into chip box behind the machine, additional chip conveyor optional |
| Machine Weight | ~10.2 t (~22,487 lb) |
| Required Space | W 2,950 mm x L 2,950 mm (depending on configuration) x H approx. 3,070 / 3,210 mm (depending on spindle type) |
Specifications sourced from roeders.de — verified 2026-10-05
Strengths & Limitations
Strengths
- 200 kg (441 lb) on the rotary-swivel unit, with +/-115 degrees swivel and almost unlimited rotation
- Choice of 340 mm round or square and 400 mm round tables; shown with an EROWA UPC chuck
- 36,000 rpm, 15 kW (20.1 hp) HSK E50 spindle as standard, HSK A63 as the largest option
- Feeds up to 60,000 mm/min
- Two-sided C-axis support and optical encoders in the rotary axes (2 arcseconds positioning accuracy stated)
Limitations
- Height of approx. 3,070 / 3,210 mm, depending on spindle type
- Standard tool diameter stops at 20 mm
- The first figure of the machining range is 540 mm, against 800 mm on the RXP801
- About 10.2 t, so the floor has to be checked for a machine of this footprint
Best For
Frequently Asked Questions
01
The technical data list 340 mm round or 340 mm square, and 400 mm round with two flattened sides or 400 mm round. Röders pictures the rotary-swivel unit with an EROWA UPC chuck.
02
200 kg (441 lb). The 3-axis RXP801 on the same product page takes 800 kg, and the larger RXP950DSH takes 800 kg on its rotary-swivel unit.
03
The machining range is 540 mm x 635 mm x 400 mm (21.3 x 25.0 x 15.7 in). The swivelling range is +/-115 degrees and the rotation range is almost unlimited. Feed is listed as 0–60,000 mm/min.
04
The standard spindle has an HSK E50 interface, 36,000 rpm and 15 kW (20.1 hp), with a maximum tool diameter of 20 mm. Other spindles are available on request; the largest listed has an HSK A63 interface.
