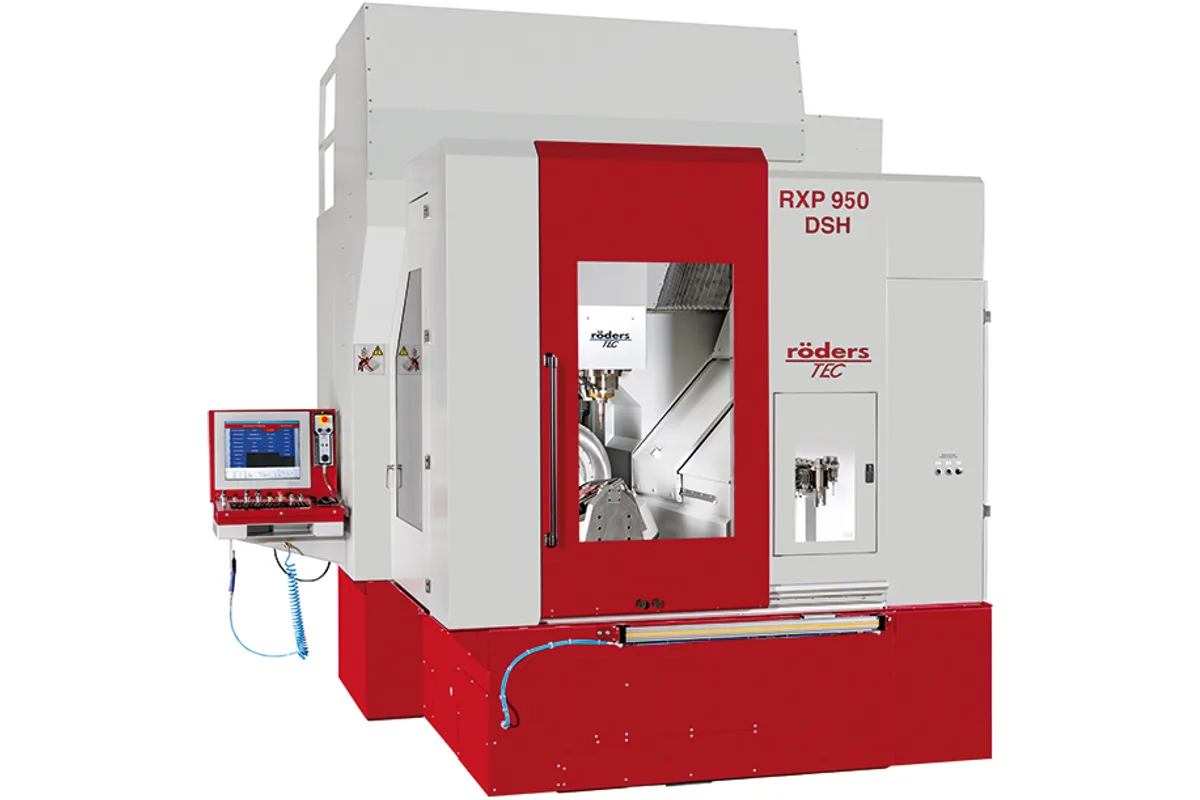

Röders RXP950DSH
Image: roeders.de, Röders
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
machining range
How much does the Röders RXP950DSH cost?
Price estimate
We do not have a price for the Röders RXP950DSH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
800 kg on a 5-axis table is the headline figure of the Röders RXP950DSH. The rotary-swivel unit takes workpieces up to 800 kg (1,764 lb), four times the limit of the RXP601DSH, inside a machining range of 600 mm x 905 mm x 500 mm (23.6 x 35.6 x 19.7 in).
Tables come in four forms: 400 mm round, 400 mm square, 600 mm round with two flattened sides, or 600 mm round. Röders shows the unit with an EROWA UPC chuck and adds that larger tables and chucks are possible. Swivelling is +/-115 degrees with almost unlimited rotation, and the distance from spindle nose to table is 671 mm (26.4 in), which leaves room for a tall insert and a long tool at the same time.
The 905 mm figure in the machining range is what makes the layout work. When the table swivels a large part towards the horizontal, the part sweeps a long way across the machine, and that travel is what lets the spindle still reach its far edge.
The technical data give one spindle for this model: 36,000 rpm, 15 kW (20.1 hp), HSK E50, maximum tool diameter 20 mm. The page also names HSK A63 as the largest spindle interface. The tool changer has 40 places for HSK E50, or 86 or more with the optional chain. Feeds reach 60,000 mm/min. At about 15.5 t the machine needs W 3,350 mm x L 3,250 mm, depending on configuration, and H 3,500 mm (137.8 in) of headroom.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Range | 600 mm x 905 mm x 500 mm (23.6 x 35.6 x 19.7 in) |
| Swivelling Range | +/-115 degrees |
| Rotation Range | Almost unlimited |
| Table Size | 400 mm round or 400 mm square, 600 mm round with two flattened sides or 600 mm round |
| Distance Spindle Nose to Table | 671 mm (26.4 in) |
| Max Workpiece Weight | 800 kg (1,764 lb) |
| Feed Rate | 0–60,000 mm/min (0–2,362 ipm) |
| Max Spindle Speed | 36,000 rpm (standard spindle) |
| Spindle Motor Power | 15 kW (20.1 hp) |
| Spindle Taper | HSK E50 |
| Max Tool Diameter (full magazine) | 20 mm (0.79 in) |
| Tool Capacity | 40 for HSK E50, optional 86 or more places (chain changer – can be loaded during machining) |
| Tool Measurement | Integrated measuring laser |
| Chip Disposal | With 2 screws into chip box behind the machine, additional chip conveyor optional |
| Machine Weight | ~15.5 t (~34,171 lb) |
| Required Space | W 3,350 mm x L 3,250 mm (depending on configuration) x H 3,500 mm (131.9 x 128.0 x 137.8 in) |
Specifications sourced from roeders.de — verified 2026-10-05
Strengths & Limitations
Strengths
- 800 kg (1,764 lb) workpiece weight on the rotary-swivel unit
- 600 mm x 905 mm x 500 mm (23.6 x 35.6 x 19.7 in) machining range with 671 mm (26.4 in) under the spindle nose
- Tables of 400 mm or 600 mm, round or square; larger tables and chucks possible
- +/-115 degrees swivel, almost unlimited rotation, C-axis supported on both sides
- 40 tool places, optionally 86 or more, with an integrated measuring laser
Limitations
- H 3,500 mm (137.8 in) of required height
- The listed spindle is limited to tools of 20 mm diameter
- The first figure of the machining range falls to 600 mm, from 950 mm on the 3-axis RXP950
- The optional chain changer starts at 86 places, fewer than the 94 of the RXP950
Best For
Frequently Asked Questions
01
Workpieces up to 800 kg (1,764 lb). The listed tables are 400 mm round or square and 600 mm round, with or without two flattened sides, and Röders notes that larger tables and chucks are possible.
02
Both are 5-axis RXP machines with the same standard spindle. The RXP601DSH has a machining range of 540 mm x 635 mm x 400 mm and a 200 kg limit. The RXP950DSH offers 600 mm x 905 mm x 500 mm and 800 kg.
03
Swivelling range +/-115 degrees, rotation range almost unlimited. Röders states positioning accuracies of 2 arcseconds for the rotary axes of the 5-axis RXP machines, which use optical encoders.
04
40 places for HSK E50 as standard. A chain changer with 86 or more places is optional and can be loaded during machining. An integrated measuring laser is included in the tool changer row.
