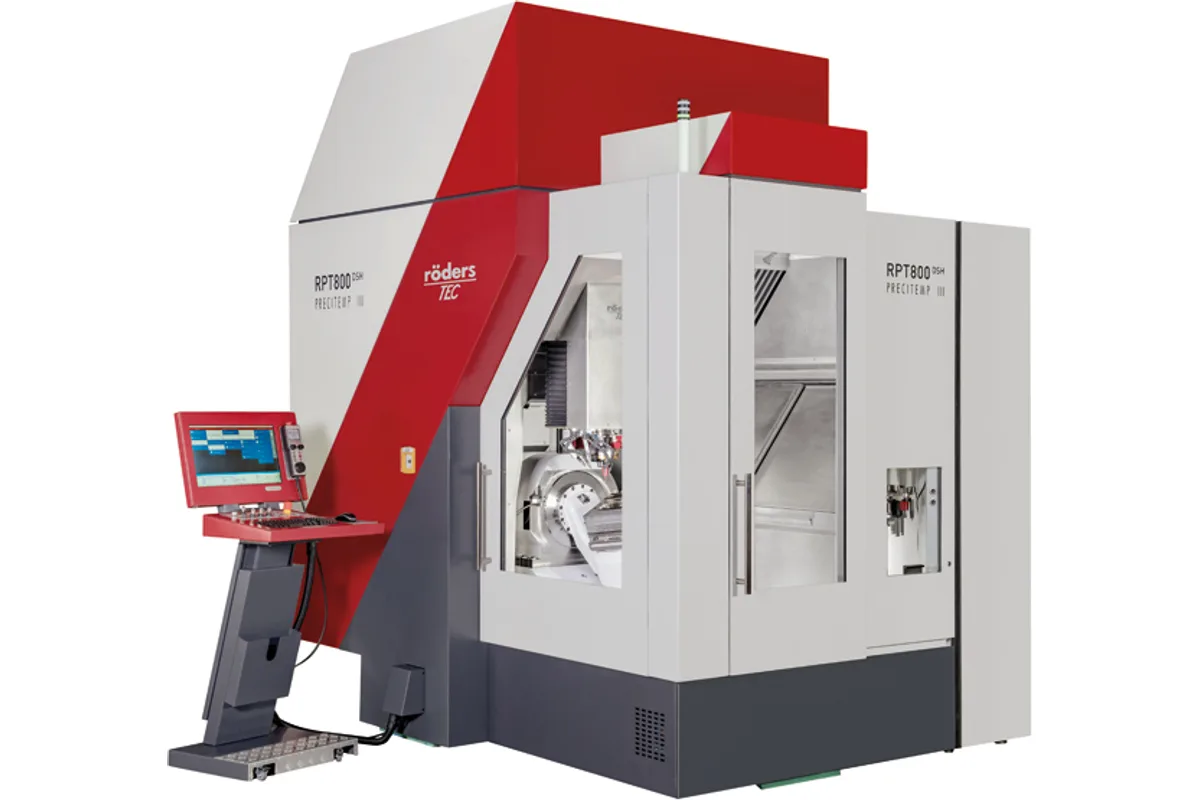

Röders RPT800DSH
Image: roeders.de, Röders
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
machining range
How much does the Röders RPT800DSH cost?
Price estimate
We do not have a price for the Röders RPT800DSH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A long Z-axis and a wide choice of pallet chucks define the Röders RPT800DSH, the largest 5-axis machine of the RPT series. Its machining range is 560 mm x 635 mm x 500 mm (22.0 x 25.0 x 19.7 in), and it carries workpieces up to 200 kg (441 lb) on tables of 350 mm or 400 mm, round or square.
Röders notes that besides the long Z range the machine offers a relatively large maximum diameter for workpieces. It also explains how the unit is laid out: even a workpiece clamped with a pallet on a chuck, such as EROWA UPC, sits close to the swivel axis. That reduces the compensating movements of the linear axes in 5-axis machining. A part raised on a pallet and chuck normally ends up well above the swivel axis, so this is a design decision aimed squarely at automated, palletised work.
Six clamping units are listed, more than on any other RPT model: Erowa UPC, Erowa ITS148 PowerChuck, Erowa ProductionChuck 210, Erowa MTS, System 3R Dynafix and Parotec Power-Grip 160. The swivelling range is +/- 115 degrees and there is 637 mm (25.1 in) between spindle nose and table.
The spindle is 36,000 rpm with 15 kW (20.1 hp) on HSK E50, tools up to 20 mm, with HSK A63 as the largest option. 40 or 84 tools are held. The machine weighs about 12.5 t and needs W 3,220 mm x L 3,250 mm x H 3,410 mm (134.3 in). Milling, grinding and measuring are all listed, and the extra-long Z stroke is described as suitable for deep drilling.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Range | 560 mm x 635 mm x 500 mm (22.0 x 25.0 x 19.7 in) |
| Swivelling Range | +/- 115 degrees |
| Rotation Range | Almost unlimited |
| Table Size | 350 mm / 400 mm round or square |
| Distance Spindle Nose to Table | 637 mm (25.1 in) |
| Clamping Unit | Erowa UPC, Erowa ITS148 PowerChuck, Erowa ProductionChuck 210, Erowa MTS, System 3R Dynafix, Parotec Power-Grip 160 |
| Max Workpiece Weight | 200 kg (441 lb) |
| Feed Rate | 0–60,000 mm/min (0–2,362 ipm) |
| Max Spindle Speed | 36,000 rpm (standard spindle; others up to HSK A63 on request) |
| Spindle Motor Power | 15 kW (20.1 hp) |
| Spindle Taper | HSK E50 |
| Max Tool Diameter (full magazine) | 20 mm (0.79 in) |
| Tool Capacity | 40 or 84 places for HSK E50, optional larger changer available |
| Tool Measurement | Integrated measuring laser |
| Chip Disposal | With 2 screws into chip box behind the machine or with additional chip conveyor |
| Machine Weight | ~12.5 t (~27,557 lb) |
| Required Space | W 3,220 mm x L 3,250 mm x H 3,410 mm (126.8 x 128.0 x 134.3 in) |
Specifications sourced from roeders.de — verified 2026-10-05
Strengths & Limitations
Strengths
- 560 mm x 635 mm x 500 mm (22.0 x 25.0 x 19.7 in) machining range with an extra-long Z-axis stroke
- Palletised workpieces sit close to the swivel axis, reducing compensating movements
- Six listed clamping units, including Erowa UPC, Erowa MTS and System 3R Dynafix
- 200 kg (441 lb) workpiece weight with +/- 115 degrees swivel
- Milling, grinding, measuring and deep drilling on one machine
Limitations
- About 12.5 t and H 3,410 mm (134.3 in) of height
- 200 kg limit, against 800 kg on the 3-axis RPT800
- Standard tool diameter limited to 20 mm
- Table sizes stop at 400 mm
Best For
Frequently Asked Questions
01
The technical data list Erowa UPC, Erowa ITS148 PowerChuck, Erowa ProductionChuck 210, Erowa MTS, System 3R Dynafix and Parotec Power-Grip 160. Table sizes are 350 mm or 400 mm, round or square.
02
Röders states that in the RPT800DSH even workpieces clamped with a pallet on a chuck are positioned close to the swivel axis, which reduces the compensating movements of the linear axes during 5-axis machining. It gives shorter machining times and improved precision as the result.
03
Workpieces up to 200 kg (441 lb) in a machining range of 560 mm x 635 mm x 500 mm (22.0 x 25.0 x 19.7 in). The maximum distance between spindle nose and table is 637 mm (25.1 in).
04
Both take 200 kg and use a 36,000 rpm HSK E50 standard spindle. The RXP601DSH has a machining range of 540 mm x 635 mm x 400 mm and weighs about 10.2 t. The RPT800DSH has 560 mm x 635 mm x 500 mm, weighs about 12.5 t and is listed for grinding and measuring.
