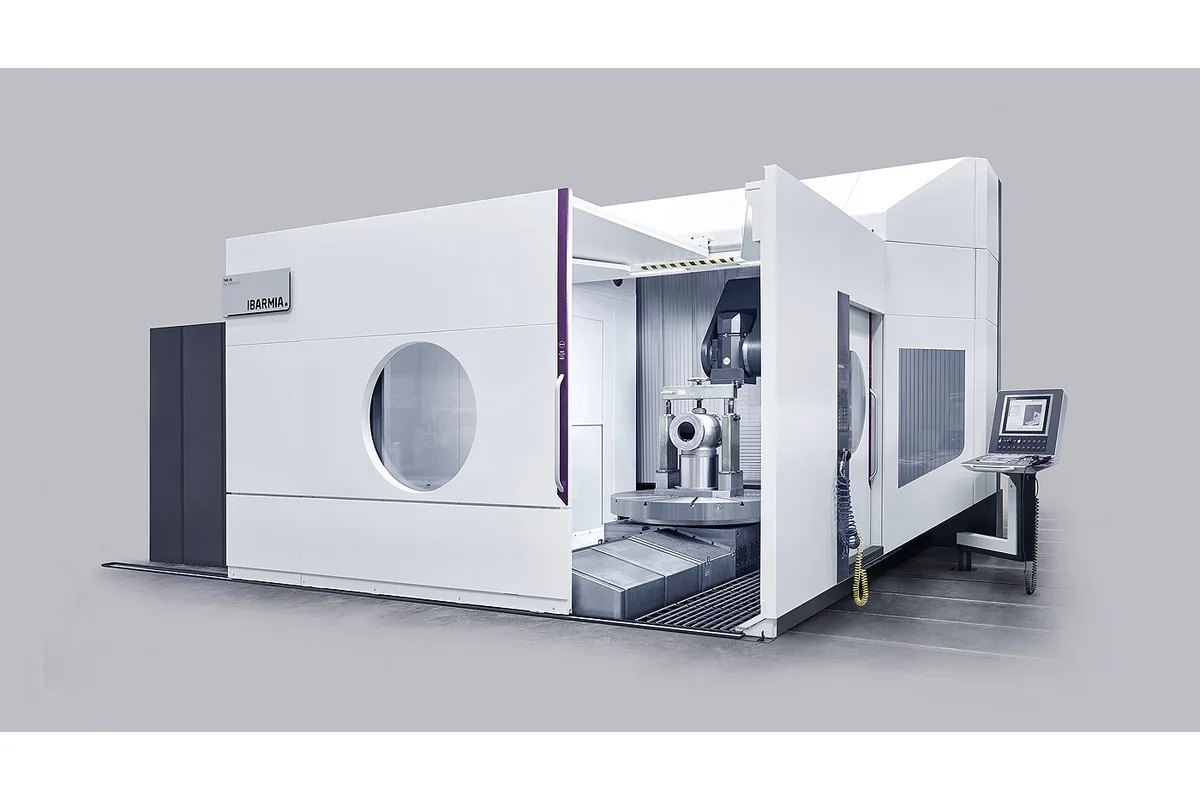

Ibarmia T30
Image: ibarmia.com, Ibarmia
Key Specifications
Tool Capacity
Spindle Power
max swing diameter
max part height
table size extreme
b axis range
How much does the Ibarmia T30 cost?
Price estimate
We do not have a price for the Ibarmia T30 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ibarmia T30 is a large T-series 5-axis machining center with a rectangular table on its milling version: the T Extreme lists 1,250 x 1,600 mm (49.2 x 63.0 in). The maximum swing diameter is 3,000 mm (118.1 in) and the maximum part height 1,950 mm (76.8 in).
A table that is longer one way than the other is what distinguishes this size. The T22 has a square 1,250 x 1,250 mm (49.2 x 49.2 in) table and the T36 a square 1,600 x 1,600 mm (63.0 x 63.0 in) one. The T30 borrows a side from each, which favours oblong workpieces and fixture plates: frames, beams with machined ends, or two smaller parts set side by side along the 1,600 mm direction.
For turning there is the T Multiprocess version, listed for 5-axis turning and milling. The table gives no rotary table diameter for it at this size, so request that figure if round parts are the main work. Spindle power goes up to 84 kW (112.6 hp) and tool magazines up to 360 positions. Head options are the THC, with a B axis of -15º/+195º, and the THR, with an A axis of -45º/+135º.
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing Diameter | 3,000 mm (118.1 in) |
| Max Part Height | 1,950 mm (76.8 in) |
| Table Size Extreme | 1,250 x 1,600 mm (49.2 x 63.0 in) |
| Spindle Motor Power | Up to 84 kW (112.6 hp) |
| B Axis Range | -15º/+195º (THC head) |
| A Axis Range | -45º/+135º (THR head) |
| Tool Capacity | Tool magazines up to 360 positions |
| Versions | T Extreme (5-axis milling) / T Multiprocess (5-axis turning and milling) |
Specifications sourced from ibarmia.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Rectangular 1,250 x 1,600 mm (49.2 x 63.0 in) table on the T Extreme, suited to oblong parts and fixture plates
- 3,000 mm (118.1 in) of swing diameter and 1,950 mm (76.8 in) of part height
- Spindle options up to 84 kW (112.6 hp)
- Tool magazines up to 360 positions
Limitations
- The table size is given for the Extreme version only; nothing is listed for the Multiprocess table
- One table side is 1,250 mm (49.2 in), no wider than on the smaller T22
- No table load appears in the table, although the envelope allows parts 3,000 mm (118.1 in) across
Best For
Frequently Asked Questions
01
On the T Extreme version the table is 1,250 x 1,600 mm (49.2 x 63.0 in). That is the only table dimension listed. For the T Multiprocess, the turning and milling version, the table states no rotary table diameter at this size, so it has to be confirmed with Ibarmia.
02
The T36 is bigger in every listed dimension: a 1,600 x 1,600 mm (63.0 x 63.0 in) Extreme table, 3,600 mm (141.7 in) of swing and 2,150 mm (84.6 in) of part height. The T30 lists 1,250 x 1,600 mm (49.2 x 63.0 in), 3,000 mm (118.1 in) and 1,950 mm (76.8 in). Spindle power and magazine limits are identical.
03
The table names two. The THC head works on a B axis with a range of -15º/+195º, and the THR head on an A axis with a range of -45º/+135º. Either is paired with a spindle of up to 84 kW (112.6 hp); the table does not say which head takes which spindle.
