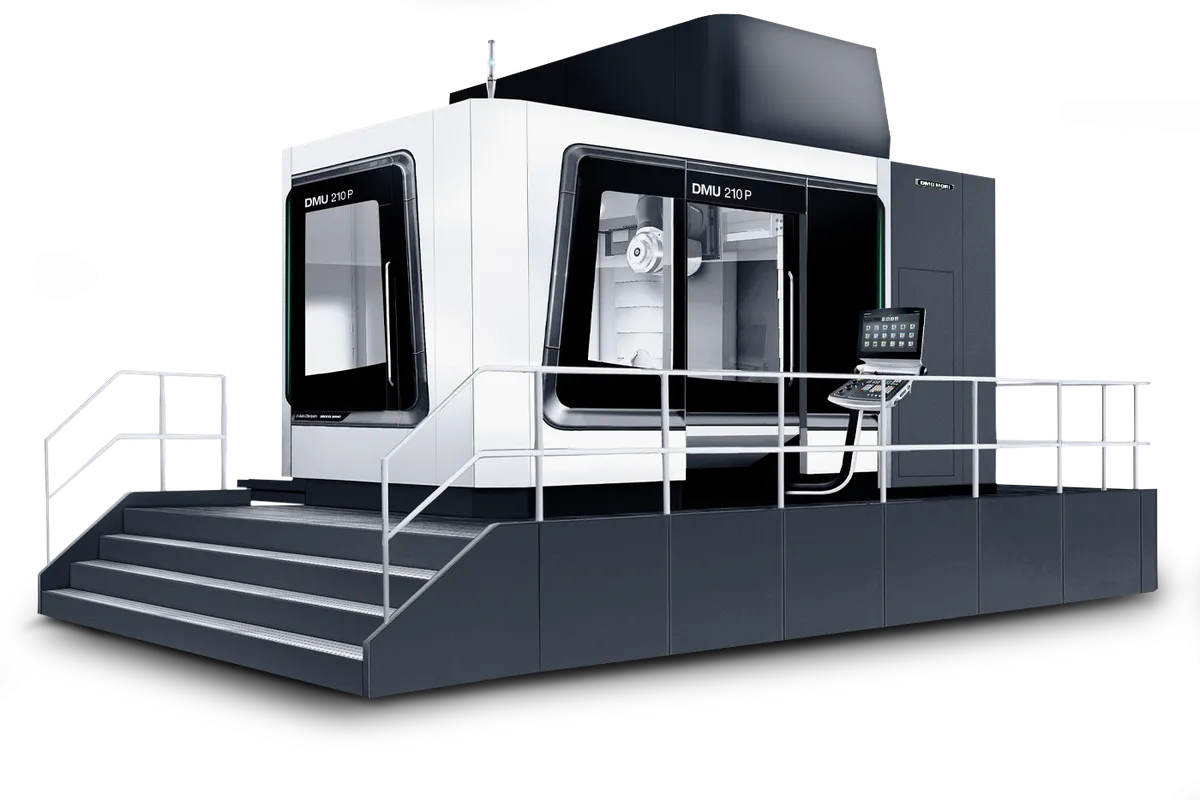

DMG Mori DMU 210 P

The DMG Mori DMU 210 P is a large-format 5-axis portal machining center designed for the simultaneous five-axis machining of oversized and heavy workpieces in aerospace, energy, and heavy-industry applications. With a 2,100 mm diameter rotary table and a load capacity of up to 10,000 kg, the DMU 210 P operates at a scale that few 5-axis machines can match, handling complete machining of large turbine components, landing gear assemblies, and structural aerospace frames.

The portal design — featuring a gantry-style column moving over the stationary table — provides the structural stiffness necessary to maintain five-axis contouring accuracy across a working envelope of 2,100 × 1,600 × 1,000 mm. Dual linear drives on the Y-axis reduce positional error caused by structural asymmetry and maintain positioning precision even under heavy cutting loads. The swiveling milling head provides ±90° B-axis rotation for full five-sided access.

Power-train options include motor spindles up to 34 kW and fork-type or swivel-head configurations, allowing the machine to switch between high-speed aluminum cutting and high-torque titanium or steel roughing. Chip and coolant management are engineered for the substantial material removal rates expected in large-part production, with integrated chip conveyors and high-pressure coolant as standard.

The DMU 210 P is controlled via CELOS with Heidenhain TNC 640 or Siemens 840D sl and can be configured with automated pallet systems for higher throughput. It is a strategic acquisition for facilities committed to large-part five-axis production at aerospace prime and tier-1 level.
