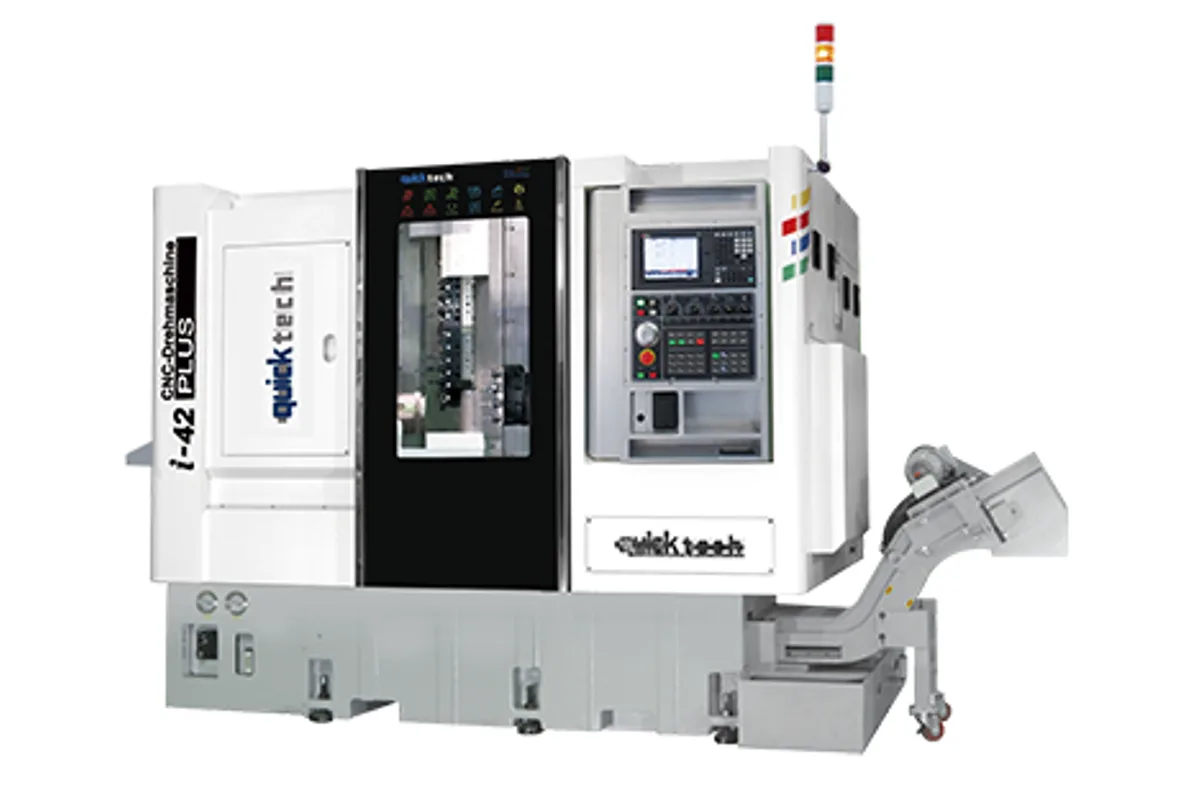

Quicktech i-42 PLUS
Image: quicktech.com.tw, Quicktech
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
control
max turning diameter
How much does the Quicktech i-42 PLUS cost?
Price estimate
We do not have a price for the Quicktech i-42 PLUS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Quicktech i-42 PLUS is a single-spindle gang-tooling lathe with a second, independent tool slide, so two tools can cut the same part at once. Quicktech says the machine runs two NC programs simultaneously. Bar capacity is 42 mm (1.7 in), or 65 mm (2.6 in) as an option, and the maximum turning length is 230 mm (9.1 in).
There is no sub-spindle on this model. The second axis group has X2 and Z2 travel, printed as 250 / ---- / 320 mm (9.8 / ---- / 12.6 in) for X2/Y2/Z2, and works on the part held in the main spindle. According to the maker, simultaneous machining is possible from the outside as well as from the inside, and depending on the work piece the working time can be reduced up to 50%. In practice that means roughing an outside diameter with one slide while the other drills or bores.
Three versions share the page, and the table splits two rows between them. OD/ID tools read I-42 Plus: 11 / 9; I-42 Plus M: 6 / 5; I-42 Plus B: 6 / 5. Motorized tools read I-42 Plus: 0; I-42 Plus M: 6; I-42 Plus B: 12. The base machine is therefore a pure turning machine, the M version adds live tools, and the B version has the most live tools at the cost of fixed turning positions. Live tools use ER-20 collets, run to 4,000 rpm and are driven by an AC Servo 1.5 kW (2.0 hp) motor.
The standard spindle is a 7.5 kW (10.1 hp) servo spindle, with 11.0 kW (14.8 hp) as the option. First-system travel is 150 / 410 / 250 mm (5.9 / 16.1 / 9.8 in). The control is a Mitsubishi M80 and the machine weighs 4,780 kg (10,538 lb).
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | Mitsubishi M80 |
| Max Turning Diameter | 100 mm (3.9 in) |
| Bar Capacity | 42 mm (1.7 in); option 65 mm (2.6 in) |
| Max Turning Length | 230 mm (9.1 in) |
| Collet Chuck Type | KK5-173E42B; option KK6-185E60B |
| Spindle Nose | A2-5; option A2-6 |
| Spindle Bore | 43 mm (1.7 in); option 66 mm (2.6 in) |
| Max Spindle Speed | 4,000 rpm; option 6,000 rpm |
| X1 Y1 Z1 Axis Travel | 150 / 410 / 250 mm (5.9 / 16.1 / 9.8 in) |
| X2 Y2 Z2 Axis Travel | 250 / ---- / 320 mm (9.8 / ---- / 12.6 in) |
| Rapid Traverse Rate | 30 m/min (1,181 ipm) |
| Spindle Motor Power | Servo Spindle 7.5 kW (10.1 hp); option 11.0 kW (14.8 hp) |
| X1 Y1 Z1 Axis Motor | AC Servo 1.0 / 1.5 / 1.5 kW (1.3 / 2.0 / 2.0 hp) |
| X2 Y2 Z2 Axis Motor | AC Servo 1.0 / ---- / 1.0 kW (1.3 / ---- / 1.3 hp) |
| Motorized Tool Motor | AC Servo 1.5 kW (2.0 hp) |
| OD ID Tools Main Spindle | I-42 Plus: 11 / 9; I-42 Plus M: 6 / 5; I-42 Plus B: 6 / 5 |
| Tool Shank Size | □ 20 mm |
| Drill Holder Size Main | ER-20 / Ø20 mm |
| Drill Holder Size Sub | ER-20 / Ø25 mm |
| Motorized Tools | I-42 Plus: 0; I-42 Plus M: 6; I-42 Plus B: 12 |
| Driven Tool Speed | 4,000 rpm |
| Motorized Tool Collet | ER-20 |
| Max Drilling Diameter | 12.0 mm (0.5 in) |
| Max Tapping Capacity | M10xP1.5 |
| Hydraulic Pump Tank Capacity | 1 HP / 40 L |
| Hydraulic Pressure Flow | 30 kg/cm² / 12 L/min |
| Coolant Pump | TPH4T5K, 5 bar, 75 L/min |
| Coolant Tank Capacity | 125 L |
| Machine Dimensions | 3,200 (2,500) / 1,750 / 1,950 mm (126.0 (98.4) / 68.9 / 76.8 in), length / width / height |
| Machine Weight | 4,780 kg (10,538 lb) |
Specifications sourced from quicktech.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- Second tool slide with X2 and Z2 travel for two tools in the cut at once
- Runs two NC programs simultaneously, as the maker states
- Version choice by tooling: I-42 Plus: 0; I-42 Plus M: 6; I-42 Plus B: 12 motorized tools
- Maker's claim that working time can be reduced up to 50%, depending on the work piece
- Rapid feed of 30 m/min (1,181 ipm) on a 4,780 kg (10,538 lb) machine
Limitations
- No sub-spindle, so the cut-off end needs a second operation
- The standard spindle motor is 7.5 kW (10.1 hp); 11.0 kW (14.8 hp) is an option
- The second axis group has no Y2 travel
- The base version lists 0 motorized tools, so milling and cross-drilling need the M or B version
- Coolant tank is 125 L and the table lists no high-pressure pump for this model
Best For
Frequently Asked Questions
01
It lets two tools work on the part at the same time. The table gives the second group as 250 / ---- / 320 mm (9.8 / ---- / 12.6 in) for X2/Y2/Z2, and Quicktech says simultaneous machining is possible from the outside as well as from the inside, with two NC programs running simultaneously.
02
Tooling. The OD/ID tool row reads I-42 Plus: 11 / 9; I-42 Plus M: 6 / 5; I-42 Plus B: 6 / 5 and the motorized tool row reads I-42 Plus: 0; I-42 Plus M: 6; I-42 Plus B: 12. Every other row of the table is shared by the three versions.
03
No. All sub-spindle rows of the table are blank for this model. In the i-42 line the i-42 Twin and the i-42 Ultimate are the models with a sub-spindle; the i-42 Twin lists it at 30 mm (1.2 in) bar capacity.
04
A servo spindle of 7.5 kW (10.1 hp) as standard, or 11.0 kW (14.8 hp) as an option. Standard speed is 4,000 rpm with 6,000 rpm optional, on an A2-5 nose with a 43 mm (1.7 in) bore. The 65 mm (2.6 in) bar option brings an A2-6 nose and a 66 mm (2.6 in) bore.
