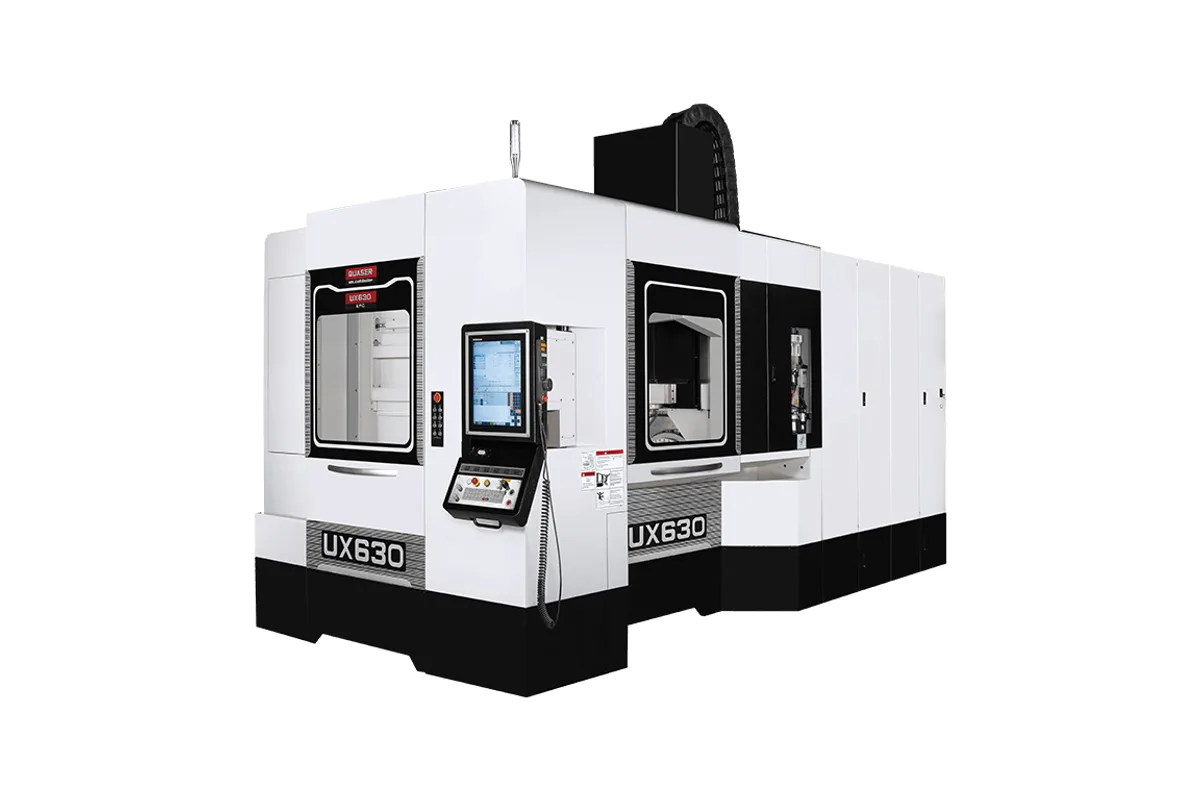

Quaser UX630APC
Image: quaser.com, Quaser
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
max swing
max work piece size
How much does the Quaser UX630APC cost?
Price estimate
We do not have a price for the Quaser UX630APC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Take the UX630 platform, add an automatic pallet changer, and the result is the Quaser UX630APC: a 5-axis machining center with a □500 mm (□19.7") pallet, a Ø630 mm (Ø24.8") swing and linear travels of 900 mm (35.4"), 660 mm (26.0") and 610 mm (24.0").
One discrepancy needs stating up front. Quaser's spec table lists the table load capacity as 400 kg (882 lbs), while the descriptive text on the same page says the table allows heavy loading of up to 500kg. The table also gives a work piece of Ø630 x 480 mm (Ø24.8" x 18.9"), which agrees with the 480mm height in the text. Until Quaser confirms otherwise, plan around the lower figure and get the rating in writing.
The point of the APC is standstill time. Quaser says the changer minimizes it, and that the compact design gives the operator easy reach to the work piece and the spindle for adjusting tools and measuring. For medium-size 5-axis parts, long cycles and long setups are the norm, so a second pallet that can be loaded and probed outside the work zone is worth more here than on a 3-axis machine.
Spindle and tooling match the UX630: a 40 taper listed at 12K ~ 18K, 48 tools as standard, 76.2 mm (3") tool diameter or 125 mm (4.9") with neighboring pots empty, and 300 mm (11.8") tool length. Quaser positions the machine for 5 axis simultaneous machining of medium size work pieces.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | □500 mm (□19.7") |
| Max Swing | Ø630 mm (Ø24.8") |
| Max Work Piece Size | Ø630 x 480 mm (Ø24.8" x 18.9") |
| X Axis Travel | 900 mm (35.4") |
| Y Axis Travel | 660 mm (26.0") |
| Z Axis Travel | 610 mm (24.0") |
| Max Table Load | 400 kg (882 lbs) |
| Spindle Taper | 40 taper |
| Max Spindle Speed | 12K ~ 18K |
| Tool Capacity | 48 (std.) |
| Max Tool Diameter (full magazine) | 76.2 mm (3") |
| Max Tool Diameter Neighbor Pots Empty | 125 mm (4.9") |
| Max Tool Length | 300 mm (11.8") |
Specifications sourced from quaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Automatic pallet changer on a □500 mm (□19.7") pallet for 5-axis work
- 660 mm (26.0") of Y travel with 900 mm (35.4") of X
- Ø630 mm (Ø24.8") swing and 480 mm of work piece height
- 48 tools as standard and a spindle listed at 12K ~ 18K
- Compact layout with easy operator reach to work piece and spindle, per Quaser
Limitations
- The spec table says 400 kg (882 lbs) while Quaser's text says up to 500kg; the rating needs confirming
- Work piece height of 480 mm is less than the 600 mm of the UX630
- Pallet count, pallet change time and rotary axis ranges are not published
- No spindle power or torque is listed
Best For
Frequently Asked Questions
01
The spec table lists a table load capacity of 400 kg (882 lbs). Quaser's description on the same page speaks of loading up to 500kg. The two do not agree, so use the lower figure for planning and ask Quaser which applies to the configuration quoted.
02
900 mm (35.4") in X, 660 mm (26.0") in Y and 610 mm (24.0") in Z. The pallet is □500 mm (□19.7"), the maximum swing is Ø630 mm (Ø24.8") and the maximum work piece size is Ø630 x 480 mm (Ø24.8" x 18.9").
03
Quaser states that the automatic pallet changer mechanism minimizes the machine's standstill time to enhance productivity. A finished part leaves the work zone and the next one enters without the operator stopping the spindle to reload.
04
A 40 taper spindle with a maximum speed listed as 12K ~ 18K and a 48-position magazine as standard. Maximum tool diameter is 76.2 mm (3"), 125 mm (4.9") with neighboring pots empty; maximum tool length is 300 mm (11.8").
