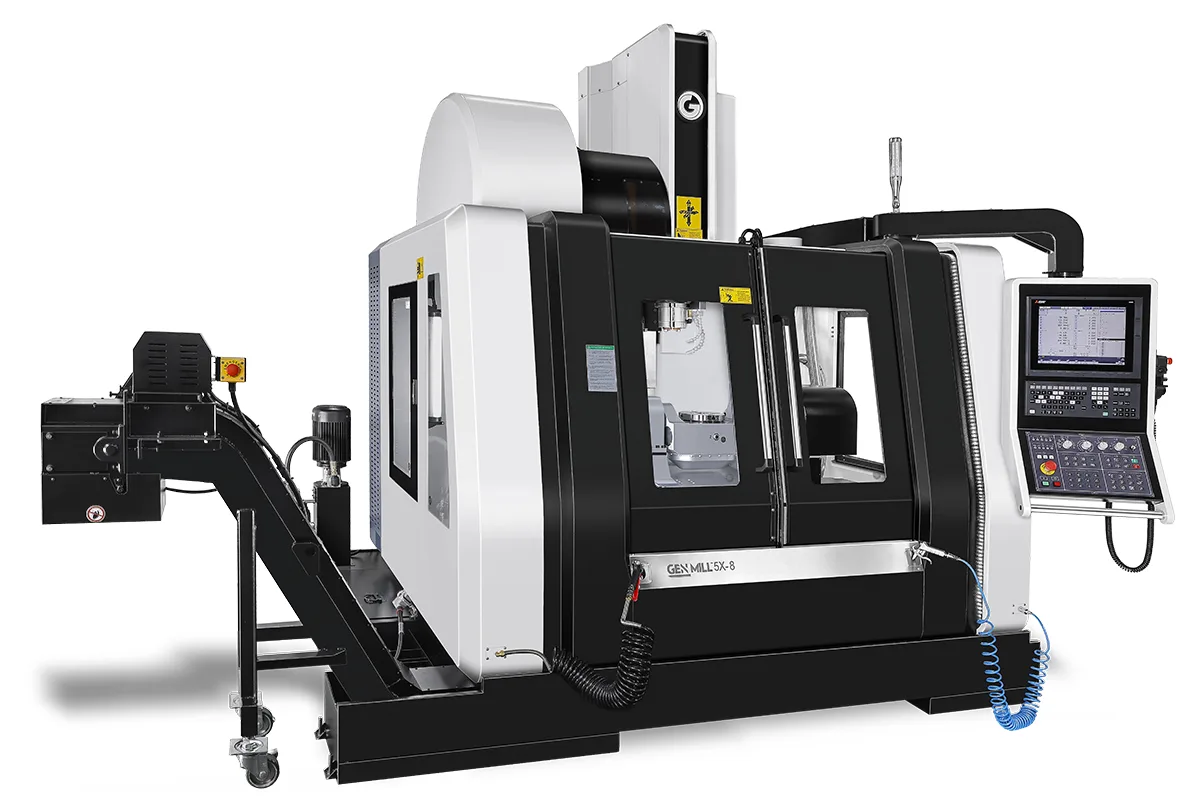

Ganesh GEN MILL 5X-8
Image: expandmachinery.com, Ganesh
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Ganesh GEN MILL 5X-8 cost?
Price estimate
We do not have a price for the Ganesh GEN MILL 5X-8 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The GEN MILL 5X-8 puts a tilting rotary table with an 8.34 in (210 mm) platter inside a 40-taper vertical machining center. Expand Machinery calls it a high-speed VMC with a built-in 8 in trunnion. Linear travels are 25.59 in (650 mm) in X, 19.68 in (500 mm) in Y and 17.71 in (450 mm) in Z, so the machine has the envelope of a small 3-axis mill with two rotary axes added on the table.
Part size is set by the trunnion, not by the travels. Maximum part swing is 12.5 in and the table carries 165 lb (75 kg) for rated accuracy. The spindle nose reaches down to the table surface, with a range of 0 - 17.71 in (0 - 450 mm), which lets short tools get to a part tilted on its side.
The spindle is a 12,000 rpm inline direct-drive Big-Plus unit rated 20 HP peak and 15 HP on the 30-minute rating, with 50 ft-lb at 1,500 rpm. Spindles of 15,000 and 24,000 rpm are optional. The maker also lists synchronous rigid tapping and a 300 psi through-the-spindle coolant system with a rotary coupling. X and Y rapid at 1,417 ipm (36 m/min); Z is slower at 944 ipm (24 m/min).
Tool changes take 1.7 sec tool-to-tool with an inverter-driven twin-arm changer. The published tool count for this model is not consistent, so confirm the magazine size when quoting. The machine weighs 12,760 lb (5,788 kg) and occupies 87 x 81 x 113 in (221 x 206 x 288 cm), with 48 in more for the conveyor. The GEN MILL 5X-12 is the next size up, with a 12.6 in (320 mm) platter and 34.64 in (880 mm) of X travel.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 25.59 in (650 mm) |
| Y Axis Travel | 19.68 in (500 mm) |
| Z Axis Travel | 17.71 in (450 mm) |
| Distance Spindle Nose to Table | 0 - 17.71 in (0 - 450 mm) |
| Throat | 20.27 in (515 mm) spindle center to Z-axis way covers |
| Table Size | 8.34 in (210 mm) platter diameter, tilting rotary table |
| Max Table Load | 165 lb (75 kg) for rated accuracy |
| Max Part Swing | 12.5 in |
| Spindle Motor Power | 20 HP peak, 15 HP 30-minute duty rated (S1 / S2 / S3 = 7.5 / 11 / 15 kW) |
| Max Spindle Speed | 12,000 rpm (15,000 and 24,000 rpm optional), inline direct drive |
| Spindle Torque | 50 ft-lb at 1,500 rpm |
| Spindle Taper | CAT 40 (BT 40 optional) |
| Rapid Traverse Xyz | 1,417 ipm (36 m/min) X, Y; 944 ipm (24 m/min) Z |
| Cutting Feed Rate | 0.04 - 394 ipm (10,000 mm/min) |
| Axis Motor Power | X, Y 2.7 HP (2.0 kW); Z 4.7 HP (3.5 kW) |
| Ballscrews | 32 mm, 12 mm pitch (X, Y, Z) |
| Tool Change Time | 1.7 sec tool-to-tool, inverter motor driven |
| Max Tool Diameter (full magazine) | 5.90 in (150 mm); 3.15 in (80 mm) with adjacent tools |
| Max Tool Length | 11.81 in (300 mm) from gage line |
| Max Tool Weight | 15 lb (7 kg) |
| Power Requirement | 30 kVA, 220 VAC ±5%, 60 Hz |
| Coolant Tank Capacity | 68 gallons (256 liters) |
| Machine Dimensions | 87 x 81 x 113 in (221 x 206 x 288 cm) W x D x H, add 48 in for conveyor |
| Machine Weight | 12,760 lb (5,788 kg) |
Specifications sourced from expandmachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Built-in tilting rotary table with an 8.34 in (210 mm) platter
- 12,000 rpm Big-Plus spindle, 20 HP peak, with 15,000 and 24,000 rpm optional
- 1.7 sec tool-to-tool change
- 300 psi through-the-spindle coolant with rotary coupling
- Spindle nose reaches the table surface: 0 - 17.71 in (0 - 450 mm)
Limitations
- Table load is 165 lb (75 kg) for rated accuracy
- Maximum part swing is 12.5 in
- Z rapid of 944 ipm (24 m/min) is well below the 1,417 ipm (36 m/min) of X and Y
- Spindle torque is 50 ft-lb at 1,500 rpm, less than the 90 ft-lb of the GEN MILL 5X-12
Best For
Frequently Asked Questions
01
The platter is 8.34 in (210 mm) in diameter, maximum part swing is 12.5 in and the maximum work-table load is 165 lb (75 kg) for rated accuracy. Linear travels are 25.59 in (650 mm), 19.68 in (500 mm) and 17.71 in (450 mm) in X, Y and Z.
02
The standard spindle runs at 12,000 rpm with a CAT 40 taper, 20 HP peak and 15 HP on the 30-minute duty rating, and 50 ft-lb of torque at 1,500 rpm. Optional spindles run at 15,000 and 24,000 rpm, and BT 40 is an optional taper.
03
The published tool count for this model is not consistent, so confirm it with the maker. Tool change time is 1.7 sec tool-to-tool. Tools can be up to 5.90 in (150 mm) in diameter, or 3.15 in (80 mm) with adjacent tools, 11.81 in (300 mm) long from the gage line and 15 lb (7 kg).
04
The GEN MILL 5X-12 is larger and stronger: a 12.6 in (320 mm) platter, 34.64 in (880 mm) of X travel and 90 ft-lb of spindle torque. The GEN MILL 5X-8 has an 8.34 in (210 mm) platter, 25.59 in (650 mm) of X and 50 ft-lb, and it is lighter at 12,760 lb (5,788 kg).
05
A 30 kVA connected load at 220 VAC ±5%, 60 Hz. Floor space is 87 x 81 x 113 in (221 x 206 x 288 cm) plus 48 in for the conveyor, coolant capacity is 68 gallons (256 liters) and the machine weighs 12,760 lb (5,788 kg).
