Hwacheon M4-5AX
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon M4-5AX cost?
Price estimate
We do not have a price for the Hwacheon M4-5AX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

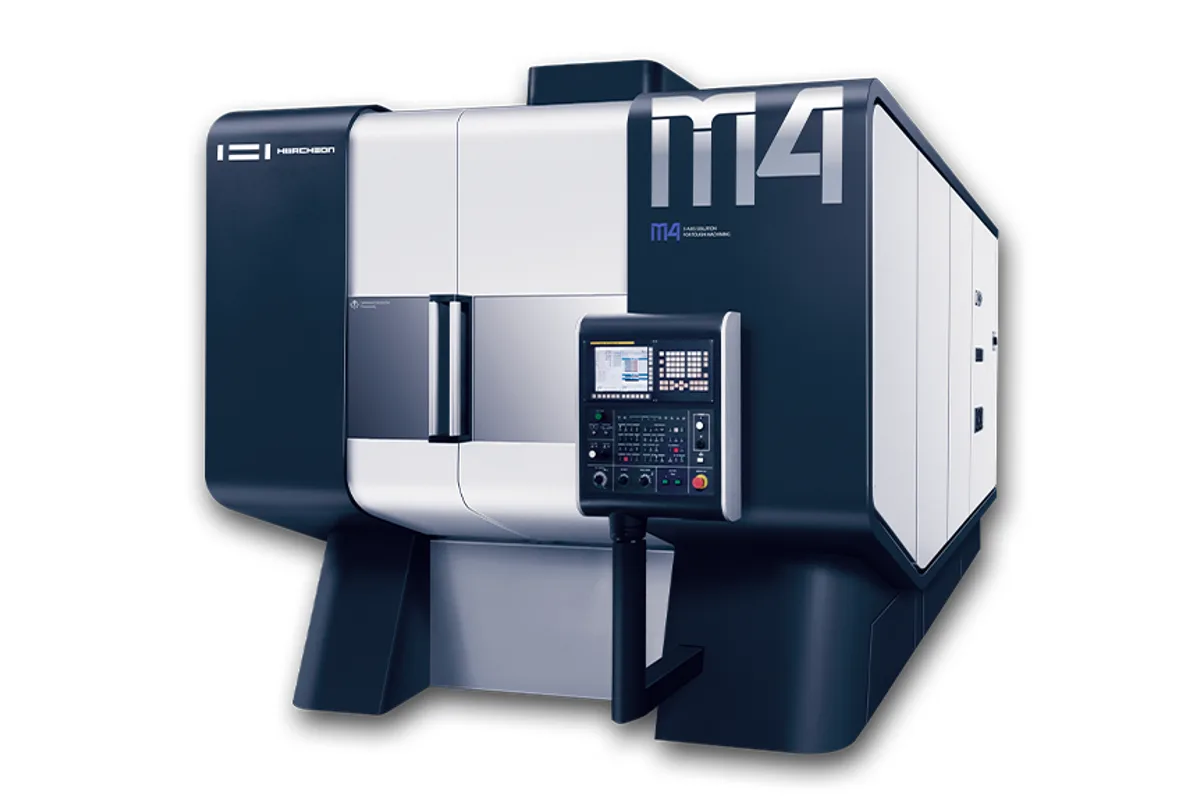

The Hwacheon M4-5AX is the 50-taper machine of the M-series: a five-axis machining center with BBT-50 spindles, a Ø800 x 630 mm (Ø31.5 x 24.8 in) table rated for 1,200 kg (2,646 lb), and 950 mm (37.4 in) of X, 1,000 mm (39.4 in) of Y and 650 mm (25.6 in) of Z travel. The table swings through ±120° on A and turns 360° on C.
Where the smaller M-series machines chase spindle speed, the M4 is set up for cutting load. The 8K spindle is the high-torque option, rated 55 / 30 kW (73.8 / 40.2 hp) at up to 8,000 rpm, on Ø100 mm (Ø3.9 in) bearings that can be upgraded to Ø120 mm. The 12K spindle reaches 12,000 rpm at 30 / 25 kW (40.2 / 33.5 hp). BBT-50 is standard, with CAT-50, HSK-A100 and SK-50 as options. A buyer choosing between the two should weigh the 8K's higher power rating against the 12K's higher speed for finishing and smaller cutters.
The tool limits follow from the larger taper. Tools can be 400 mm (15.7 in) long and 20 kg (44 lb), against 320 mm (12.6 in) and 8 kg (18 lb) on the 40-taper M3-5AX. The magazine holds 30 tools, with a 60-tool option, and works on fixed address rather than memory random, so each tool returns to its own pocket. The pull stud is a 90° type, which is worth checking against existing holders before the machine arrives.
Rapids are 36 m/min (1,417 ipm) on X and Y and 30 m/min (1,181 ipm) on Z; A rapids at 20 rpm and C at 30 rpm. Spindle nose to table runs from 180 to 830 mm (7.1 to 32.7 in), and the table has five 18 mm T-slots at 100 mm pitch. The control is a Fanuc 31i-B5. The installation is substantial: 125 kVA, a 550 L coolant tank, 4,252 mm (167.4 in) of height and a footprint of 5,126 x 6,336 mm (201.8 x 249.4 in), or 5,126 x 6,570 mm (201.8 x 258.7 in) with the 60-tool magazine. The machine weighs 28,000 kg (61,729 lb), or 28,500 kg (62,831 lb) with 60 tools.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 950 mm (37.4 in) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 650 mm (25.6 in) |
| A Axis Range | ±120° |
| C Axis Range | 360° |
| Distance Spindle Nose to Table | 180 ~ 830 mm (7.1 ~ 32.7 in) |
| Table Size | Ø800 x 630 mm (Ø31.5 x 24.8 in) |
| Max Table Load | 1,200 kg (2,646 lb) |
| T-Slots | 18 mm width x 100 mm pitch, 5 slots |
| Max Spindle Speed | 8,000 rpm (8K high-torque) / 12,000 rpm (12K) |
| Spindle Motor Power | 8K: 55 / 30 kW (73.8 / 40.2 hp); 12K: 30 / 25 kW (40.2 / 33.5 hp) |
| Spindle Taper | BBT-50 (opt. CAT-50, HSK-A100, SK-50) |
| Spindle Drive | Built-in motor |
| Spindle Bearing Diameter | Ø100 mm (Ø3.9 in) (8K opt. Ø120 mm) |
| Spindle Bearing Lubrication | Oil-jet |
| Spindle Cooling | Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 36 / 36 / 30 m/min (1,417 / 1,417 / 1,181 ipm) |
| Rapid Traverse Rotary | 20 / 30 rpm (A / C) |
| Tool Capacity | 30 (opt. 60) |
| Tool Selection | Fixed address |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Pull Stud | 90° type |
| Power Requirement | 125 kVA |
| Coolant Tank Capacity | 550 L |
| Machine Height | 4,252 mm (167.4 in) |
| Machine Dimensions | 5,126 x 6,336 mm (201.8 x 249.4 in) (L x W); 60-tool: 5,126 x 6,570 mm (201.8 x 258.7 in) |
| Machine Weight | 28,000 kg (61,729 lb); 60-tool: 28,500 kg (62,831 lb) |
| CNC Control | Fanuc 31i-B5 |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- BBT-50 spindle taper, with CAT-50, HSK-A100 and SK-50 as options
- 8K high-torque spindle rated 55 / 30 kW (73.8 / 40.2 hp)
- Table rated 1,200 kg (2,646 lb), against 800 kgf (1,764 lb) on the M3-5AX
- 1,000 mm (39.4 in) of Y travel and 950 mm (37.4 in) of X
- Tools up to 400 mm (15.7 in) long and 20 kg (44 lb)
Limitations
- Top spindle speed is 12,000 rpm on the 12K and 8,000 rpm on the high-torque 8K
- Only 30 tools as standard; the 60-tool magazine is an option and adds to the footprint and weight
- A axis rapids at 20 rpm and Z at 30 m/min (1,181 ipm)
- Needs 125 kVA and floor for 28,000 kg (61,729 lb) on a 5,126 x 6,336 mm (201.8 x 249.4 in) footprint
Best For
Frequently Asked Questions
01
The 8K is the high-torque spindle: 8,000 rpm and 55 / 30 kW (73.8 / 40.2 hp), on Ø100 mm (Ø3.9 in) bearings with Ø120 mm as an option. The 12K runs to 12,000 rpm and is rated 30 / 25 kW (40.2 / 33.5 hp). Both take BBT-50 tooling, with CAT-50, HSK-A100 and SK-50 as options.
02
The M3-5AX is a 40-taper machine with spindles from 14,000 to 24,000 rpm, a Ø700 x 540 mm (Ø27.6 x 21.3 in) table rated 800 kgf (1,764 lb) and a 40-tool magazine. The M4-5AX moves to BBT-50, spindles of 8,000 or 12,000 rpm, a Ø800 x 630 mm (Ø31.5 x 24.8 in) table rated 1,200 kg (2,646 lb) and 30 tools with a 60-tool option.
03
Tools up to 400 mm (15.7 in) long and 20 kg (44 lb). The magazine holds 30 tools, or 60 with the option, and uses fixed-address selection. The pull stud is a 90° type, so check that existing BBT-50 holders carry matching studs before sharing them with this machine.
04
125 kVA of supply and a footprint of 5,126 x 6,336 mm (201.8 x 249.4 in), or 5,126 x 6,570 mm (201.8 x 258.7 in) with 60 tools. Height is 4,252 mm (167.4 in). The machine weighs 28,000 kg (61,729 lb), or 28,500 kg (62,831 lb) with the 60-tool magazine, and has a 550 L coolant tank.
