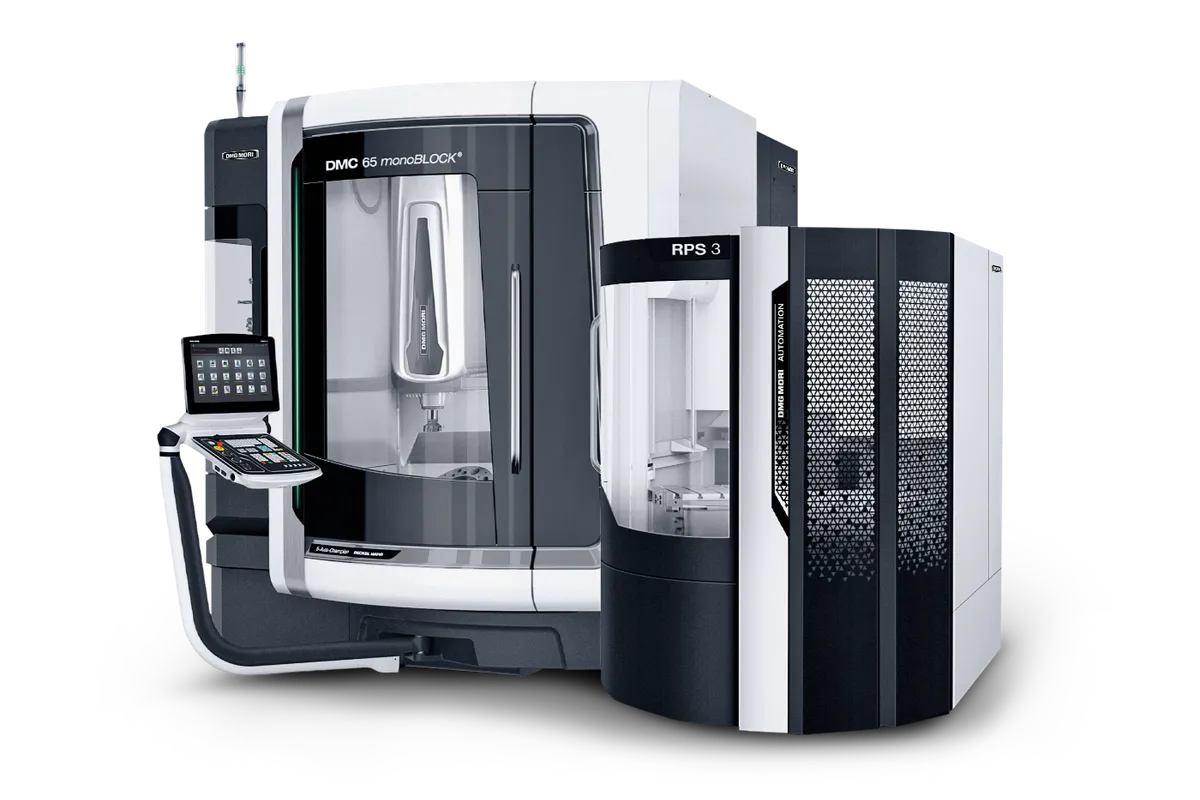

DMG Mori DMC 65 FD monoBLOCK

$350,000 - $550,000 Updated 2026-03-19

Key Specifications

X Travel

735 mm (28.9 in)

Y Travel

650 mm (25.6 in)

Z Travel

560 mm (22.0 in)

Max Spindle

10,000 / 14,000 / 18,000 / 24,000 RPM (configurable)

Spindle Taper

HSK-A63 (HSK-A100 on heavy-duty)

Tool Capacity

Up to 240 tools

Overview

The DMG Mori DMC 65 FD monoBLOCK adds mill-turn capability to the proven DMU 65 monoBLOCK platform, combining simultaneous 5-axis milling with integrated turning operations in one compact machine. The FD (FreeDrive) designation means the DirectDrive swivel rotary table can spin workpieces at turning speeds, enabling facing, OD turning, boring, and grooving without transferring parts to a separate lathe.

Travel measures 735 x 650 x 560 mm (28.9 x 25.6 x 22.0 in), matching the standard DMU 65 monoBLOCK. Workpiece capacity reaches 630 mm (24.8 in) diameter, 500 mm (19.7 in) height, and 600 kg (1,323 lb). The monoBLOCK one-piece cast iron construction delivers excellent rigidity in a compact footprint, while the swivel range provides full angular access for 5-axis contouring.

Spindle options mirror the DMU 65 platform with selections from 10,000 to 24,000 RPM and torque up to 200 Nm. The FD-specific configuration adds turning tools and programming capability through SIEMENS SINUMERIK ONE or HEIDENHAIN TNC7 controls. Both support unified mill-turn programming for seamless transitions between milling and turning operations.

The tool magazine accommodates configurations up to 240 pockets for extended unattended operation. The 45 mm roller guideways across all axes provide the rigidity to maintain accuracy under load during both milling and turning. The DMC designation indicates pallet-changer capability, enabling parallel setup for higher spindle utilization.

The DMC 65 FD monoBLOCK targets shops that produce parts requiring both prismatic milled features and turned diameters -- aerospace brackets with bored holes, medical components with combined features, and mold inserts with turned sealing surfaces. By consolidating two machine operations into one setup, it eliminates re-chucking errors and reduces total cycle time.

Full Specifications

Parameter	Value
X-Axis Travel	735 mm (28.9 in)
Y-Axis Travel	650 mm (25.6 in)
Z-Axis Travel	560 mm (22.0 in)
Max Workpiece Diameter	630 mm (24.8 in)
Max Workpiece Height	500 mm (19.7 in)
Max Table Load	600 kg (1,323 lb)
Max Spindle Speed	10,000 / 14,000 / 18,000 / 24,000 RPM (configurable)
Spindle Torque	Up to 200 Nm (heavy-duty option)
Spindle Taper	HSK-A63 (HSK-A100 on heavy-duty)
Tool Capacity	Up to 240 tools
Guideway Size	45 mm roller guideways
CNC Control	SIEMENS SINUMERIK ONE / HEIDENHAIN TNC7
735 Mm	28.9 in.
650 Mm	25.6 in.
560 Mm	22 in.
630 Mm	24.8 in.
500 Mm	19.7 in.
600 Kg	1322.8 lbs.
Customer Benefits	User Interface
Customer Benefitsflexible Application Possibilitiesin Process Measurement	Left : Semi-automatic Measurement solution. / Right : Automatic measurement solution.
Manufacturing Aluminum Rim Prototypes With Cnc Milling Machines Roc Fertigung24 Gmbh	Semiconductor chamber housing complete machining

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

FD mill-turn capability eliminates a separate lathe operation for parts with both milled and turned features, reducing setup time and floor space
MonoBLOCK one-piece casting provides excellent rigidity for combined milling and turning at a lower weight than duoBLOCK designs
Configurable spindles from 10,000 to 24,000 RPM with up to 200 Nm torque cover the full material spectrum
Up to 240-tool magazine supports complex multi-feature parts for extended unattended mill-turn production
Compact monoBLOCK footprint fits the mill-turn capability into the same floor space as a standard 5-axis center
Both SIEMENS and HEIDENHAIN control options with unified mill-turn programming environments

Limitations

FD option adds $30,000-$50,000 over the non-FD DMU 65 monoBLOCK, requiring sufficient combined-operation work to justify
600 kg table load limits the size of workpieces compared to the duoBLOCK platform's 1,400+ kg capacity
630 mm max workpiece diameter constrains applications to medium-sized parts
Turning capability is complementary rather than primary -- dedicated lathes offer higher speeds and feeds for pure turning work

Best For

Aerospace manufacturers producing brackets, housings, and fittings with both milled pockets and turned bores in one setup Medical device manufacturers machining implants and instruments with combined prismatic and rotational features Job shops needing versatile 5-axis mill-turn capability without the cost and footprint of a duoBLOCK machine Mold shops producing inserts with turned sealing surfaces and milled cavity details in one setup Production cells requiring automated 5-axis mill-turn with pallet changing for high spindle utilization

Frequently Asked Questions

01 What does a DMG Mori DMC 65 FD monoBLOCK cost?

New machines typically range from $350,000 to $550,000 depending on spindle, tool magazine size, control choice, and automation options. The FD option adds approximately $30,000-$50,000 over the standard DMU 65 monoBLOCK configuration.

02 How does the FD turning compare to a dedicated lathe?

The FD provides production-grade turning for combined-operation parts where milling is the primary process. Maximum turning speed and feed rates are lower than a dedicated lathe. The value is in eliminating re-chucking and a separate machine operation, not in replacing a lathe for pure turning work.

03 DMC 65 FD vs DMU 65 monoBLOCK -- which do I need?

Choose the DMC 65 FD if your parts require both milled and turned features. The DMC designation also indicates pallet-changer capability for production automation. If your parts only need milling, the DMU 65 monoBLOCK saves cost while delivering identical milling performance.

04 What automation options are available?

The DMC 65 FD supports pallet changers, the PH 150 pallet handling system, and Robo2Go robotic loading. Tool magazines up to 240 pockets support the extended unattended runs that automation demands.
