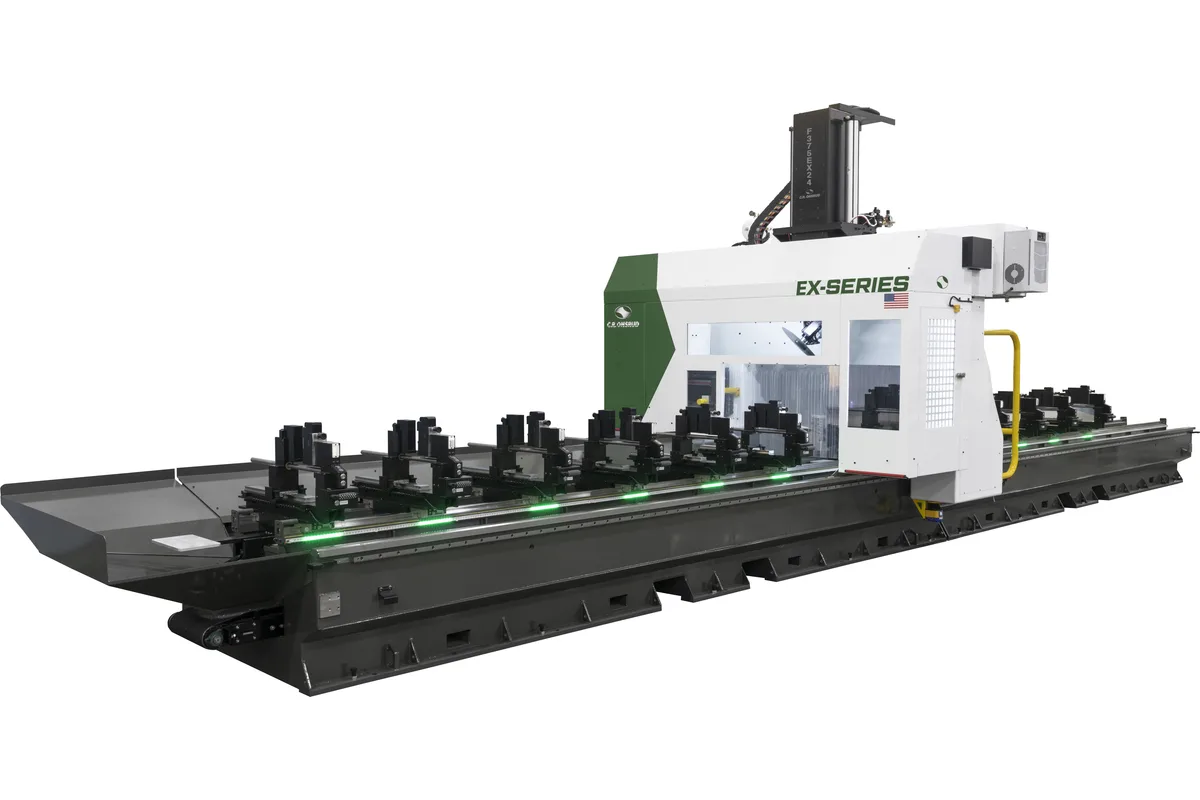

Onsrud 375EX
Image: cronsrud.com, Onsrud
Key Specifications
Max Spindle
Tool Capacity
Spindle Power
machine length
machine width
machine height
How much does the Onsrud 375EX cost?
Price estimate
We do not have a price for the Onsrud 375EX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Onsrud 375EX is the mid-length EX-Series extrusion machining center: 531 in (13,488 mm) of machine, 12 clamps, 2 material stop zones. The 5-axis head is driven by a 33 hp (24.6 kW) spindle at 24,000 rpm and has 40 in (1,016 mm) of Z-stroke.
From this size up the clamp count is fixed at 12 instead of the 10-12 range of the 265EX. More clamps over more length means long, flexible profiles can be supported closely, and the servo clamps can still be moved by the program when a cut needs the space.
A machine over forty feet long needs a straight, stable floor and a plan for getting stock in and parts out. Width, 147 in (3,734 mm), and height, 189 in (4,801 mm), are the same as on the shorter models, so the length is the only thing that grows.
The work area cross-section is 21 x 14 in (533 x 356 mm). Onsrud says the high-speed spindle and frame give fast tool changes, acceleration and chip-to-chip time; it publishes no figures for them. A 24-tool changer and a 75 hp (55.9 kW), 18,000 rpm spindle are the listed upgrades, and the control is FANUC or Onsrud's touchscreen interface.
Full Specifications
| Parameter | Value |
|---|---|
| Machine Length | 531 in (13,488 mm) |
| Machine Width | 147 in (3,734 mm) |
| Machine Height | 189 in (4,801 mm) |
| Max Clamps | 12 |
| Material Stop Zones Standard | 2 |
| Work Area | 21 x 14 in (533 x 356 mm) |
| Spindle Motor Power | 33 hp (24.6 kW) |
| Max Spindle Speed | 24,000 rpm |
| Tool Capacity | 12 (larger capacity tool changers optional) |
| Z Stroke | 40 in (1,016 mm) |
| Spindle Power Optional | 75 hp (55.9 kW) |
| Spindle Speed Optional | 18,000 rpm |
| Tool Capacity Optional | 24 |
Specifications sourced from cronsrud.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 12 clamps along a 531 in (13,488 mm) machine
- 2 material stop zones as standard
- 40 in (1,016 mm) Z-stroke for 5-axis access around the profile
- Upgrade path to 75 hp (55.9 kW) and 24 tools
Limitations
- Needs more than 531 in (13,488 mm) of straight floor
- No published rapid, tool-change or chip-to-chip figures
- Profile cross-section limited to 21 x 14 in (533 x 356 mm)
Best For
Frequently Asked Questions
01
Machine length is 531 in (13,488 mm). Width is 147 in (3,734 mm) and height 189 in (4,801 mm), the same as every EX-Series model.
02
A maximum of 12, with 2 material stop zones. The clamping system is servo-powered and CNC programmable, with part separation and indexing.
03
The 501EX, at 649 in (16,485 mm) of machine length. It has the same 12 clamps, 2 stop zones, spindle and tooling.
04
12 tools as standard and 24 as the upgrade; larger capacity tool changers are described as optional. A 550mm saw blade option is also offered for the series.
