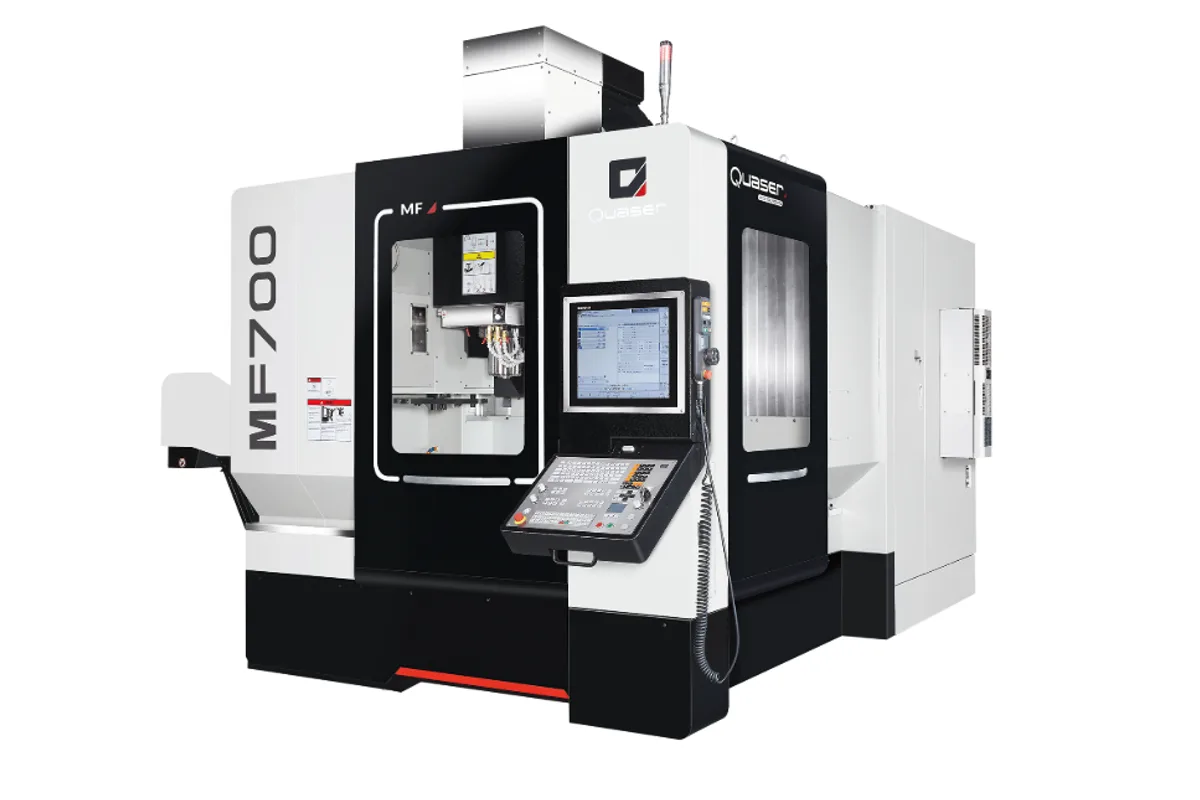

Quaser MF700
Image: quaser.com, Quaser
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
max swing
max work piece size
How much does the Quaser MF700 cost?
Price estimate
We do not have a price for the Quaser MF700 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Quaser's MF700 is a 5-axis machining center with a column-moving C frame and a Ø650 mm (Ø25.59") rotary table, taking parts up to Ø700 x H500 mm (Ø27.56" x H19.69") and 500 kg (1102.30 lbs). Its design idea is separation: the three linear axes are on the column side, the rotary axes are on the table side, and the two never stack.
Quaser gives two reasons for that split. It keeps following errors small, because no rotary axis rides on a moving linear one. And it puts the transmission components away from the working area, out of the coolant and chips. The column has a wide span with large linear way blocks, and the rotary table is integrated with a bridge type column to keep the footprint small.
The 500 kg (1102.30 lbs) rating comes with a condition worth reading: Quaser attributes it to the rotary table with tailstock support. The rotary drive is a worm gear and wheel with an encircling brake as standard, and Quaser says it can be upgraded with a dual Direct Drive Motor for work that needs speed, such as aerospace parts.
Linear travels are 820 mm (32.28") in X, 570 mm (22.44") in Y and 530 mm (20.87") in Z. The 40 taper spindle is listed at 12K ~ 20K, and 48 tools are standard, up to 300 mm (11.81") long.
Day-to-day details are covered too. There are 2 wide doors, three types of top guard (telescope, solid cover or open top), and a base that lets chips fall directly onto the conveyor, which Quaser says cuts chip cleaning time by 50%.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | Ø650 mm (Ø25.59") |
| Max Swing | Ø700 mm (Ø27.56") |
| Max Work Piece Size | Ø700 x H500 mm (Ø27.56" x H19.69") |
| X Axis Travel | 820 mm (32.28") |
| Y Axis Travel | 570 mm (22.44") |
| Z Axis Travel | 530 mm (20.87") |
| Max Table Load | 500 kg (1102.30 lbs) |
| Spindle Taper | 40 taper |
| Max Spindle Speed | 12K ~ 20K |
| Tool Capacity | 48 (std.) |
| Max Tool Diameter (full magazine) | 76.2 mm (3") |
| Max Tool Diameter Neighbor Pots Empty | 125 mm (4.9") |
| Max Tool Length | 300 mm (11.81") |
Specifications sourced from quaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Parts up to Ø700 x H500 mm (Ø27.56" x H19.69") and 500 kg (1102.30 lbs) with tailstock support
- Linear and rotary axes are separated to minimize following errors, per Quaser
- Worm gear rotary drive as standard, with a dual Direct Drive Motor upgrade available
- 48 tools as standard, each up to 300 mm (11.81") long
- Chips fall directly onto the conveyor; Quaser claims 50% less chip cleaning time
Limitations
- Y travel of 570 mm (22.44") and Z of 530 mm (20.87") are short for a Ø700 mm (Ø27.56") swing
- Tilt range and rotary speeds are not listed in the published table
- The Direct Drive rotary axes are an upgrade, not the standard build
- No spindle power or torque is given for the 12K ~ 20K range
Best For
Frequently Asked Questions
01
The maximum work piece size is Ø700 x H500 mm (Ø27.56" x H19.69") on a Ø650 mm (Ø25.59") table, with a load capacity of 500 kg (1102.30 lbs). Quaser's description ties the load figure to the rotary table with tailstock support.
02
X travel is 820 mm (32.28"), Y travel is 570 mm (22.44") and Z travel is 530 mm (20.87"). The table does not list the tilt or rotation ranges of the rotary axes.
03
The standard build uses a worm gear and wheel with an encircling brake, which Quaser says provides high rigidity and lock-force. For applications with a high speed demand, such as aerospace, the maker offers an upgrade to a dual Direct Drive Motor.
04
A 40 taper spindle listed at 12K ~ 20K and a 48-position magazine as standard. Tools can be 76.2 mm (3") in diameter, 125 mm (4.9") with neighboring pots empty, and 300 mm (11.81") long.
05
Yes. The MF700 (Flex) has 1680 mm (66.14") of X travel and adds a fixed table beside the rotary table. Y and Z travel are the same as the MF700.
