Quaser HX504 Cell
Image: quaser.com, Quaser
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
pallet size
max work swing diameter
max work piece height
How much does the Quaser HX504 Cell cost?
Price estimate
We do not have a price for the Quaser HX504 Cell that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

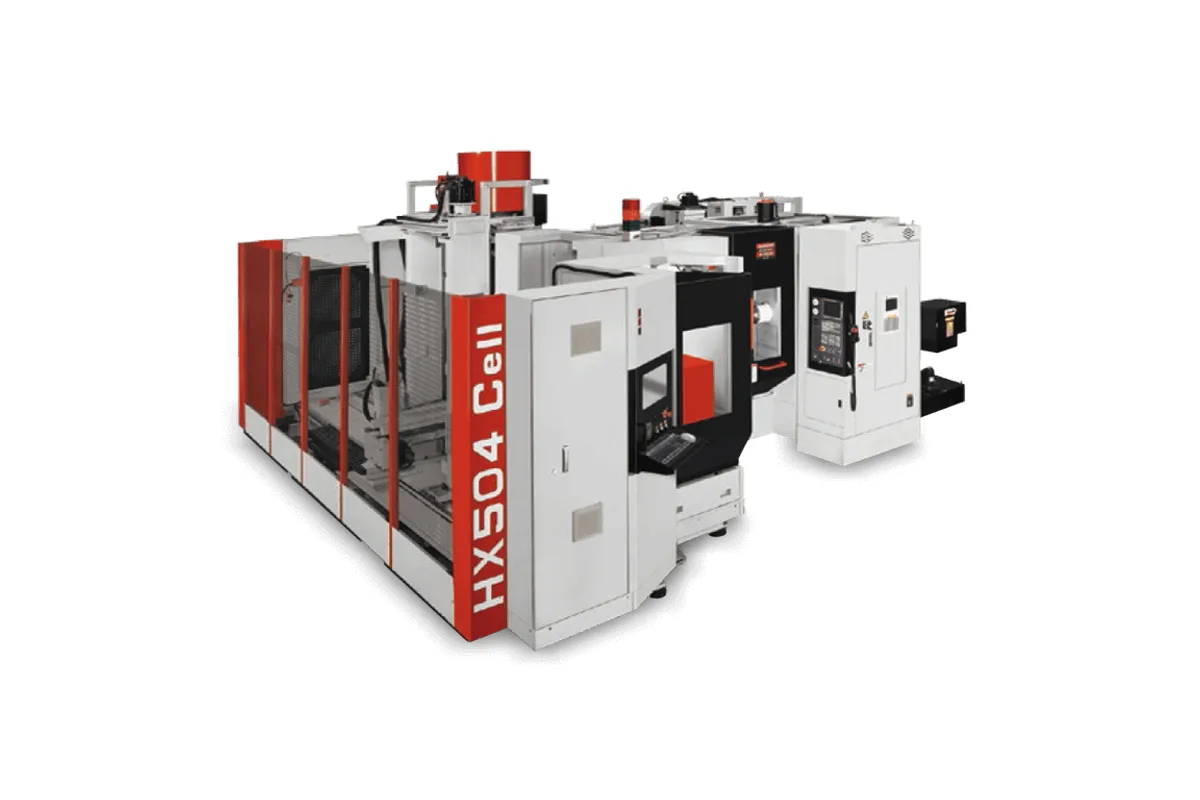

For production that has outgrown a twin-pallet horizontal, the Quaser HX504 Cell puts 8 or 14 pallets of 500 mm (□19.7") behind a 40 taper spindle. It is one of two machines on Quaser's 500-size cell platform; the other, the HX505 Cell, is the 50 taper variant.
The machine at the center is recognizably the HX504. X travel is 762 mm (30"), Y is 640 mm (25.2"), and Z is 810 mm (31.9"), the long Z that lets tools up to 450 mm (17.7") retract clear of a fixture. Maximum work swing is Ø762 mm (Ø30") and each pallet takes 500 kg (1,102 lbs).
Where the cell departs from the standalone machine is in capacity for unattended hours. The magazine has 240 positions as standard. Pallets move between a matrix type external store and the work zone through a swing type internal changer. Quaser presents the FMC series as scalable, from one machine to multiple production lines, with simple installation.
Two figures deserve a check against your parts. Work piece height is 740 mm (29.1"), lower than the 900 mm (35.4") of the HX504. And the spindle is listed at 9K ~ 15K. If the family of parts includes heavy iron that wants big cutters, compare the HX505 Cell: it trades this machine's 240 tools for 150, and gains tools of 110 mm (4.3") diameter with a full magazine.
Full Specifications
| Parameter | Value |
|---|---|
| Pallet Size | □500 mm (□19.7") |
| Max Work Swing Diameter | Ø762 mm (Ø30") |
| Max Work Piece Height | 740 mm (29.1") |
| X Axis Travel | 762 mm (30") |
| Y Axis Travel | 640 mm (25.2") |
| Z Axis Travel | 810 mm (31.9") |
| B Axis Min Indexing Degree | 1 / 0.001 |
| Max Table Load | 500 kg (1,102 lbs) |
| Spindle Taper | 40 taper |
| Max Spindle Speed | 9K ~ 15K |
| Number of Pallets | 8 or 14 |
| Pallet Changer and Storage Type | Swing type (internal) / Matrix type (External) |
| Tool Capacity | 240 (std.) |
| Max Tool Diameter (full magazine) | 76.2 mm (3") |
| Max Tool Diameter Neighbor Pots Empty | 150 mm (5.9") |
| Max Tool Length | 450 mm (17.7") |
Specifications sourced from quaser.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 8 or 14 pallets of 500 mm (□19.7"), each rated for 500 kg (1,102 lbs)
- 240 tool positions as standard, more than the 150 of the HX505 Cell
- 810 mm (31.9") of Z travel and tools up to 450 mm (17.7") long
- Matrix type external pallet storage with swing type internal changer
- Tools up to 150 mm (5.9") in diameter with neighboring pots empty
Limitations
- Maximum work piece height drops to 740 mm (29.1") from the 900 mm (35.4") of the HX504
- Spindle listed at 9K ~ 15K; no power or torque is published
- Full-magazine tool diameter is 76.2 mm (3"), against 110 mm (4.3") on the HX505 Cell
- No footprint or pallet exchange time is given for the cell
Best For
Frequently Asked Questions
01
It is a horizontal machining center of the FMC series with built-in pallet storage: 8 or 14 pallets of 500 mm (□19.7"), a swing type internal changer, a matrix type external store and 240 tool positions as standard. Quaser describes the series as an automated solution to maximize productivity.
02
Travels are 762 mm (30") in X, 640 mm (25.2") in Y and 810 mm (31.9") in Z. The maximum work swing diameter is Ø762 mm (Ø30"), the maximum work piece height is 740 mm (29.1") and the pallet load is 500 kg (1,102 lbs).
03
The HX504 Cell has a 40 taper spindle listed at 9K ~ 15K, 240 tools and 810 mm (31.9") of Z travel. The HX505 Cell has a 50 taper spindle listed at 6K ~ 10K, 150 tools and 800 mm (31.5") of Z, with a slightly larger Ø800 mm (Ø31.5") swing. Pallet size, pallet count and load are the same.
04
Up to 76.2 mm (3") in diameter with adjacent pots filled, 150 mm (5.9") with neighboring pots empty, and 450 mm (17.7") in length. The 240-position magazine leaves room for duplicate tools on long unattended runs.
