HNK HPM-30H (30x80)
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
distance between columns
distance spindle nose to table
How much does the HNK HPM-30H (30x80) cost?
Price estimate
We do not have a price for the HNK HPM-30H (30x80) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Eight metres of table at three metres wide: the HNK HPM-30H (30x80) measures 3,000 x 8,000 mm (118.1 x 315.0 in) and travels 8,250 mm (324.8 in) in X. Its spindle still turns at 6,000 rpm, with 8,000 rpm in braces.
This is the shortest route in HNK's range to an eight-metre die and mold machine. The same table format appears in the heavy HPM-30L (30x80), but that machine has a 2,000 rpm spindle and a 50,000 kg (110,229 lb) table. Here the table is rated at 25,000 kg (55,115 lb) and the spindle is three times as fast. The two machines answer different questions: one removes metal from heavy castings and weldments, the other finishes sculptured surfaces.
Geometry follows the HPM-30H (30x60). Columns are 4,000 mm (157.5 in) apart, Y is 5,000 mm (196.9 in), the crossrail rises 1,500 mm (59.1 in) and the 400 x 400 mm (15.7 x 15.7 in) ram strokes 800 mm (31.5 in).
Typical work would be a complete body-side die, or a pair of dies loaded together and cut alternately. Motor power is 22/25 kW (29.5/33.5 hp), cont/30min.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 4,000 mm (157.5 in) |
| Distance Spindle Nose to Table | 2,000 mm (78.7 in) {2,350 mm (92.5 in)} |
| X Axis Travel | 8,250 mm (324.8 in) |
| Y Axis Travel | 5,000 mm (196.9 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| W Axis Travel | 1,500 mm (59.1 in) |
| Table Size | 3,000 x 8,000 mm (118.1 x 315.0 in) |
| Max Table Load | 25,000 kg (55,115 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø100 mm (3.9 in) |
| Ram Size | 400 x 400 mm (15.7 x 15.7 in) |
| Max Spindle Speed | 6,000 rpm {8,000 rpm} |
| Spindle Motor Power | 22/25 kW (29.5/33.5 hp) (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 8,250 mm (324.8 in) of X travel with a 6,000 rpm spindle
- 3,000 x 8,000 mm (118.1 x 315.0 in) table
- Crossrail travel of 1,500 mm (59.1 in)
- Room for two dies on one table
Limitations
- Table load of 25,000 kg (55,115 lb) across eight metres
- 22/25 kW (29.5/33.5 hp) is light for roughing large castings
- Z travel of 800 mm (31.5 in) on the ram
Best For
Frequently Asked Questions
01
Both have a 3,000 x 8,000 mm table and 8,250 mm of X. The HPM-30L (30x80) lists 2,000 rpm, a Ø130 mm (5.1 in) spindle, a 500 x 500 mm (19.7 x 19.7 in) ram and 50,000 kg (110,229 lb) of load. The HPM-30H lists 6,000 rpm, Ø100 mm, 400 x 400 mm and 25,000 kg.
02
5,000 mm (196.9 in), across columns set 4,000 mm (157.5 in) apart. The table is 3,000 mm (118.1 in) wide, so the head can travel well beyond both table edges.
03
The 8,000 mm (315.0 in) table length allows two set-ups in a row, and the table travels 8,250 mm (324.8 in). The combined weight has to stay within 25,000 kg (55,115 lb), which is the limit for the whole table.
04
ISO No.50 taper on a Ø100 mm (3.9 in) spindle, in a ram of 400 x 400 mm (15.7 x 15.7 in). Ram travel is 800 mm (31.5 in), supplemented by 1,500 mm (59.1 in) of crossrail movement.
More from HNK
Other Vertical Machining Centers (VMC)
Leadwell V-30iT
Vision Wide GSA-2232

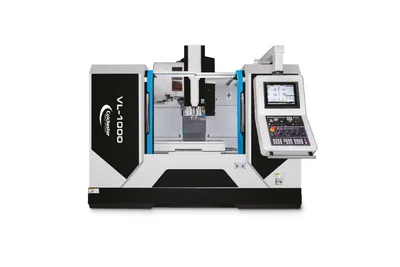

Colchester Storm VL-1000
DN Solutions T 4000 L

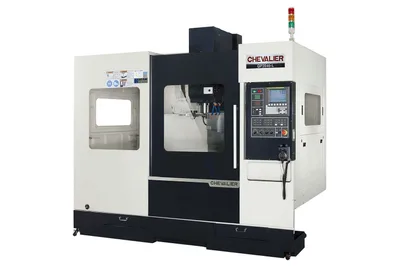

Chevalier QP2040-L
