Pinnacle L210B

Q: How much does the Pinnacle L210B cost?

The price estimate for the Pinnacle L210B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-l210b#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

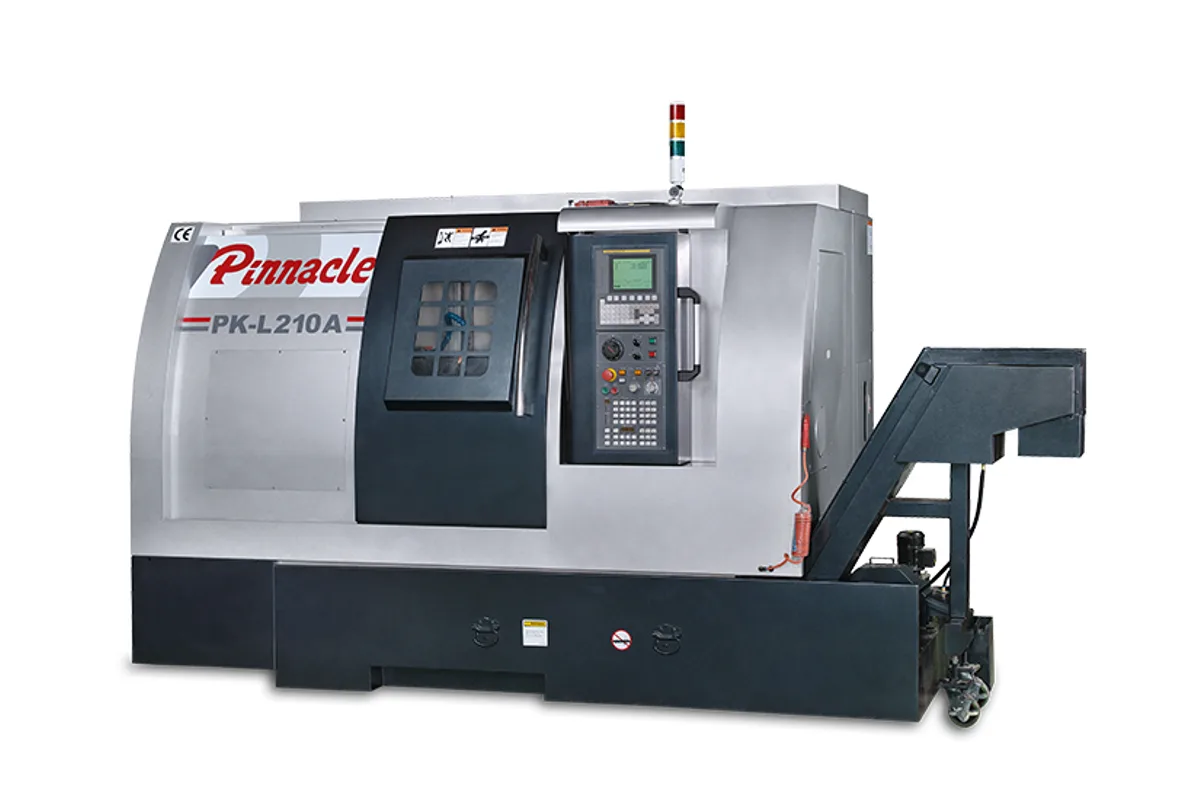

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Power

11 / 15 kW (14.8 / 20.1 hp)

Max Turn Length

610 mm (24.0 in)

swing over bed

Ø520 mm (Ø20.5 in)

swing over cross slide

Ø360 mm (Ø14.2 in)

distance between centers

610 mm (24.0 in)

max turning diameter

Ø440 mm (Ø17.3 in)

How much does the Pinnacle L210B cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle L210B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Pinnacle sells a 10 in chuck in two ways, and the Pinnacle L210B is the lighter of them: the larger chuck on the A2-6 spindle of the L210A, keeping 45 - 4,500 rpm and the 11 / 15 kW (14.8 / 20.1 hp) motor.

The alternative is the L210C, which carries its 10 in chuck on an A2-8 spindle with a 15 / 18.5 kW (20.1 / 24.8 hp) motor, 35 - 3,500 rpm and Ø77 mm (Ø3.0 in) of bar capacity. So the L210B suits chucked parts that need the bigger jaws but not the bigger bore: its bar capacity stays at Ø65 mm (Ø2.6 in) and its hole through the spindle at Ø77 mm (Ø3.0 in). It also stays on a 20 kVA supply where the L210C needs 30 kVA.

Everything around the spindle is shared across the range. Maximum turning diameter is Ø440 mm (Ø17.3 in) over a Ø520 mm (Ø20.5 in) swing, turning length is 610 mm (24.0 in), and travels are 210 mm (8.3 in) in X and 610 mm (24.0 in) in Z. The tailstock is MT4 with a Ø85 x 80 mm (Ø3.3 x 3.1 in) quill and 470 mm (18.5 in) of travel.

The chuck is hydraulic and operated by a foot switch. Ten tools sit in the turret, indexed in 0.13 sec. At 4,100 kg (9,039 lb) the L210B is 2.7 x 1.6 x 1.8 m overall and needs air at 6 kg/cm².

Full Specifications

Parameter	Value
Swing Over Bed	Ø520 mm (Ø20.5 in)
Swing Over Cross Slide	Ø360 mm (Ø14.2 in)
Distance Between Centers	610 mm (24.0 in)
Max Turning Diameter	Ø440 mm (Ø17.3 in)
Standard Turning Diameter	Ø290 mm (Ø11.4 in)
Max Turning Length	610 mm (24.0 in)
Spindle Motor Power	11 / 15 kW (14.8 / 20.1 hp)
Spindle Speed	45 - 4,500 rpm
Spindle Nose	A2-6
Chuck Size	10"
Spindle Bore	Ø77 mm (Ø3.0 in)
Bar Capacity	Ø65 mm (Ø2.6 in)
Tailstock Taper	MT4
Tailstock Quill Diameter X Travel	Ø85 x 80 mm (Ø3.3 x 3.1 in)
Tailstock Travel	470 mm (18.5 in)
X Axis Travel	210 mm (8.3 in)
Z Axis Travel	610 mm (24.0 in)
Rapid Traverse Xz	20 / 24 m/min
Cutting Feed Rate	0.016 ~ 5,000 mm/min
Turret Stations	10
Turret Index Time	0.13 sec (T-T)
Tool Shank Size	□25 mm (□1.0 in)
Boring Bar Diameter	Ø40 mm (Ø1.6 in)
Power Requirement	Ø3, 20 kVA
Air Requirement	6 kg/cm²
Machine Dimensions	2.7 x 1.6 x 1.8 m (L x W x H)
Machine Weight	4,100 kg (9,039 lb)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

10 in chuck with the 45 - 4,500 rpm speed range of the smaller spindle
Runs on 20 kVA, where the 10 in L210C needs 30 kVA
Hydraulic chuck operated by a foot switch
Tailstock quill of Ø85 x 80 mm (Ø3.3 x 3.1 in) on 470 mm (18.5 in) of tailstock travel

Limitations

Bar capacity stays at Ø65 mm (Ø2.6 in) despite the larger chuck
11 / 15 kW (14.8 / 20.1 hp) motor; the L210C has 15 / 18.5 kW (20.1 / 24.8 hp) for the same chuck size
Turret is limited to 10 stations of □25 mm (□1.0 in) tooling

Best For

Chucked parts that need 10 in jaws at up to 4,500 rpm Flanges and discs within the Ø290 mm (Ø11.4 in) standard turning diameter Shops limited to a 20 kVA supply

Frequently Asked Questions

01 Should I choose the L210B or the L210C for a 10 in chuck?

Both list a 10 in chuck. The L210B has an A2-6 spindle nose, 45 - 4,500 rpm, 11 / 15 kW (14.8 / 20.1 hp) and Ø65 mm (Ø2.6 in) of bar capacity. The L210C has an A2-8 nose, 35 - 3,500 rpm, 15 / 18.5 kW (20.1 / 24.8 hp) and Ø77 mm (Ø3.0 in) of bar capacity. Pick by speed or by bore and power.

02 How fast does the Pinnacle L210B spindle run?

The range is 45 - 4,500 rpm on an 11 / 15 kW (14.8 / 20.1 hp) spindle motor. Pinnacle describes the spindle as supported by precision high speed angular ball bearings to increase rigidity and extend bearing life.

03 What is the tailstock on the L210B?

An MT4 tailstock with a quill of Ø85 x 80 mm (Ø3.3 x 3.1 in) and 470 mm (18.5 in) of tailstock travel. Distance between centers is 610 mm (24.0 in), which is also the maximum turning length.

04 How much does the L210B weigh?

4,100 kg (9,039 lb), with overall dimensions of 2.7 x 1.6 x 1.8 m (length, width, height). The L210A with the 8 in chuck weighs 4,000 kg (8,818 lb). Power requirement is 20 kVA and air requirement is 6 kg/cm².
