Pinnacle PK-L210A/BMY

Q: How much does the Pinnacle PK-L210A/BMY cost?

The price estimate for the Pinnacle PK-L210A/BMY is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-pk-l210a-bmy#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

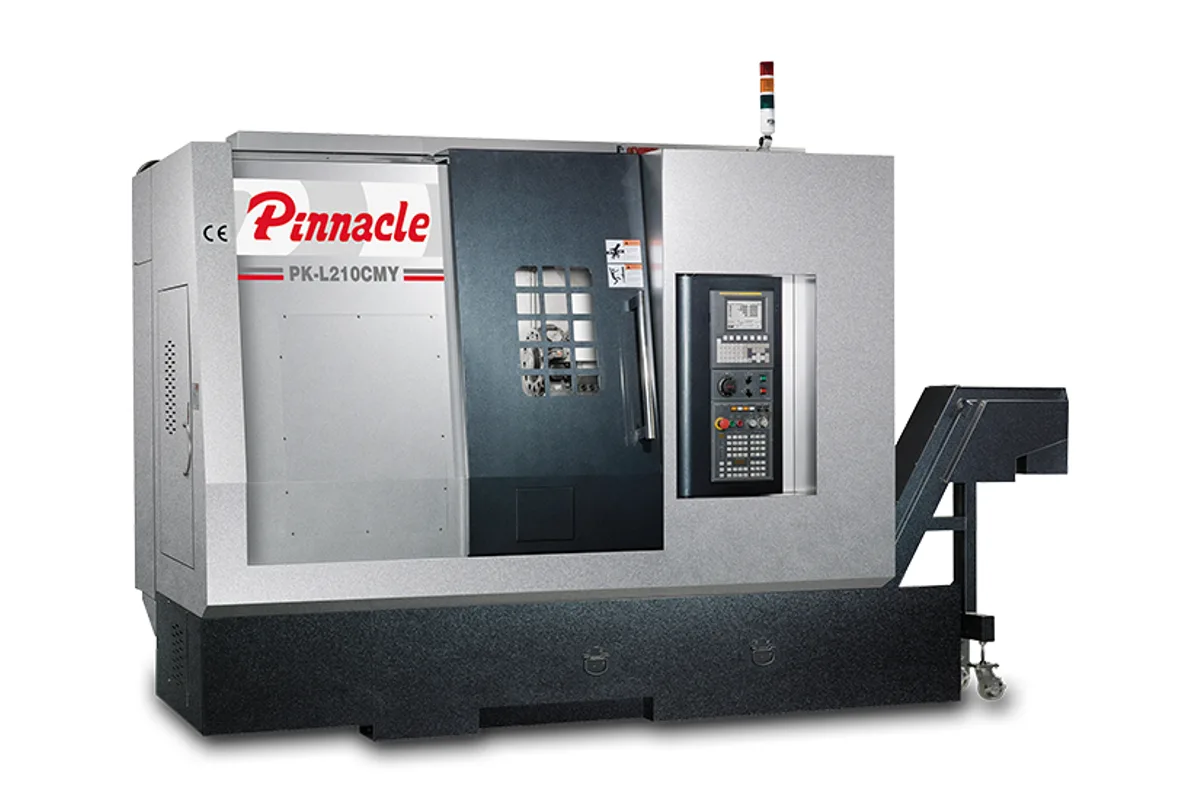

Pinnacle PK-L210 MY series (PK-L210CMY shown)

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Power

11 / 15 kW (14.8 / 20.1 hp)

Max Turn Length

570 mm (22.4 in)

swing over bed

Ø750 mm (Ø29.5 in)

swing over cross slide

Ø650 mm (Ø25.6 in)

max turning diameter

Ø330 mm (Ø13.0 in)

spindle speed

45 - 4,500 rpm

How much does the Pinnacle PK-L210A/BMY cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle PK-L210A/BMY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle PK-L210A/BMY is a slant bed turning center with a VDI 30 live tooling turret and a Y axis of 80 mm (3.1 in), listed as ±40 mm. It mills, drills and taps on a turned part in the same chucking, using a C axis that positions to 0.001 degree.

The table covers two chuck sizes in one column, 8 in and 10 in, both on an A2-6 spindle with an 11 / 15 kW (14.8 / 20.1 hp) motor and 45 - 4,500 rpm. Bar capacity is Ø65 mm (Ø2.6 in). The M function speed row gives 5,000 rpm, which reads as the speed of the driven tools; Pinnacle does not label it further.

Adding the Y axis changes the machine around the spindle. Compared with the plain L210A, maximum turning diameter comes down from Ø440 mm (Ø17.3 in) to Ø330 mm (Ø13.0 in) and turning length from 610 mm (24.0 in) to 570 mm (22.4 in), while weight rises from 4,000 kg (8,818 lb) to 5,500 kg (12,125 lb). The turret has 12 stations where the L210A has 10.

X travel is 195 mm (7.7 in), printed as 165+30, and Z is 570 mm (22.4 in). The rapid speed row prints three values, 20 / 24 / 8 m/min, under an X/Z heading. The tailstock is programmable and driven by the saddle, with a hydraulic, programmable quill. Overall size is 3.8 x 1.7 x 2.3 m and the supply is 20 kVA.

Full Specifications

Parameter	Value
Swing Over Bed	Ø750 mm (Ø29.5 in)
Swing Over Cross Slide	Ø650 mm (Ø25.6 in)
Max Turning Diameter	Ø330 mm (Ø13.0 in)
Max Turning Length	570 mm (22.4 in)
Spindle Motor Power	11 / 15 kW (14.8 / 20.1 hp)
Spindle Speed	45 - 4,500 rpm
Spindle Nose	A2-6
Chuck Size	8", 10"
Spindle Bore	Ø77 mm (Ø3.0 in)
Bar Capacity	Ø65 mm (Ø2.6 in)
Tailstock Taper	MT4
X Axis Travel	195 (165+30) mm (7.7 (6.5+1.2) in)
Z Axis Travel	570 mm (22.4 in)
Y Axis Travel	80 (±40) mm (3.1 (±1.6) in)
Rapid Traverse Xz	20 / 24 / 8 m/min
Cutting Feed Rate	0.016 ~ 5,000 mm/min
Turret Stations	12
Turret Index Time	0.14 sec (T-T)
Tool Shank Size	VDI30 / □20
Boring Bar Diameter	Ø32 mm (Ø1.3 in)
M Function Speed	5,000 rpm
Power Requirement	Ø3, 20 kVA
Machine Dimensions	3.8 x 1.7 x 2.3 m (L x W x H)
Machine Weight	5,500 kg (12,125 lb)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Y axis of 80 mm (3.1 in), ±40 mm, for off-centre milling and drilling
VDI 30 live tooling turret with 12 stations
C axis positioning to 0.001 degree
Programmable tailstock and hydraulic programmable quill
Ø65 mm (Ø2.6 in) bar capacity at 45 - 4,500 rpm

Limitations

Maximum turning diameter is Ø330 mm (Ø13.0 in), less than the Ø440 mm (Ø17.3 in) of the L210A
No sub-spindle is listed, so the back of the part needs a second operation
Y travel of ±40 mm limits how far off centre a feature can sit
The third rapid value is 8 m/min, well below the 20 and 24 m/min of the other two

Best For

Turned parts with cross holes, flats and keyways finished in one chucking Bar-fed parts up to Ø65 mm (Ø2.6 in) that need milling as well as turning Shaft work using the programmable tailstock within 570 mm (22.4 in)

Frequently Asked Questions

01 What can the Pinnacle PK-L210A/BMY do that the L210A cannot?

Milling, drilling and tapping with driven tools. Pinnacle describes a VDI 30 living tooling turret with a Y-axis (±40mm) for eccentric operation and a C-axis with 0.001 degree positioning. The L210A is a plain X and Z lathe with a 10-station turret.

02 Which chuck sizes are listed for the PK-L210A/BMY?

The chuck row lists 8 in and 10 in. The spindle nose is A2-6, the hole through the spindle is Ø77 mm (Ø3.0 in) and bar capacity is Ø65 mm (Ø2.6 in). The larger PK-L210C/DMY lists 10 in and 12 in chucks on an A2-8 nose.

03 How far does the Y axis travel on the PK-L210A/BMY?

Y axis travel is 80 mm (3.1 in), given as ±40 mm. X travel is 195 mm (7.7 in) and Z travel is 570 mm (22.4 in). Maximum turning length is also 570 mm (22.4 in).

04 Does the PK-L210A/BMY have a tailstock or a sub-spindle?

A tailstock. The table lists an MT4 tailstock taper, and Pinnacle describes the tailstock as programmable and driven by the saddle, with a hydraulic quill that is programmable as well. No sub-spindle appears in the specification table.
