Pinnacle PK-L210C/DMY

Q: How much does the Pinnacle PK-L210C/DMY cost?

The price estimate for the Pinnacle PK-L210C/DMY is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-pk-l210c-dmy#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

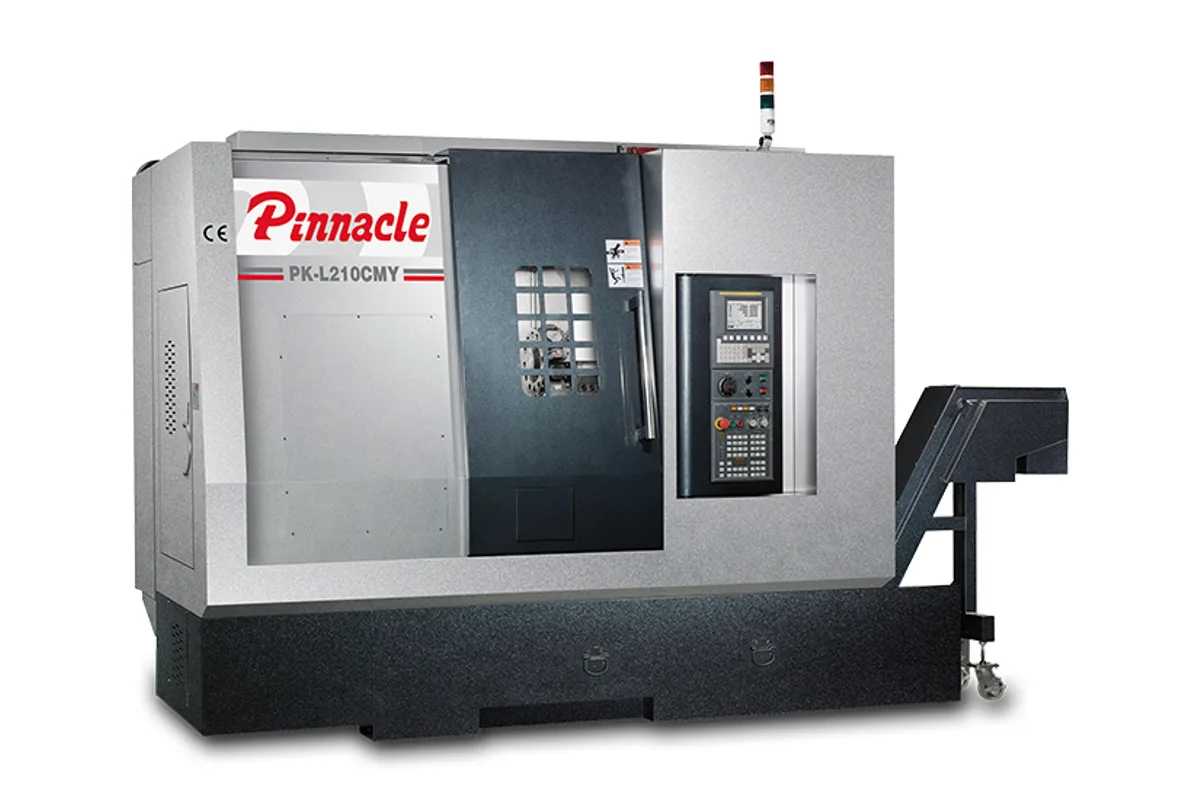

Pinnacle PK-L210 MY series (PK-L210CMY shown)

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Power

15 / 18.5 kW (20.1 / 24.8 hp)

Max Turn Length

570 mm (22.4 in)

swing over bed

Ø750 mm (Ø29.5 in)

swing over cross slide

Ø650 mm (Ø25.6 in)

max turning diameter

Ø330 mm (Ø13.0 in)

spindle speed

35 - 3,500 rpm

How much does the Pinnacle PK-L210C/DMY cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle PK-L210C/DMY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle PK-L210C/DMY combines Pinnacle's larger lathe spindle with driven tools and a Y axis: an A2-8 nose, Ø77 mm (Ø3.0 in) of bar capacity and a 15 / 18.5 kW (20.1 / 24.8 hp) motor in front of a 12-station VDI 30 turret.

It is the heavier-duty of the two MY machines. The PK-L210A/BMY has the A2-6 spindle with Ø65 mm (Ø2.6 in) of bar capacity, 45 - 4,500 rpm and a 20 kVA supply; this model runs 35 - 3,500 rpm and needs 30 kVA. Chucks are listed as 10 in and 12 in. The weight difference is small, 5,600 kg (12,346 lb) here against 5,500 kg (12,125 lb) for the PK-L210A/BMY.

For milling, the turret offers driven tools at an M function speed of 5,000 rpm and a Y axis of 80 mm (3.1 in), ±40 mm. Pinnacle presents the Y axis as a way to do eccentric operations and cut machining time on complex parts. The C axis positions in 0.001 degree steps for drilling at set angular positions. Boring bars up to Ø32 mm (Ø1.3 in) fit the turret.

Turning capacity is Ø330 mm (Ø13.0 in) by 570 mm (22.4 in), under a Ø750 mm (Ø29.5 in) swing over the bed. The spindle has radiation fins and exhaust holes for heat removal, which Pinnacle ties to accuracy and spindle life. A programmable tailstock on an MT4 taper supports longer parts. The machine measures 3.8 x 1.7 x 2.3 m.

Full Specifications

Parameter	Value
Swing Over Bed	Ø750 mm (Ø29.5 in)
Swing Over Cross Slide	Ø650 mm (Ø25.6 in)
Max Turning Diameter	Ø330 mm (Ø13.0 in)
Max Turning Length	570 mm (22.4 in)
Spindle Motor Power	15 / 18.5 kW (20.1 / 24.8 hp)
Spindle Speed	35 - 3,500 rpm
Spindle Nose	A2-8
Chuck Size	10", 12"
Spindle Bore	Ø88 mm (Ø3.5 in)
Bar Capacity	Ø77 mm (Ø3.0 in)
Tailstock Taper	MT4
X Axis Travel	195 (165+30) mm (7.7 (6.5+1.2) in)
Z Axis Travel	570 mm (22.4 in)
Y Axis Travel	80 (±40) mm (3.1 (±1.6) in)
Rapid Traverse Xz	20 / 24 / 8 m/min
Cutting Feed Rate	0.016 ~ 5,000 mm/min
Turret Stations	12
Turret Index Time	0.14 sec (T-T)
Tool Shank Size	VDI30 / □20
Boring Bar Diameter	Ø32 mm (Ø1.3 in)
M Function Speed	5,000 rpm
Power Requirement	Ø3, 30 kVA
Machine Dimensions	3.8 x 1.7 x 2.3 m (L x W x H)
Machine Weight	5,600 kg (12,346 lb)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Ø77 mm (Ø3.0 in) bar capacity with live tooling and a Y axis
15 / 18.5 kW (20.1 / 24.8 hp) spindle motor on an A2-8 nose
Driven tools at 5,000 rpm with a C axis positioning to 0.001 degree
Spindle with radiation fins and exhaust holes for heat removal
Programmable tailstock and quill

Limitations

Spindle speed tops out at 3,500 rpm
Needs 30 kVA and a 3.8 x 1.7 x 2.3 m space
Maximum turning diameter of Ø330 mm (Ø13.0 in) is small for a 12 in chuck
Y travel is 80 mm (3.1 in) in total
No sub-spindle in the specification table

Best For

Large bar parts up to Ø77 mm (Ø3.0 in) with milled features Steel parts needing both heavy turning and cross drilling Complex turned parts finished in one setup with Y-axis milling

Frequently Asked Questions

01 How does the PK-L210C/DMY differ from the PK-L210A/BMY?

In the spindle. The PK-L210C/DMY has an A2-8 nose, a Ø88 mm (Ø3.5 in) bore, Ø77 mm (Ø3.0 in) of bar capacity, 15 / 18.5 kW (20.1 / 24.8 hp) and 35 - 3,500 rpm. The PK-L210A/BMY has an A2-6 nose, Ø65 mm (Ø2.6 in) of bar capacity, 11 / 15 kW (14.8 / 20.1 hp) and 45 - 4,500 rpm. Turret, Y axis and travels are the same.

02 What live tooling does the Pinnacle PK-L210C/DMY have?

A VDI 30 live tooling turret with 12 stations, which Pinnacle says offers milling, tapping, drilling and turning. The tool size row reads VDI30 / □20, boring tools go up to Ø32 mm (Ø1.3 in), and the M function speed is 5,000 rpm. Turret index time is 0.14 sec tool to tool.

03 What are the turning dimensions of the PK-L210C/DMY?

Maximum turning diameter is Ø330 mm (Ø13.0 in) and maximum turning length is 570 mm (22.4 in). Swing over the bed is Ø750 mm (Ø29.5 in) and swing over the cross slide is Ø650 mm (Ø25.6 in). X travel is 195 mm (7.7 in) and Z travel is 570 mm (22.4 in).

04 How is spindle heat handled on the PK-L210C/DMY?

Pinnacle describes a radiation fin design and exhaust heat holes on the spindle for heat removal, to ensure accuracy and enhance spindle life. The spindle runs on precision high speed angular ball bearings. Maximum speed is 3,500 rpm.
