Pinnacle L210D

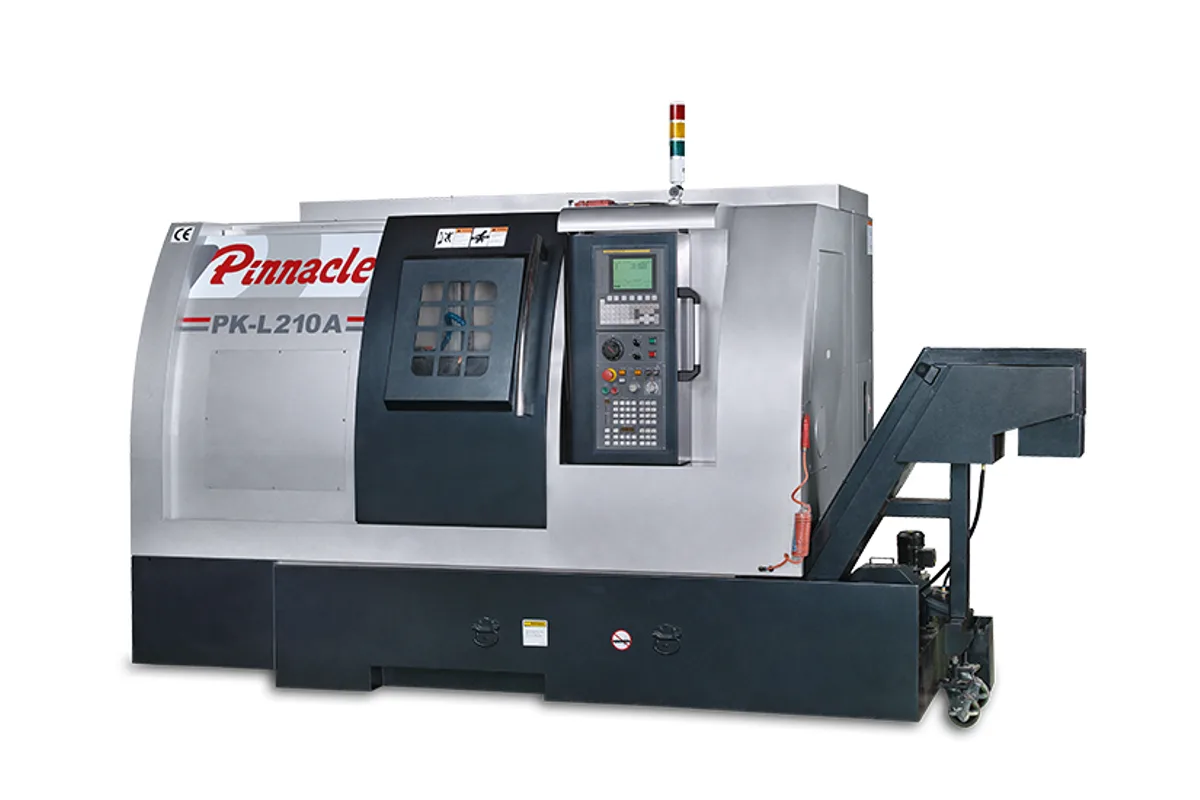

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Spindle Power
Max Turn Length
swing over bed
swing over cross slide
distance between centers
max turning diameter
How much does the Pinnacle L210D cost?
Price estimate
We do not have a price for the Pinnacle L210D that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle L210D carries the largest chuck in the L210 range, 12 in, on the A2-8 spindle with a 15 / 18.5 kW (20.1 / 24.8 hp) motor. It is the heaviest of the four at 4,300 kg (9,480 lb).
A 12 in chuck on this bed is a tight fit, and the figures show how. Swing over the cross slide is Ø360 mm (Ø14.2 in) and the standard turning diameter is Ø290 mm (Ø11.4 in), so the chuck body is larger than the standard turning diameter. Jaw and part diameters need checking against the turret before a job is quoted. Maximum turning diameter is Ø440 mm (Ø17.3 in).
The speed range starts lower than on any other L210: 30 - 3,500 rpm, where the L210C with the same spindle is listed from 35 rpm. A lower minimum suits facing cuts at big diameters.
Bar capacity is Ø77 mm (Ø3.0 in) through an Ø88 mm (Ø3.5 in) bore, though a machine with this chuck will mostly see castings, forgings and sawn blanks. Shaft work has 610 mm (24.0 in) between centers and an MT4 tailstock. The turret takes 25 x 25 mm O.D. tools and 40 mm boring tools in 10 stations. Supply is 30 kVA and the outline is 2.7 x 1.6 x 1.8 m.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø520 mm (Ø20.5 in) |
| Swing Over Cross Slide | Ø360 mm (Ø14.2 in) |
| Distance Between Centers | 610 mm (24.0 in) |
| Max Turning Diameter | Ø440 mm (Ø17.3 in) |
| Standard Turning Diameter | Ø290 mm (Ø11.4 in) |
| Max Turning Length | 610 mm (24.0 in) |
| Spindle Motor Power | 15 / 18.5 kW (20.1 / 24.8 hp) |
| Spindle Speed | 30 - 3,500 rpm |
| Spindle Nose | A2-8 |
| Chuck Size | 12" |
| Spindle Bore | Ø88 mm (Ø3.5 in) |
| Bar Capacity | Ø77 mm (Ø3.0 in) |
| Tailstock Taper | MT4 |
| Tailstock Quill Diameter X Travel | Ø85 x 80 mm (Ø3.3 x 3.1 in) |
| Tailstock Travel | 470 mm (18.5 in) |
| X Axis Travel | 210 mm (8.3 in) |
| Z Axis Travel | 610 mm (24.0 in) |
| Rapid Traverse Xz | 20 / 24 m/min |
| Cutting Feed Rate | 0.016 ~ 5,000 mm/min |
| Turret Stations | 10 |
| Turret Index Time | 0.13 sec (T-T) |
| Tool Shank Size | □25 mm (□1.0 in) |
| Boring Bar Diameter | Ø40 mm (Ø1.6 in) |
| Power Requirement | Ø3, 30 kVA |
| Air Requirement | 6 kg/cm² |
| Machine Dimensions | 2.7 x 1.6 x 1.8 m (L x W x H) |
| Machine Weight | 4,300 kg (9,480 lb) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 12 in chuck, the largest in the L210 range
- 30 - 3,500 rpm range with a 15 / 18.5 kW (20.1 / 24.8 hp) motor
- Ø88 mm (Ø3.5 in) spindle bore and Ø77 mm (Ø3.0 in) bar capacity
- Ø440 mm (Ø17.3 in) maximum turning diameter with 610 mm (24.0 in) between centers
Limitations
- Standard turning diameter is Ø290 mm (Ø11.4 in), smaller than the 12 in chuck
- X travel is 210 mm (8.3 in) on every L210, including this one
- 30 kVA supply and 4,300 kg (9,480 lb)
- Maximum speed of 3,500 rpm
Best For
Frequently Asked Questions
01
02
Maximum turning diameter is Ø440 mm (Ø17.3 in) and standard turning diameter is Ø290 mm (Ø11.4 in). Swing over the bed is Ø520 mm (Ø20.5 in) and over the cross slide Ø360 mm (Ø14.2 in). Turning length is 610 mm (24.0 in).
03
The L210D has a 12 in chuck, a 30 - 3,500 rpm speed range and weighs 4,300 kg (9,480 lb). The L210C has a 10 in chuck, 35 - 3,500 rpm and weighs 4,200 kg (9,259 lb). Spindle nose, bore, bar capacity, motor and power requirement are the same.
04
Yes. Bar capacity is Ø77 mm (Ø3.0 in) and the hole through the spindle is Ø88 mm (Ø3.5 in). Cutting feed is 0.016 ~ 5,000 mm/min and the 10-station turret indexes in 0.13 sec tool to tool.
