Fehlmann PICOMAX 56 TOP
Image: fehlmann.com, Fehlmann
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Fehlmann PICOMAX 56 TOP cost?
Price estimate
We do not have a price for the Fehlmann PICOMAX 56 TOP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

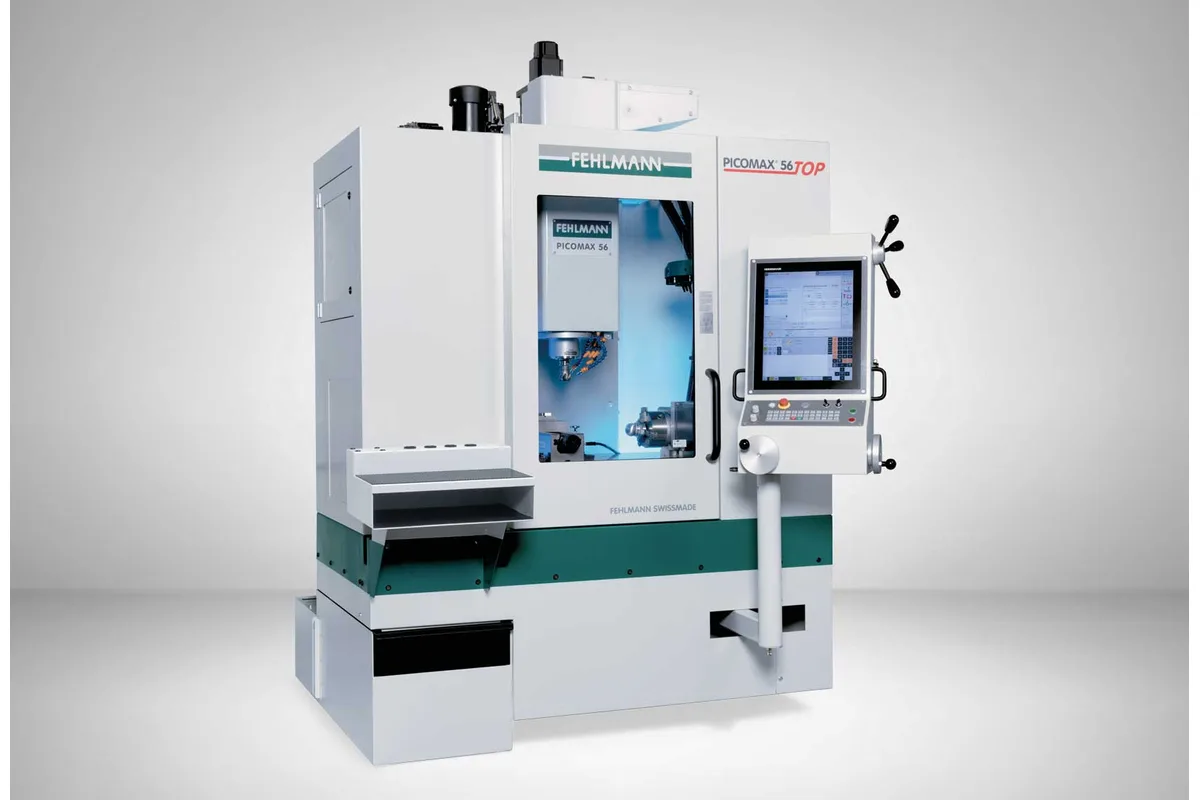

The Fehlmann PICOMAX 56 TOP is a 3-axis milling and drilling machine that can be run two ways: as a CNC machine under a Heidenhain TNC 620, or by hand with a drilling lever and handwheels. TOP stands for Touch Or Program. Travels are 500 mm (19.7 in) in X and 400 mm (15.7 in) in both Y and Z, over a 908 x 480 mm (35.7 x 18.9 in) clamping surface.
The manual side is how Fehlmann expects one-off jobs to be done. A hole pattern, a pocket or a thread on a single part is made with the TOP functions and the drilling lever without writing a program, and the maker says operators manage this after a short training period even without programming knowledge. When the part is complex, the same machine runs it from the TNC 620 with graphically supported cycles.
The cooled motor spindle runs 50 - 12,000 rpm with 9.5 kW (12.7 hp) at S6 (40% ED), and Fehlmann quotes a torque of 60 Nm and milling and drilling in steel up to Ø 40 mm. Tools are changed by hand on the standard machine. An automatic tool changer with 20 or 30 pockets is an option, and so is a CNC dividing unit for 4-axis work, which the table is large enough to pair with a tailstock.
It is a small machine: 1.7 / 1.9 / 2.5 m (width / depth / height) and 3,050 kg (6,724 lb) without the tool changer, or 3,250 kg (7,165 lb) with the 20-pocket changer. The table-to-spindle-nose distance is 120 - 520 mm. If the parts are long, the PICOMAX 56L TOP stretches X travel to 800 mm on a 1,400 x 480 mm table.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 500 mm (19.7 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Z Axis Travel | 400 mm (15.7 in) |
| Table Size | 908 x 480 mm (35.7 x 18.9 in) |
| Distance Spindle Nose to Table | 120 - 520 mm (4.7 - 20.5 in) |
| Max Spindle Speed | 50 - 12,000 rpm |
| Spindle Motor Power | 9.5 kW (12.7 hp) at S6 (40% ED) |
| Tool Capacity | 20 or 30 (optional tool changer) |
| CNC Control | Heidenhain TNC 620 |
| Machine Dimensions | 1.7 / 1.9 / 2.5 m (66.9 / 74.8 / 98.4 in), width / depth / height |
| Machine Weight | 3,050 kg (6,724 lb) without tool changer |
| Machine Weight with Tool Changer | 3,250 kg (7,165 lb) with tool changer (20 pockets) |
Specifications sourced from fehlmann.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Runs as a CNC machine or manually with a drilling lever and handwheels
- Heidenhain TNC 620 multi-touch control with graphically supported cycles
- Cooled motor spindle, 50 - 12,000 rpm and 9.5 kW (12.7 hp), with 60 Nm of torque
- 908 x 480 mm (35.7 x 18.9 in) clamping surface takes several clamping setups at once
- Direct path measuring systems on the axes
- Compact: 1.7 m wide and 1.9 m deep, 3,050 kg (6,724 lb) without tool changer
Limitations
- The automatic tool changer, with 20 or 30 pockets, is optional; the base machine has manual tool change
- X travel is 500 mm (19.7 in); long parts need the PICOMAX 56L TOP with 800 mm
- Spindle power is 9.5 kW (12.7 hp), with drilling in steel quoted up to Ø 40 mm
- The specification states no rapid traverse or feed rate
Best For
Frequently Asked Questions
01
Touch Or Program. It is Fehlmann's name for an operating concept that combines CNC controlled 3-axis machining with manual operation using a drilling lever and handwheels. The operator chooses per task: touch the handwheels for a simple cut, or program the Heidenhain TNC 620 for a complex one.
02
Not for simple work. Fehlmann designed the TOP functions for milling, drilling and threading on single parts without time-consuming programming, and says operators can run the machine after a short initial training period even without previous programming knowledge. Complex parts are programmed on the TNC 620 with graphically supported cycles.
03
Only as an option. The standard machine is arranged for quick manual tool changes. An automatic tool changer for 20 or 30 tools can be ordered, and with the 20-pocket changer the weight rises from 3,050 kg (6,724 lb) to 3,250 kg (7,165 lb).
04
A cooled motor spindle with a speed range of 50 - 12,000 rpm and 9.5 kW (12.7 hp) at S6 (40% ED). Fehlmann also quotes a torque of 60 Nm and gives milling and drilling in steel up to Ø 40 mm as the capacity. The distance from table to spindle nose is 120 - 520 mm.
05
Both pages list the same travels, table, spindle and Heidenhain TNC 620. The difference is the manual operating concept. The PICOMAX 56 TOP is worked by hand with a drilling lever and handwheels through the TOP functions. The PICOMAX 56 mill has three handwheels for X, Y and Z and a key switch that turns it into a simple conventional machine, which Fehlmann aims at vocational training.
