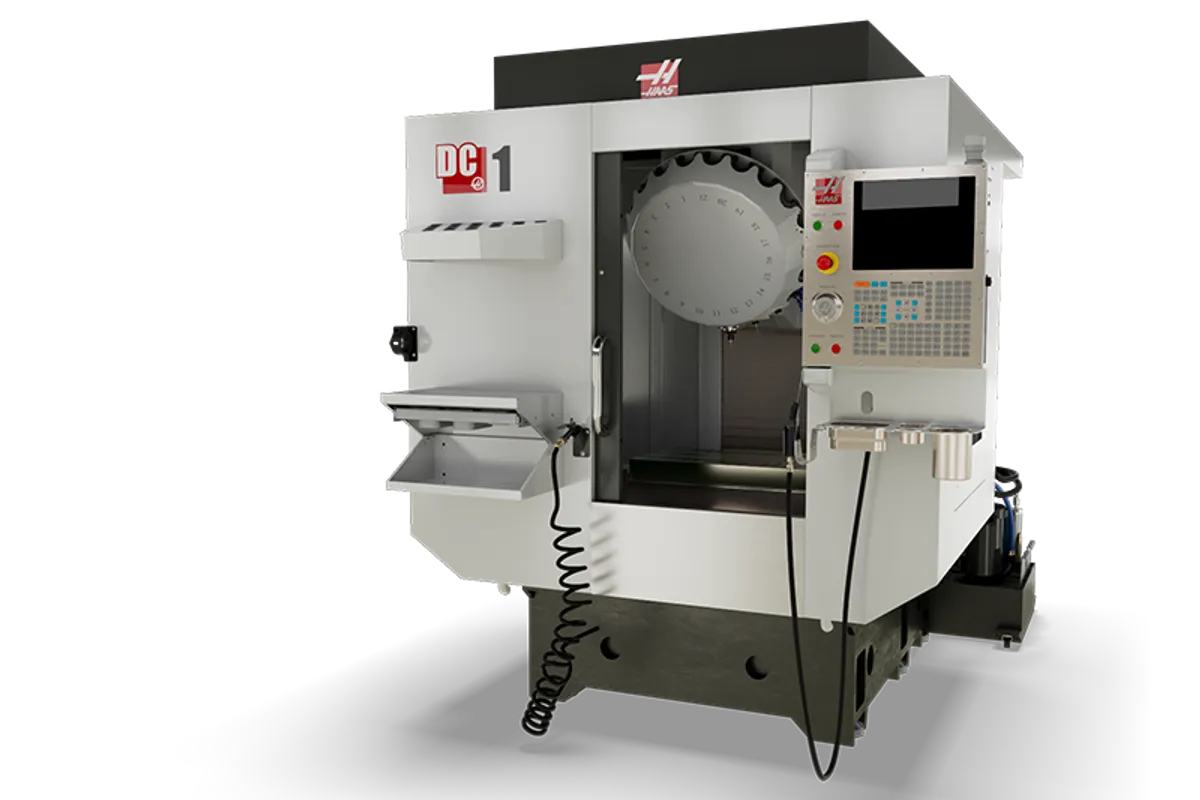

Haas DC-1 Drill Center

$55,000 - $70,000 Updated 2026-03-19

Key Specifications

X Travel

508 mm (20 in)

Y Travel

305 mm (12 in)

Z Travel

394 mm (15.5 in)

Max Spindle

10000 rpm

Spindle Taper

BT30

Tool Capacity

21-station side-mount

Overview

The Haas DC-1 Drill Center is the BT30 version of the DC-1 platform, optimized purely for high-speed drilling and tapping. With a BT30 inline direct-drive spindle spinning at 10,000 RPM, 2,400 IPM rapids on all axes, and a 21-station side-mount tool changer, this machine puts holes in parts as fast as any machine in its price range.

The spindle delivers 11.2 kW (15 hp) with 62 Nm (46 ft-lb) of torque at 1,700 RPM. The direct-drive design eliminates belt harmonics for smooth, vibration-free high-speed operation. Optional 12,000, 15,000, and 20,000 RPM spindle upgrades push surface speeds higher for small-diameter tooling. High-speed rigid tapping runs at up to 5,000 RPM with 4x retract speed.

Axis travels are 508 x 305 x 394 mm (20 x 12 x 15.5 in). The 660 x 305 mm (26 x 12 in) T-slot table handles up to 91 kg (200 lb). The 21-station side-mount tool changer delivers 1.6-second chip-to-chip time, minimizing non-cutting time on every cycle.

Rear chip discharge is standard, designed for high-volume production lines where chips need to exit the work zone automatically. The compact footprint makes integration into automated cells straightforward.

At approximately $55,000-$70,000 configured, the DC-1 Drill Center is Haas's entry-level high-speed machining center. It competes directly with the Fanuc Robodrill and Brother Speedio in the drill/tap segment. While those machines offer slightly better acceleration and interpolation, the DC-1 matches their rapid speed at a lower price with the advantage of Haas's dealer network. Popular in automotive, electronics, medical, and any production environment where drill-and-tap cycle time drives throughput. Specs sourced from Haas DC-1 published data.

Full Specifications

Parameter	Value
X-Axis Travel	508 mm (20 in)
Y-Axis Travel	305 mm (12 in)
Z-Axis Travel	394 mm (15.5 in)
Max Spindle Speed	10000 rpm
Spindle Taper	BT30
Spindle Motor Power	15.0 hp
Spindle Torque	62 Nm (46 ft-lb) @ 1,700 RPM
Spindle Drive	Inline Direct-Drive
Tool Capacity	21-station side-mount
Chip To Chip	2.50 s
Max Tool Diameter	2.4 in
Max Tool Length	7.90 in
Table Size	660 x 305 mm (26 x 12 in)
Table T Slots	3 slots, 16 mm (5/8 in) width
Max Table Load	91 kg (200 lb)
Rapid Traverse Rate	61.0 m/min (2,400 IPM) all axes
Max Cutting Feed	30.5 m/min (1,200 IPM)
Max Tapping Speed	5,000 RPM
Positioning Accuracy	±0.010 mm (±0.0004 in)
Repeatability	±0.005 mm (±0.0002 in)
Chip Discharge	Rear discharge standard
Machine Weight	2,268 kg (5,000 lb)
Coolant Capacity	40 gal
CNC Control	Haas Next Generation Control (NGC)
Travels	S.A.E
X Axis	23.60 in
Y Axis	17.70 in
Z Axis	13.00 in
Spindle Nose To Table	5.9 in
Spindle	S.A.E
Max Rating	15.0 hp
Max Speed	10000 rpm
Max Torque	14.0 ft-lbf @ 2500 rpm
Drive System	Inline Direct-Drive
Taper	BT30
Bearing Lubrication	Grease Packed
Cooling	Liquid Cooled
Table	S.A.E
Length	27.6 in
Width	16.5 in
T Slot Width	0.550 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	3
Max Weight On Table	550 lb
Feedrates	S.A.E
Max Cutting	1200 ipm
Rapids On X	1890 ipm
Rapids On Y	1890 ipm
Rapids On Z	1890 ipm
Axis Motors	S.A.E
Max Thrust X	2054 lbf
Max Thrust Y	2054 lbf
Max Thrust Z	2054 lbf
Tool Changer	S.A.E
Type	Turret
Capacity	21
Max Tool Diameter Large	3.1 in
Max Tool Weight	4.4 lb
Tool To Tool	1.50 s
Tapping	S.A.E
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	40 A
Input Ac Voltage High	440 VAC
Full Load Amps High	20 A
Dimensions Shipping	S.A.E
Domestic Pallet	100.0 in x 79.0 in x 100.0 in
Export Pallet	100.0 in x 79.0 in x 100.0 in
Machine Weight	7040 lb
Haas Rotary	HAAS MACHINE
Ha5c	DC-1
Ha5c T	DC-1
Ha5c2	DC-1
Ha5c2 T	DC-1
Ha5c3	DC-1
Ha5c3 T	DC-1
Ha5c4	DC-1
Ha5c4 T	DC-1
Ha5cs	DC-1
Hqda5	DC-1
Hrt100	DC-1
Hrt160	DC-1
Hrt160sp	DC-1
Hrt160ss	DC-1
Hrt200hs	DC-1
Hrt210	DC-1
Hrt210hs	DC-1
Hrt210ht	DC-1
Hrt210sp	DC-1
Hrt210ss	DC-1
Hrta5	DC-1
Hrta6	DC-1
T5c	DC-1
Th240	DC-1
Trt70	DC-1

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

2,400 IPM rapids on all axes with 1.6-second chip-to-chip tool changes deliver minimal non-cutting time per cycle
BT30 direct-drive spindle at 10,000 RPM provides smooth, vibration-free high-speed drilling and tapping
21-station tool changer holds enough tooling for complex drill patterns without running out of positions
High-speed rigid tapping at 5,000 RPM with 4x retract dramatically reduces tapping cycle time
Rear chip discharge keeps the work zone clean for high-volume production without operator intervention
At $55-70K, it undercuts comparable Fanuc Robodrill and Brother Speedio drill centers

Limitations

BT30 taper limits tooling rigidity compared to 40-taper machines for heavier drilling and milling work
200 lb table load capacity restricts workpiece size compared to 40-taper VMCs
20 x 12 inch travel limits the machine to smaller parts, plates, and brackets
Not suitable for deep pocketing, 3D surfacing, or operations requiring high spindle torque

Best For

High-volume drill-and-tap operations on plates, brackets, manifolds, and housings Automotive production lines running repetitive drilling and tapping cycles at maximum speed Electronics enclosure and heat sink manufacturers drilling hole patterns in aluminum Medical device production requiring precision hole patterns with fast cycle times Production cells needing a compact, fast machine for secondary drilling and tapping operations

Frequently Asked Questions

01 What does a new Haas DC-1 Drill Center cost?

Base price starts around $55,000. With high-speed spindle upgrade, through-spindle coolant, and probe, configured price runs $60,000-$70,000. The 21-station tool changer and rear chip discharge are standard.

02 What is the difference between the DC-1 and DC-1-40?

The DC-1 uses a BT30 taper for lighter, faster tooling ideal for small drill and tap work. The DC-1-40 uses CT/BT 40 for more tool rigidity with larger drills and light milling capability. Same travel and speed. Choose BT30 for maximum drill/tap speed; choose 40-taper for more versatility.

03 How does the DC-1 compare to the DT-2?

Both use BT30 spindles with similar speed. The DT-2 has a larger work envelope (28 x 16 x 15.5 in versus 20 x 12 x 15.5 in) and more table load. The DC-1 has rear chip discharge optimized for dedicated drilling lines. The DT-2 is more versatile; the DC-1 is purpose-built for drill/tap production.

04 Is the DC-1 suitable for robotic automation?

Yes. The rear chip discharge, compact footprint, and NGC control make the DC-1 ideal for robotic loading cells and multi-machine production lines. Haas offers automatic parts loader options for the DC platform.
