Palmary OIG-200D
Image: palmary.com, Palmary
Key Specifications
Max Spindle
max chuck diameter
max internal grinding diameter
max workpiece length
wheel spindle diameter
x axis rapid traverse
How much does the Palmary OIG-200D cost?
Price estimate
We do not have a price for the Palmary OIG-200D that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Palmary OIG-200D is a CNC internal grinder with two internal wheel spindles and a third linear axis, Y, to carry the second one. It grinds bores up to Ø150 mm (5.9 in) in parts up to 200 mm (7.9 in) long.

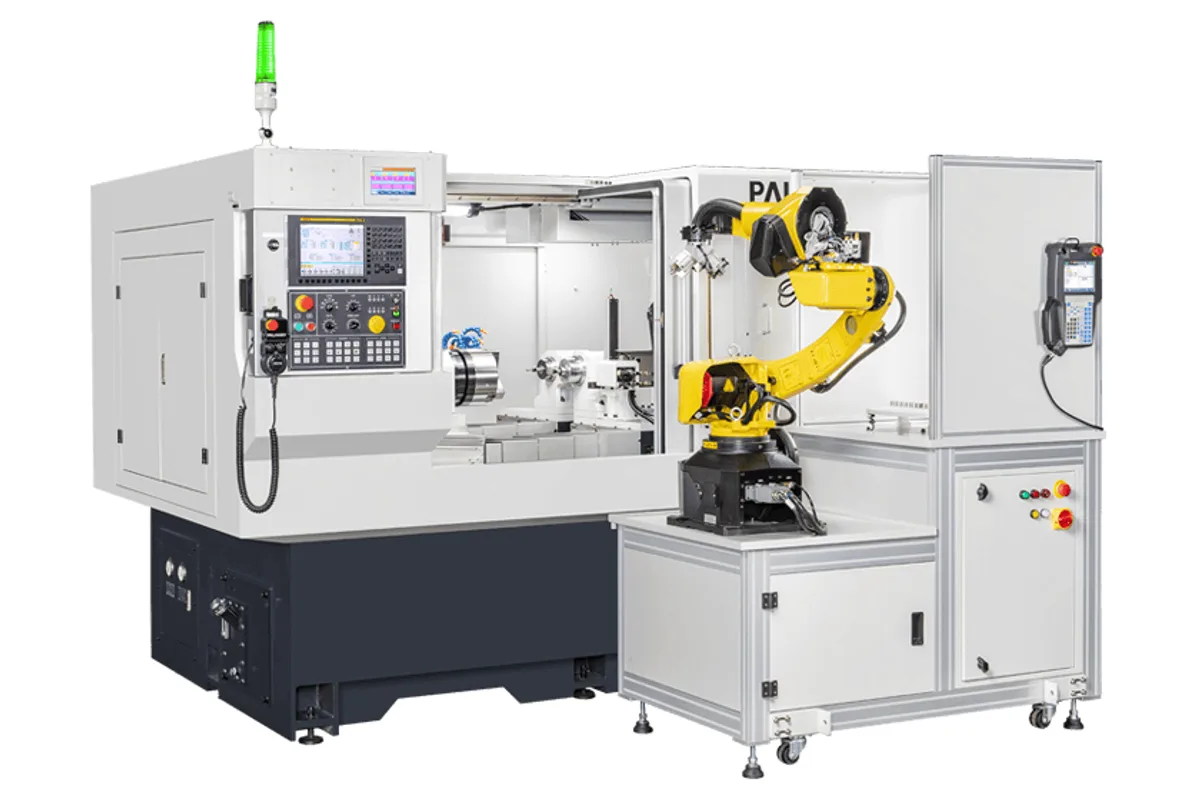

Two spindles let one chucking do the work of two machines or two setups: rough and finish with different wheels, a large bore and a small one, or a bore and a face with a wheel suited to each. Palmary says the model can grind an internal hole, an end face and an outer diameter at one setting. In the product photograph the machine is shown with a robot loading cell.
X, Z and Y each have 480 mm (18.9 in) of travel, a 10 m/min (394 ipm) rapid rate and a 1.8 kW (2.4 hp) servo motor. Both wheel spindles are the Ø90 mm (3.5 in) type with a 10,000 to 50,000 rpm range, and the standard accessories include two of them.
The workhead swivels +7° to -8°, as on the single-spindle OIG-200, with a 0.75 kW (1.0 hp) motor. One figure is lower than on that machine: the work spindle load is 35 kg (77 lb) here. The extra axis and spindle add a tonne, taking the weight to 5,700 kg (12,566 lb). A FANUC CNC controller, fully enclosed splash guard and X-axis linear scale are standard.
Full Specifications
| Parameter | Value |
|---|---|
| Max Chuck Diameter | Ø200 mm (7.9 in) |
| Max Internal Grinding Diameter | Ø150 mm (5.9 in) |
| Max Workpiece Length | 200 mm (7.9 in) |
| Wheel Spindle Diameter | Ø90 mm (3.5 in) |
| Max Spindle Speed | 10,000-50,000 rpm |
| X Axis Rapid Traverse | 10 m/min (394 ipm) |
| X Axis Travel | 480 mm (18.9 in) |
| X Axis Min Setting Unit | 0.001 mm |
| Z Axis Rapid Traverse | 10 m/min (394 ipm) |
| Z Axis Travel | 480 mm (18.9 in) |
| Z Axis Min Setting Unit | 0.001 mm |
| Y Axis Rapid Traverse | 10 m/min (394 ipm) |
| Y Axis Travel | 480 mm (18.9 in) |
| Y Axis Min Setting Unit | 0.001 mm |
| Workhead Swivel Angle | +7°~-8° |
| Work Spindle Center Taper | MT 6 |
| Work Spindle Speed | 0-500 / 0-800 rpm |
| Max Load of Work Spindle | 35 kg (77 lb) |
| Wheel Spindle Motor | 1.5 kW (2.0 hp) |
| Workhead Motor | 0.75 kW (1.0 hp) |
| X Axis Motor | 1.8 kW (2.4 hp) |
| Z Axis Motor | 1.8 kW (2.4 hp) |
| Y Axis Motor | 1.8 kW (2.4 hp) |
| Hydraulic Pump Motor | 0.75 kW (1.0 hp) |
| Coolant Pump Motor | 0.09 kW |
| Coolant Tank | 70 L (18.5 gal) |
| Machine Weight | 5,700 kg (12,566 lb) |
| CNC Control | FANUC CNC controller |
Specifications sourced from palmary.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Two internal wheel spindles, both supplied as standard
- Three linear axes, each with 480 mm (18.9 in) of travel
- Workhead swivel of +7° to -8°
- Bore, end face and outer diameter at one setting, according to Palmary
Limitations
- Work spindle load of 35 kg (77 lb)
- Workpiece length limited to 200 mm (7.9 in)
- Each wheel motor is 1.5 kW (2.0 hp)
- 5,700 kg (12,566 lb), a tonne more than the single-spindle OIG-200
Best For
Frequently Asked Questions
01
Palmary describes it as a two internal wheel spindle model for different application requirements, capable of grinding an internal hole, end face and outer diameter at one time setting. Each spindle can carry a wheel suited to one of those operations.
02
X, Z and Y axis tables each have a maximum traverse of 480 mm (18.9 in), a rapid feedrate of 10 m/min (394 ipm) and a minimum setting unit of 0.001 mm. Each is driven by a 1.8 kW (2.4 hp) motor.
03
The OIG-200 has one wheel spindle, two linear axes, a 50 kg (110 lb) work spindle load and weighs 4,700 kg (10,362 lb). The OIG-200D has two wheel spindles, a Y axis, a 35 kg (77 lb) work spindle load and weighs 5,700 kg (12,566 lb).
04
Maximum chuck outer diameter Ø200 mm (7.9 in), maximum internal grinding diameter Ø150 mm (5.9 in) and maximum workpiece length 200 mm (7.9 in). For 350 mm (13.8 in) parts Palmary lists the OIG-200DL35.
