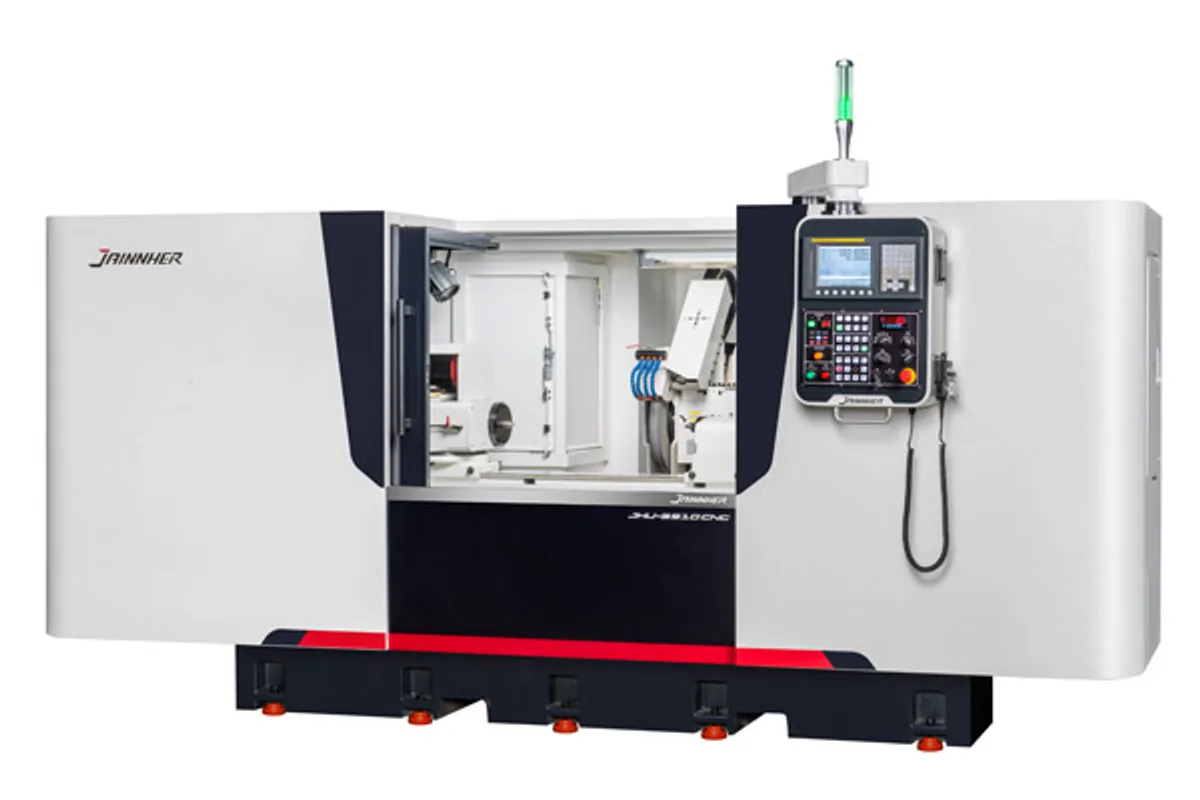

Jainnher JHU-3510CNC
Image: jainnher.com, Jainnher
Key Specifications
Spindle Power
max work swing
max grinding length
max grinding diameter
max workpiece weight
work spindle speed 60hz
How much does the Jainnher JHU-3510CNC cost?
Price estimate
We do not have a price for the Jainnher JHU-3510CNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Jainnher JHU-3510CNC is the middle of Jainnher's CNC universal cylindrical range and the size most general shops would start from: 350 mm (13.8 in) of swing, a 330 mm (13.0 in) grinding diameter and 1,000 mm (39.4 in) of grinding length, carrying 130 kg (287 lb) between centers.
A universal grinder is judged by its wheel spindle, and Jainnher's description of it is specific. The spindle is held by two hydrodynamic bearings at its ends, with five-point support. Lubrication is forced, and the oil film the bearings build up is said to absorb vibration as the load changes. Should the oil supply fall short, the spindle stops by itself. A 0.75 kW (1 HP) hydraulic motor and separate tanks of 60 L for hydraulics and 30 L for forced lubrication serve the system.
The base under it is a single Meehanite casting of box section, tempered for stability. The tailstock sleeve is moved hydraulically, and its clamping force is set with a knob, which helps with thin parts that a hard-set center would bend.
On the CNC models the X-axis linear scale and a touch probe gauge are standard, as is full enclosure with an oil mist collector. The table swivels 9° counter-clockwise and 5° clockwise. Wheel head travel is 175 mm (6.9 in) at up to 6 m/min (236 ipm). Jainnher's approximate figures put the machine at 4,700 mm (185.0 in) long with a gross weight of 6,100 kg (13,448 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Max Work Swing | 350 mm (13.8 in) |
| Max Grinding Length | 1,000 mm (39.4 in) |
| Max Grinding Diameter | 330 mm (13.0 in) |
| Max Workpiece Weight | 130 kg (287 lb) |
| Work Spindle Speed 60hz | 11 to 500 rpm at 60 Hz (variable speed) |
| Work Spindle Speed 50hz | 9 to 420 rpm at 50 Hz (variable speed) |
| Work Head Swivel Angle | 120° (CCW: 90°; CW: 30°) |
| Center Taper | MT.4 |
| Work Spindle Rotation | Setting, Normal and reverse rotation |
| Table Swivel Angle Ccw Cw | 9° / 5° |
| Table Min Setting Unit | 0.001 mm |
| Wheel Size | 405 x (25 ~ 50) x 152.4; 455 x 50 x 152.4 (opt.) (D x W x B) |
| Max Peripheral Speed | 2,000 m/min |
| Wheel Head Max Feed Rate | 6 m/min (236 ipm) |
| Wheel Head Travel | 175 mm (6.9 in) |
| Wheel Head Min Setting Unit | 0.001 mm |
| Tailstock Center Travel | 30 mm (1.2 in) |
| Tailstock Center | MT4 |
| Spindle Motor Power | 3.75 kW, 5 HP, 4P; 7.5 HP (5.6 kW) (opt.) |
| Worktable Motor | 1.8 kW (2.4 hp) |
| Hydraulic Motor | 0.75 kW (1 HP), 4P |
| Servo Motor X | 1.2 kW (1.6 hp) |
| Servo Motor Y | 1.8 kW (2.4 hp) |
| Hydraulic Tank | 60 L |
| Lubrication Tank | 30 L |
| Coolant Tank | 100 L |
| Gross Weight | 6,100 kg (13,448 lb) (approx.) |
| Machine Dimensions | 4,700 x 2,160 x 2,310 mm (185.0 x 85.0 x 90.9 in) (L x W x H) (approx.) |
Specifications sourced from jainnher.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Balanced envelope: 350 mm (13.8 in) swing, 1,000 mm (39.4 in) length, 130 kg (287 lb)
- Wheel spindle on two hydrodynamic bearings with five-point support and automatic stop on low oil
- One-piece Meehanite base of box type construction
- Hydraulic tailstock with adjustable clamping force
- Full enclosure, X-axis linear scale and touch probe gauge standard on CNC models
Limitations
- Standard wheel motor is 3.75 kW, 5 HP; 7.5 HP (5.6 kW) is an option
- The table's wheel speed row is printed in a form that cannot be read cleanly, so no wheel rpm is quoted here
- No CNC control make is named on the product page
- Magnetic separator and paper filter are optional accessories
Best For
Frequently Asked Questions
01
Maximum work swing 350 mm (13.8 in), maximum grinding diameter 330 mm (13.0 in), maximum grinding length 1,000 mm (39.4 in) and maximum job weight between centers 130 kg (287 lb). Work head and tailstock both take MT4 centers.
02
By two special hydrodynamic bearings on the ends with five-point support, in Jainnher's words. The forced lubrication system is described as having a vibration absorbing function, and the spindle stops automatically if lubrication oil is insufficient.
03
Yes. The JHU-2710CNC has a 270 mm (10.6 in) swing and a 250 mm (9.8 in) grinding diameter on the same 1,000 mm (39.4 in) grinding length, and an approximate gross weight of 6,000 kg (13,228 lb).
04
A 60 L hydraulic tank, a 30 L compulsory lubrication tank and a 100 L coolant tank. A water pump and tank are standard accessories. A magnetic separator and a paper filter are on the optional list.
