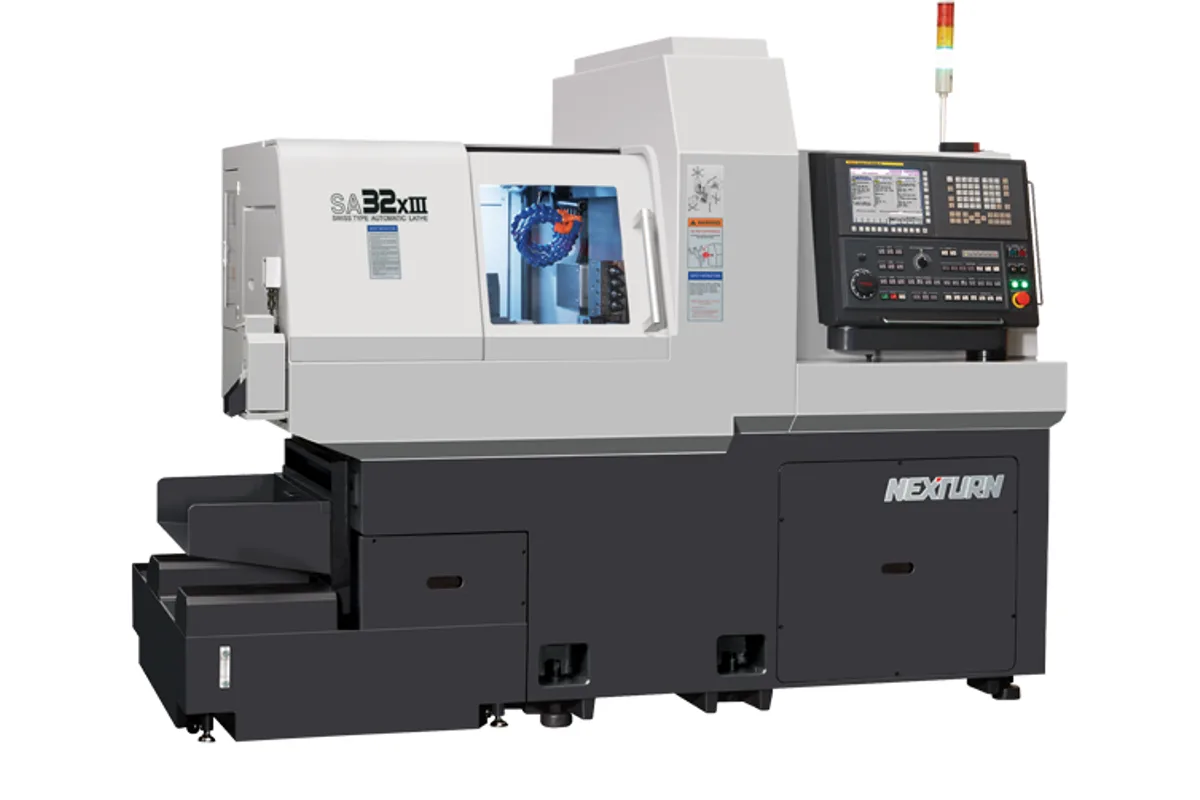

Nexturn SA32XIII
Image: nexturn.co.kr, Nexturn
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
bar capacity
main spindle drilling tapping
How much does the Nexturn SA32XIII cost?
Price estimate
We do not have a price for the Nexturn SA32XIII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Nexturn SA32XIII is a three-path Swiss-type automatic lathe for 32 mm (1.3 in) bar. Eleven axes run under a FANUC 31i-B, two opposing gang slides work on the main spindle at once, and a third path serves the sub spindle. Turning length is 270 mm (10.6 in).
Three paths change how a cycle is built. On a two-path machine one tool cuts at the guide bush while the back-end station works on the previous part. Here two tools can cut at the main spindle simultaneously, from opposite sides, while the back end is machined as well. The brochure's own examples are balance turning, simultaneous cross drilling and milling, and simultaneous turning with front centre drilling, each combined with back tool machining. Each gang slide has its own X, Z and Y axes, which is why the axis list runs X1, Z1, Y1, X2, Z2, Y2, X3, Z3, Y3 plus two C axes.
Nexturn's table splits the main-side tools by channel. Channel 1 carries five OD tools and four cross live tools. Channel 2 carries two OD tools, a four-spindle modular cross unit and four ID tools. Both channels use □16 × 120 mm (0.6 × 4.7 in) shanks and drive their cross spindles at up to 6,000 rpm, with drilling to 10 mm (0.4 in) and M8. The sub spindle side adds two front-end face tools and eight back-end tools. Nexturn's headline for the model is a maximum of 29 tools, with up to 14 of them live.
Spindle ratings are 5.5 / 7.5 kW (7.4 / 10.1 hp) main and 1.5 / 2.2 kW (2.0 / 3.0 hp) sub, each to 8,000 rpm. The machine needs a 20 kVA supply, measures 2,600 × 1,400 × 1,850 mm (102.4 × 55.1 × 72.8 in) and weighs 3,700 kg (8,157 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | 32 mm (1.3 in) |
| Max Turning Length | 270 mm (10.6 in) |
| Main Spindle Drilling Tapping | 12 mm (0.5 in) / M10 |
| Sub Spindle Chucking Diameter | 32 mm (1.3 in) |
| Back End Face Drilling Tapping | 10 mm (0.4 in) / M8 |
| Cross Disc Mill Diameter | 40 mm (1.6 in) |
| Max Spindle Speed | 8,000 rpm |
| Sub Spindle Speed | 8,000 rpm |
| Channel 1 OD Cross Live Tools | 5 / 4 |
| Channel 1 Cross Spindle Speed | 6,000 rpm |
| Channel 1 Drilling Tapping | 10 mm (0.4 in) / M8 |
| Channel 1 Tool Shank | □16 × 120 mm (0.6 × 4.7 in) |
| Channel 2 OD Cross Live ID Tools | 2 / 4 (Modular) / 4 |
| Channel 2 Cross Spindle Speed | 6,000 rpm |
| Channel 2 Drilling Tapping | 10 mm (0.4 in) / M8 |
| Channel 2 Tool Shank | □16 × 120 mm (0.6 × 4.7 in) |
| Front End Face Tools Sub | 2 (Fix, Live:option) |
| Back End Face Tools | 8 (Fix:4 / Live:4) |
| Rapid Traverse Rate | 32 m/min |
| Main Spindle Positioning | Cs + 1/1,000° |
| Sub Spindle Positioning | Cs + 1/1,000° |
| Spindle Motor Power | 5.5 / 7.5 kW (7.4 / 10.1 hp) |
| Sub Spindle Power | 1.5 / 2.2 kW (2.0 / 3.0 hp) |
| Cross Back Tool Motor | 1.0 kW (1.3 hp) |
| Servo Motor | 1.0 kW (1.3 hp) |
| Coolant Pump Motor | 0.9 kW (1.2 hp) |
| Lubrication Pump Motor | 0.04 kW (0.05 hp) |
| Coolant Tank | 250 L |
| Lubrication Tank | 2 L |
| Power Requirement | 20 kVA |
| Center Height | 1,000 mm (39.4 in) |
| Machine Dimensions | 2,600 × 1,400 × 1,850 mm (102.4 × 55.1 × 72.8 in) |
| Machine Weight | 3,700 kg (8,157 lb) |
| CNC Control | FANUC 31i-B |
| Controlled Axes | 11 |
| Axis Designation | X1, Z1, Y1, X2, Z2, Y2, X3, Z3, Y3, C1, C3 |
| Min Input Increment | 0.001 mm |
| Cutting Feed Rate | 1~6,000 mm/min |
| Tool Offsets | 128 sets |
| Program Memory | 512 Kbyte |
| Registerable Programs | 500 sets |
Specifications sourced from nexturn.co.kr — verified 2026-10-05
Strengths & Limitations
Strengths
- Three-path control with opposing gang slides, so two tools can cut at the main spindle at once
- Eleven axes under a FANUC 31i-B, with a Y axis on each of the three paths
- Max. 29 tools, of which up to 14 are live
- 270 mm (10.6 in) of turning length and 8,000 rpm on both spindles
- 5.5 / 7.5 kW (7.4 / 10.1 hp) main spindle, above the 3.7 / 7.5 kW (5.0 / 10.1 hp) of the SA32XII
Limitations
- Cross and back tool drives are 1.0 kW (1.3 hp), and cross drilling is limited to 10 mm (0.4 in) and M8
- Program memory is 512 Kbyte with 500 registered programs, less than the 1 Mbyte and 800 of the SA32XII
- Sub spindle motor is 1.5 / 2.2 kW (2.0 / 3.0 hp)
- Three-path programming is more demanding than a two-path Swiss lathe
Best For
Frequently Asked Questions
01
The control runs three programs side by side: one for each of the two gang slides at the main spindle and one for the back-end tools at the sub spindle. Nexturn's examples include balance turning with back tool machining and simultaneous cross drilling and milling.
02
Nexturn states a maximum of 29 tools with up to 14 live. The table lists five OD and four cross live tools on channel 1, two OD, four modular cross and four ID tools on channel 2, two front-end face tools for the sub spindle and eight back-end face tools. The standard back-end unit is Live 2, Fixed 2, with Live 4, Fixed 4 optional.
03
A FANUC 31i-B with eleven controlled axes. The minimum input increment is 0.001 mm and the feedrate range is 1~6,000 mm/min. The control holds 128 sets of tool offsets and 500 registered programs in 512 Kbyte of memory.
04
Power consumption is listed at 20 kVA. The machine is 2,600 × 1,400 × 1,850 mm (102.4 × 55.1 × 72.8 in) and weighs 3,700 kg (8,157 lb), with a 250 L coolant tank and a 2 L lubrication tank. A bar feeder is optional and is not included in the dimensions.
