Star NEW SP-20

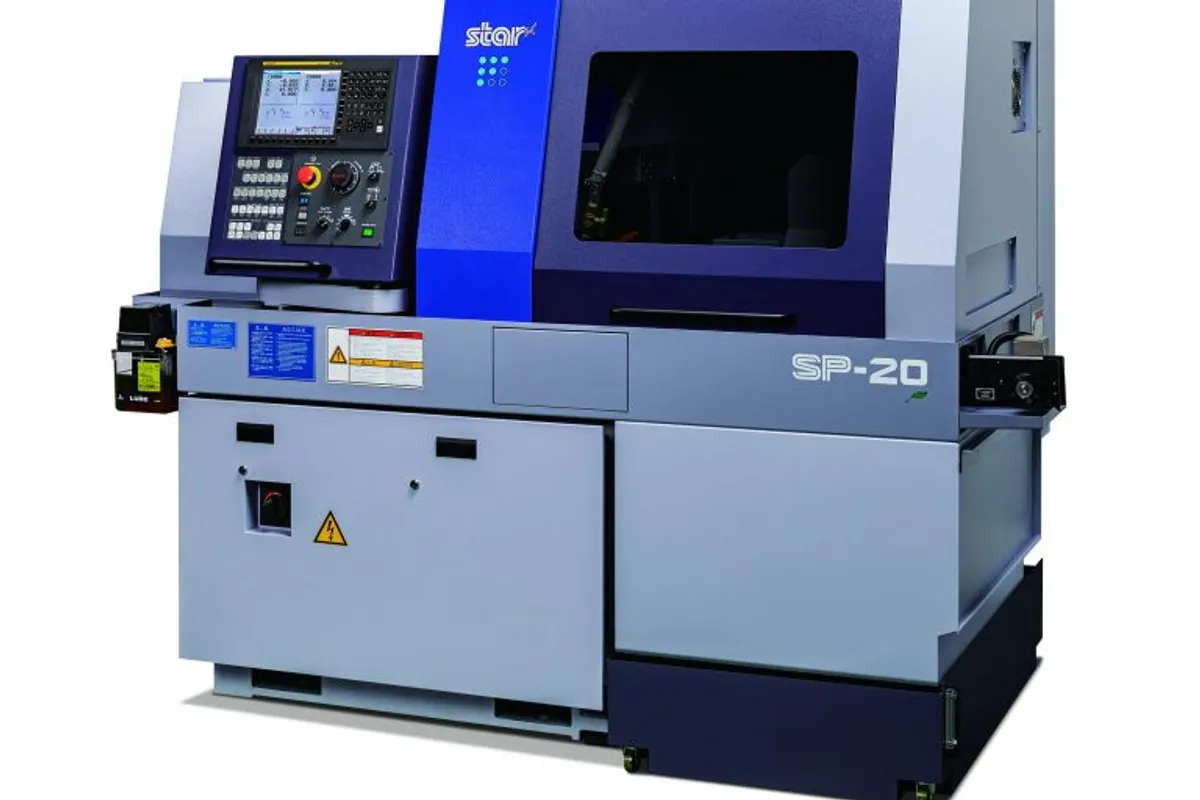

Image: starcnc.com, Star Micronics
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
max machining diameter
number of axes
y axis stroke
How much does the Star NEW SP-20 cost?
Estimated price range
Our best estimate for a swiss-type lathe in this class — not a quote from Star Micronics. Configuration moves it a long way.
Overview
The Star NEW SP-20 is a sliding-headstock Swiss-type lathe for 20 mm (0.787 in) bar, with a ø25.4mm (1in) capacity listed as an option. Main and sub spindles both run to 10,000 rpm, the headstock strokes 205mm (8in), and the machine weighs 2,250 kg.
Headstock stroke depends on how the machine is configured, and the table spells out four cases. The standard figure is 205mm (8in). With MR25 it is 196mm (7-15/16in), the R.M.G.B. type is 155mm (6-3/32in), and the N.G.B. type is listed as bar diameter X2.5 (Max.50mm) (Max.1-31/32in). The gap between the first and the last of those is wide, so settle which type suits the part lengths before ordering.
The gang tool post takes 8 tools of 12mm, or 7 tools in the mix the table writes as 16mmX3, 12mmX4: three of the larger shank and four of the smaller. The larger shanks cost one position. Y-axis stroke is ±15 mm and the axis row reads up to 8, including Y-axis, C1 and C2, so cross milling and drilling off the centreline are within the machine's motion as long as the feature sits inside that Y stroke.
Spindle power is 2.2 kW continuous and 3.7 kW at the 15min/60% ED rating on the main spindle, with 1.5 kW continuous and 2.2 kW (15min/60% ED) on the sub spindle. Both speed rows also carry an option maximum of 8,000 rpm. Rapid traverse is 35 m/min on X1, Y1, Z1, X2 and Z2. The NEW SD-26 Type S is the step up in bar size at φ26mm (1-1/64 inch), with 5.5 kW (Continuous) / 7.5 kW (10min./25%ED) on the main spindle and a weight of 3,600 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Max Machining Diameter | 20 mm (0.787 in) |
| Number of Axes | Up to 8 (including Y-axis, C1, C2) |
| Y Axis Stroke | ±15 mm |
| CNC Control | Fanuc 31i-B5 |
| Rapid Traverse Rate | 35 m/min (X1, Y1, Z1, X2, Z2) |
| Machine Weight | 2,250 kg |
| Max Turning Diameter | ø20mm (29/32in) OP: ø25.4mm (1in) |
| Max Headstock Stroke | 205mm (8in) MR25: 196mm (7-15/16in), R.M.G.B. TYPE: 155mm (6-3/32in), N.G.B. TYPE: Bar diameter X2.5 (Max.50mm) (Max.1-31/32in) |
| Bar Capacity | Ø20 mm (29/32 in) OP: Ø25.4 mm (1 in) |
| Turret Stations | 8 tools (12mm) or 7 tools (16mmX3, 12mmX4) |
| Max Spindle Speed | 10,000 rpm (OP : Max. 8,000 rpm) |
| Spindle Motor Power | 2.2 kW (CONT.)/3.7 kW (15min/60% ED) |
| CNC Control | FANUC 0i-TF Plus |
| Headstock Stroke | 205 mm (8 in) MR25 : 196 mm (7-15/16 in) |
| Sub Spindle Speed | 10,000 rpm (OP : Max. 8,000 rpm) |
| Sub Spindle Power | 1.5 kW (CONT.)/2.2 kW (15min/60% ED) |
| Turning Tools | 8 tools (12 mm) |
| Floor Space Required | 2,100 × 1,200 × 1,785 |
Specifications sourced from ellisontechnologies.com (authorised dealer / distributor, not the manufacturer's own site) — verified 2026-10-03
Strengths & Limitations
Strengths
- Main and sub spindles are both listed at 10,000 rpm
- 205mm (8in) headstock stroke in the standard configuration
- Y-axis with a ±15 mm stroke, and up to 8 axes including C1 and C2
- Gang post holds 8 tools (12mm), or 7 tools (16mmX3, 12mmX4) when larger shanks are needed
- 35 m/min rapid traverse on X1, Y1, Z1, X2 and Z2
Limitations
- Standard bar capacity is 20 mm (0.787 in); ø25.4mm (1in) is an option, and the speed rows list an option maximum of 8,000 rpm
- The N.G.B. type limits headstock stroke to bar diameter X2.5 (Max.50mm) (Max.1-31/32in)
- Main spindle power is 2.2 kW continuous; the NEW SD-26 Type S is listed at 5.5 kW (Continuous)
- Fitting the larger shanks (16mmX3, 12mmX4) reduces the gang post from 8 tools to 7 tools
Best For
Frequently Asked Questions
01
The maximum machining diameter is 20 mm (0.787 in). The table lists ø25.4mm (1in) as an option. The spindle speed rows give 10,000 rpm with an option maximum of 8,000 rpm, so ask the dealer whether the lower speed limit applies when the larger bar capacity is fitted.
02
It depends on the configuration. The standard headstock stroke is 205mm (8in). With MR25 it is 196mm (7-15/16in) and the R.M.G.B. type is 155mm (6-3/32in). The N.G.B. type is listed as bar diameter X2.5 (Max.50mm) (Max.1-31/32in), so it is for short parts only.
03
The table gives two arrangements: 8 tools with 12mm shanks, or 7 tools listed as 16mmX3, 12mmX4, meaning three of the larger shank and four of the smaller. A job that needs the stiffer, larger tools for heavier turning therefore gives up one tool position.
04
The main spindle is listed at 2.2 kW continuous and 3.7 kW at 15min/60% ED. The sub spindle is listed at 1.5 kW continuous and 2.2 kW at 15min/60% ED. Both spindles are listed at 10,000 rpm, with an option maximum of 8,000 rpm.
05
Machine weight is 2,250 kg. The footprint row reads 2,100 × 1,200 × 1,785 and states no unit, so confirm the dimensions and their order from the dealer's installation drawing before laying out the floor.
