LVD ToolCell 220/30 PLUS

Q: How much does the LVD ToolCell 220/30 PLUS cost?

The price estimate for the LVD ToolCell 220/30 PLUS is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/lvd-toolcell-220-30-plus#price; the request is passed to LVD or an authorised dealer.

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

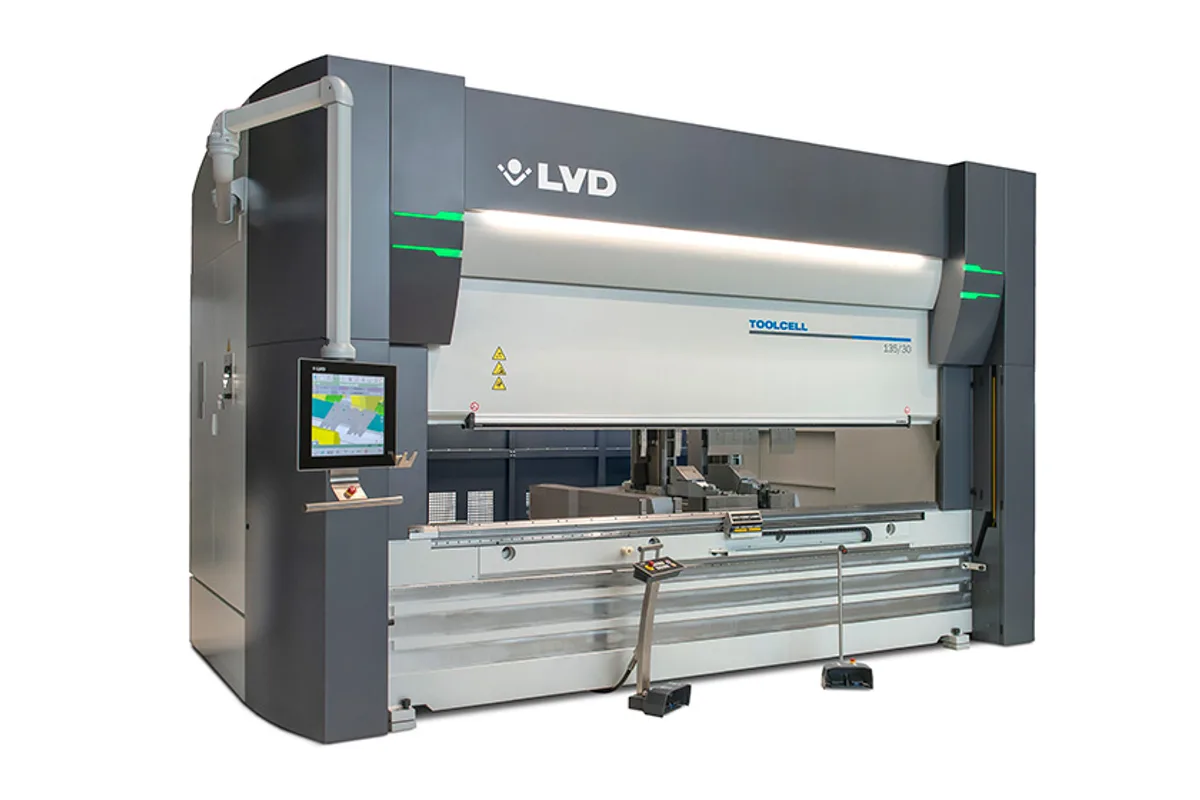

LVD ToolCell series press brake with automatic tool changer

Image: lvdgroup.com, LVD

Key Specifications

pressing force

2,200 kN

hydraulic pressure

285 bar

bending length

3,050 mm (120.1 in)

width between columns

4,000 mm (157.5 in)

ram stroke

300-400 mm (11.8-15.7 in)

open height

570-670 mm (22.4-26.4 in)

How much does the LVD ToolCell 220/30 PLUS cost?

Price estimate

Uncertain

We do not have a price for the LVD ToolCell 220/30 PLUS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

PLUS, in LVD's ToolCell table, means a taller opening and a stronger table. The LVD ToolCell 220/30 PLUS has the 2,200 kN and 3,050 mm (120.1 in) of the standard machine, but lists 570-670 mm (22.4-26.4 in) between table and ram and a table 200 mm (7.9 in) wide rated at 2,500 kN/m.

Those three numbers are the whole difference. The ToolCell 220/30 has 500-600 mm of open height and a 120 mm table rated at 2,000 kN/m. Stroke is 300-400 mm (11.8-15.7 in) on both, as are the 4,000 mm (157.5 in) between uprights, the 37 kW motor, the 350 L tank and the speeds. The PLUS weighs 25,000 kg (55,115 lb) against 24,500 kg for the ToolCell 220/30.

Why pay for it? Open height decides how deep a box or channel can be formed and still be lifted off the punch, and how tall a tool set fits. A wider table with a higher load rating suits wide dies, the kind used for thick plate. A shop that bends deep profiles or heavy sections on a three-metre line gets both.

One caution. LVD's note about two sets of punch and die heights, standard and taller, refers to the standard ToolCell; the page does not say which heights the PLUS warehouse holds, so ask before ordering tools.

The automation is unchanged: grippers in the backgauge fingers change top and bottom tools from the integrated warehouse, and Easy-Form Laser corrects the angle during the bend.

Full Specifications

Parameter	Value
Pressing Force	2,200 kN
Hydraulic Pressure	285 bar
Bending Length	3,050 mm (120.1 in)
Width Between Columns	4,000 mm (157.5 in)
Ram Stroke	300-400 mm (11.8-15.7 in)
Open Height	570-670 mm (22.4-26.4 in)
Table Width	200 mm (7.9 in)
Max Table Load	2,500 kN/m
Working Height	970 mm (38.2 in)
Approach Speed	120 mm/s
Bending Speed	21 mm/s
Return Speed	200 mm/s
Motor Power	37 kW
Machine Weight	25,000 kg (55,115 lb)
Oil Tank Capacity	350 L

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

570-670 mm (22.4-26.4 in) between table and ram, where the ToolCell 220/30 lists 500-600 mm
200 mm (7.9 in) table rated at 2,500 kN/m
25,000 kg (55,115 lb), close to the 24,500 kg of the ToolCell 220/30
Automatic tool changer, Easy-Form Laser and 6-axis backgauge as on every ToolCell
Ram returns at 200 mm/s after each bend

Limitations

Stroke stays at 300-400 mm (11.8-15.7 in); only the open height grows
Working length is 3,050 mm; the four-metre PLUS is a separate model
LVD's choice of standard or taller tool sets is described for the standard ToolCell only
25,000 kg (55,115 lb) installed weight

Best For

Deep boxes and tall channels up to 3,050 mm Thick plate formed on wide dies Mixed work that alternates light sheet and heavy sections Automated tool changes with tall tooling

Frequently Asked Questions

01 What does PLUS add to the ToolCell 220/30?

Against the ToolCell 220/30 it has an open height of 570-670 mm in place of 500-600 mm, a table 200 mm wide in place of 120 mm, and a table load of 2,500 kN/m in place of 2,000 kN/m. Force, working length, stroke, speeds, motor and oil tank are the same in LVD's table.

02 Is the ram stroke longer on the PLUS?

No. The table lists 300-400 mm (11.8-15.7 in) for the ToolCell 220/30 PLUS, the same as the standard models. LVD offers an increase in stroke and table-to-ram distance of up to 100 mm as an option across the ToolCell line.

03 How much does it weigh?

25,000 kg (55,115 lb). The frame has the same 4,000 mm (157.5 in) between uprights as the standard three-metre machines, and LVD says every ToolCell has a one-piece welded frame that can be installed at floor level.

04 Does it use the same tooling?

ToolCell press brakes use LVD dies and W style punches. LVD describes a choice between standard and taller punch and die sets for the standard ToolCell and does not repeat that statement for the PLUS, so the tool heights should be confirmed with the maker.
