LVD Strippit VX-1225

Q: How much does the LVD Strippit VX-1225 cost?

The price estimate for the LVD Strippit VX-1225 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/lvd-strippit-vx-1225#price; the request is passed to LVD or an authorised dealer.

Specs verified 2026-10-05 · lvdgroup.com Updated 2026-10-05

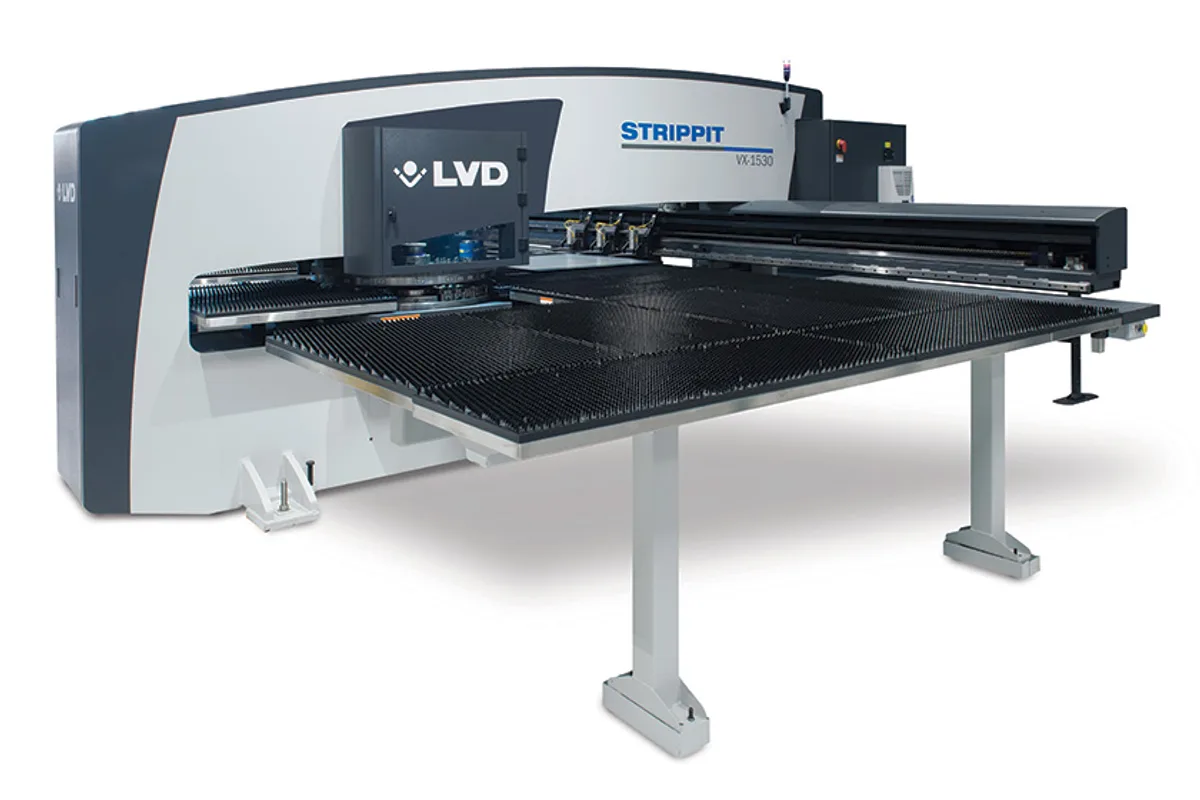

LVD Strippit VX series turret punch press

Image: lvdgroup.com, LVD

Key Specifications

Repeatability

± 0.05 mm

punching force

200 kN

max sheet thickness

6.35 mm (0.25 in)

punching accuracy

± 0.1 mm

max hit rate 1mm

920 HPM at 1 mm pitch

max hit rate 25mm

530 HPM at 25.4 mm pitch

How much does the LVD Strippit VX-1225 cost?

Price estimate

Uncertain

We do not have a price for the LVD Strippit VX-1225 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Speed is the headline on the LVD Strippit VX-1225. Of the turret machines LVD lists for 1,250 x 2,500 mm (49.2 x 98.4 in) sheet it has the highest figures: 920 HPM at 1 mm pitch, 530 HPM at 25.4 mm pitch and a combined X-Y positioning speed of 161 m/min. The Strippit M-1225, on the same sheet, is listed at 850 HPM, 400 HPM and 96 m/min.

The rates come from a servo-controlled high/low hydraulic ram, which LVD says also lowers energy use, and from Smart Stroke, which picks the tool hover height without input from the programmer. Punching force is 200 kN and the thickness limit 6.35 mm (0.25 in). Average consumption is listed at 6.7 kW.

Its turret has 48 stations. Four are 88.9 mm indexable stations, and multitools take the maximum tool count to 76. The turret is fully bushed: each sleeve can be replaced individually, so wear is repaired at the station instead of by re-machining the turret. Die holders are quick-change, with a die change quoted at 15 seconds.

The table side is fuller than on LVD's simpler machines. Three CNC work clamps with sheet pull-out sensors position themselves and can relocate mid-cycle, a programmable chute takes parts up to 450 x 500 mm (17.7 x 19.7 in), and the brush table is rated for up to 150 kg (331 lb) at reduced speed. Feed clearance is 25 mm (1.0 in).

LVD marks automatic load/unload, the Compact Tower, bin sort and robot pick/sort as available. For heavier punching on a larger sheet, the Strippit V30-1530 offers 300 kN at lower speed.

Full Specifications

Parameter	Value
Punching Force	200 kN
Max Sheet Thickness	6.35 mm (0.25 in)
Punching Accuracy	± 0.1 mm
Repeatability	± 0.05 mm
Max Hit Rate 1mm	920 HPM at 1 mm pitch
Max Hit Rate 25mm	530 HPM at 25.4 mm pitch
Marking Rate	1750 HPM
Feed Clearance	25 mm (1.0 in)
Max Sheet Size	1,250 x 2,500 mm (49.2 x 98.4 in)
Max Sheet Weight	up to 150 kg (331 lb) on the brush table, at reduced speed
Work Chute	450 x 500 mm (17.7 x 19.7 in)
Work Clamps	3 CNC relocatable part pull out sensor
Turret Stations	48 Stations
Auto Index Stations	4D - Ø 88.9 mm
Max Tool Capacity	76 with Multi-Tool
Angular Positioning Accuracy	± 0.05 degrees
CNC Control	Touch-P
Max Positioning Speed	161 m/min.
Tool Change Time	0.8 sec.
Power Consumption	6.7 kW
Standby Power	0.9 kW
Automation Options	Automatic load/unload (PA), Compact Tower (CT-P), Bin sort, Robot pick/sort, Lubrication system

Specifications sourced from lvdgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

920 HPM at 1 mm pitch and 530 HPM at 25.4 mm pitch
161 m/min combined X-Y positioning speed
Fully bushed 48-station turret with individually replaceable sleeves
Three CNC relocatable work clamps with sheet pull-out sensors and a 450 x 500 mm parts chute
Quick-change die holders with die changes of 15 seconds

Limitations

200 kN punching force; the Strippit V30-1530 provides 300 kN
Sheet size stops at 1,250 x 2,500 mm (49.2 x 98.4 in) on this model
150 kg (331 lb) brush table rating is at reduced speed
Cooler kits are extra for sites where ambient temperature exceeds 35C for long periods

Best For

High-volume punching where hit rate and positioning speed set the output 1,250 x 2,500 mm sheet up to 6.35 mm thick Unattended runs with a Compact Tower, bin sort or robot pick/sort Tool-intensive parts using up to 76 tools with multitools

Frequently Asked Questions

01 How fast is the Strippit VX-1225?

LVD lists 920 HPM at 1 mm pitch, 530 HPM at 25.4 mm pitch and 1750 HPM in marking. The combined X-Y positioning speed is 161 m/min and a tool change takes 0.8 sec. A high/low servo-controlled hydraulic ram and the Smart Stroke function are behind the hit rates.

02 What is a sleeved turret and why does it matter?

Every station in the turret is bushed, and the sleeves hold punch and die in alignment. When a station wears, its sleeve is replaced on its own. LVD's point is that the turret itself never needs re-machining, which protects alignment over the life of the machine.

03 How does it differ from the Strippit V30-1530?

The Strippit VX-1225 is the faster machine at 200 kN: 161 m/min positioning and 530 HPM at 25.4 mm pitch. The Strippit V30-1530 is rated at 300 kN, with 128 m/min and 440 HPM, on a larger 1,524 x 3,048 mm sheet. Both have 48 stations, four 88.9 mm auto-index stations and a 6.35 mm thickness limit.

04 How are finished parts removed?

Through a programmable parts removal chute that accepts parts up to 450 x 500 mm (17.7 x 19.7 in). Parts drop into a bin under the machine table or go to an optional bin-sort system. A parts conveyor and a rotary bin sort are listed among the options.

05 What can the turret hold?

48 stations, including four 88.9 mm indexable stations. With multitools the maximum tool capacity is 76. A 25 mm (1.0 in) feed clearance between the turrets lets formed parts pass, and the angular positioning accuracy of the indexing stations is ± 0.05 degrees.
