Boschert CuMaster

Specs verified 2026-10-05 · boschert.de Updated 2026-10-05

Image: boschert.de, Boschert

Key Specifications

Accuracy

+/- 0.1 mm

Repeatability

+/- 0.05 mm

max workpiece length

4,000 mm (157.5 in)

workpiece width

15-305 mm (0.6-12.0 in)

workpiece thickness

3-20 mm (0.1-0.8 in)

max axis speed

100 m/min

How much does the Boschert CuMaster cost?

Price estimate

Uncertain

We do not have a price for the Boschert CuMaster that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

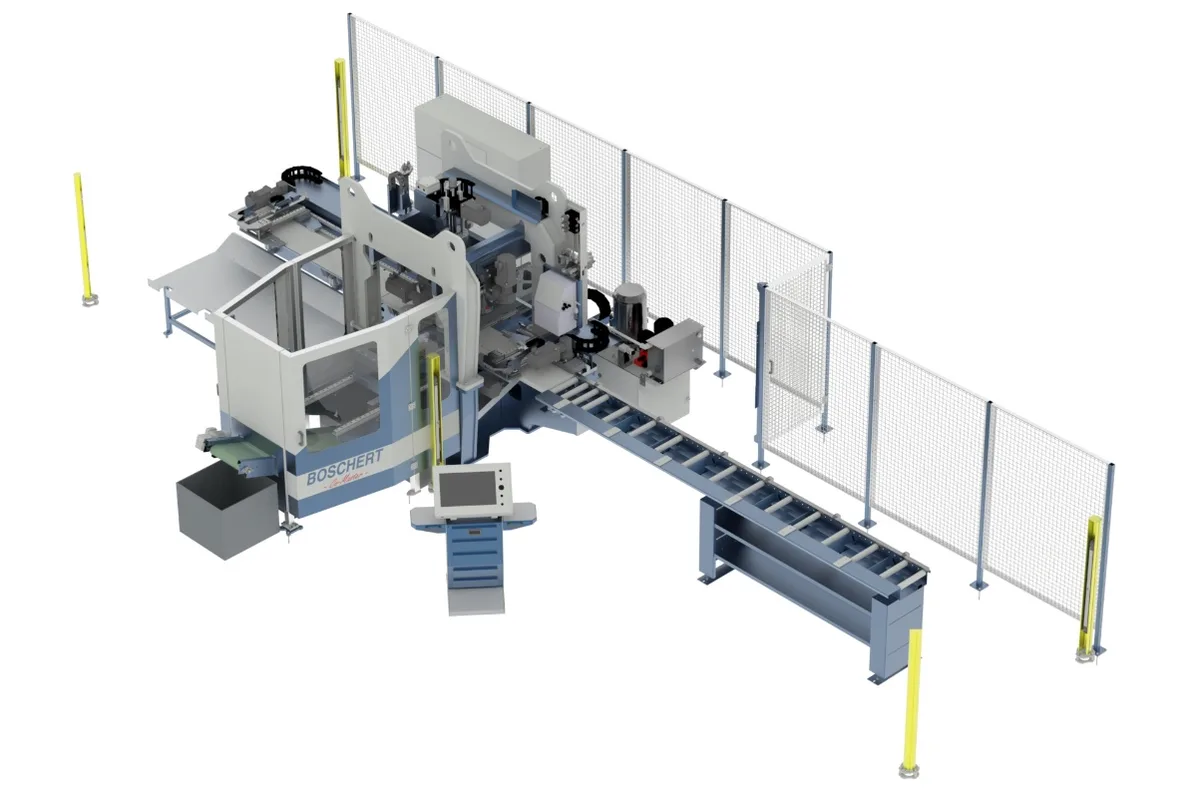

The Boschert CuMaster is the automated end of Boschert's copper range: a CNC punching machine for busbars up to 305 mm wide, 20 mm thick and 4,000 mm long. Boschert quotes up to 600 kN of punching power.

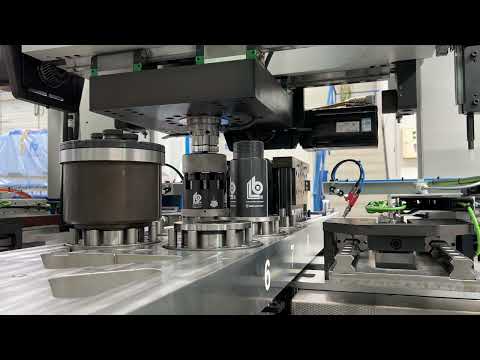

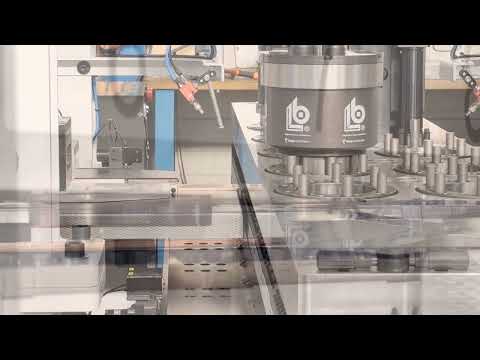

Capacity in tools is what distinguishes it. There are 8 tool stations, and because each station can carry a multi-tool, the maximum number of punching tools is 64. A three-station multitool takes punches up to 31.7 mm in diameter and an eight-station multitool up to 16.0 mm, while the largest single tool is 88.9 mm. A tapping unit is included in the table, and a 200x8 mm parting tool is optional. A switchgear bar with a dozen different holes, a thread and a cut to length can therefore leave the machine finished.

Stroke rate is tied to force: 120 strokes per minute at 22t and 58 at 60 t. The axes move at up to 100 m/min. Positioning accuracy is +- 0.1 mm and repeatability +- 0.05 mm.

Automation runs from infeed to sorting. CNC-controlled grippers position the copper, and scrap and finished parts are separated automatically. All of this takes space: the machine measures 8,190 x 4,775 x 2,364 mm and weighs 12,000 kg, three times the CuProfi at 4,000 kg. The electrical connecting value is 30 kVA with 3 x 35A fuses.

Full Specifications

Parameter	Value
Max Workpiece Length	4,000 mm (157.5 in)
Workpiece Width	15-305 mm (0.6-12.0 in)
Workpiece Thickness	3-20 mm (0.1-0.8 in)
Max Axis Speed	100 m/min
Max Strokes per Minute	120 (22t); 58 (60 t)
Tool Stations	8
Max Number of Punching Tools	64
Tapping Unit	Yes
Max Diameter	88.9 mm (3.5 in)
Multitool 3 Stations	Maximum punch diameter: 31.7 mm
Multitool 8 Stations	Maximum punch diameter: 16.0 mm
Parting Tool	200x8 mm optional
Positioning Accuracy	+/- 0.1 mm
Repeatability	+/- 0.05 mm
Machine Length	8,190 mm (322.4 in)
Machine Width	4,775 mm (188.0 in)
Machine Height	2,364 mm (93.1 in)
Machine Weight	12,000 kg (26,455 lb)
Electrical Connecting Value	30 kVA
Required Fuse	3 x 35A

Specifications sourced from boschert.de — verified 2026-10-05

Strengths & Limitations

Strengths

8 tool stations carrying up to 64 punching tools with multi-tools
Busbars up to 305 mm wide and 20 mm thick
Up to 600 kN of punching power, according to Boschert
Tapping unit listed in the table
Automatic separation of scrap and finished parts

Limitations

Stroke rate falls to 58 per minute at 60 t
An eight-station multitool limits punch diameter to 16.0 mm
Footprint of 8,190 x 4,775 mm and a weight of 12,000 kg
The 200x8 mm parting tool is optional

Best For

Automated busbar production for switchgear and control cabinets Bars needing many different hole sizes plus tapped threads Heavy copper up to 20 mm thick

Frequently Asked Questions

01 What busbar sizes does the Boschert CuMaster take?

Workpieces up to 4,000 mm long, 15 mm to 305 mm wide and 3 mm to 20 mm thick. Boschert adds that even thicker copper is possible with optional configurations, and quotes up to 600 kN of punching power for the machine.

02 How many tools can the CuMaster use?

It has 8 tool stations and a maximum of 64 punching tools, reached by fitting multi-tools. A three-station multitool allows a maximum punch diameter of 31.7 mm and an eight-station multitool 16.0 mm. The maximum diameter of a single tool is 88.9 mm.

03 How fast does the CuMaster punch?

The table gives 120 strokes per minute at 22t and 58 strokes per minute at 60 t, so the rate depends on the force the hole needs. Maximum axis speed is 100 m/min.

04 How is the CuMaster different from the CuProfi?

The CuMaster takes bar up to 305 mm wide and 20 mm thick where the CuProfi stops at 200 mm and 15 mm. It carries up to 64 punching tools and adds a tapping unit and automatic sorting. It is also far larger: 12,000 kg against the 4,000 kg of the CuProfi.
