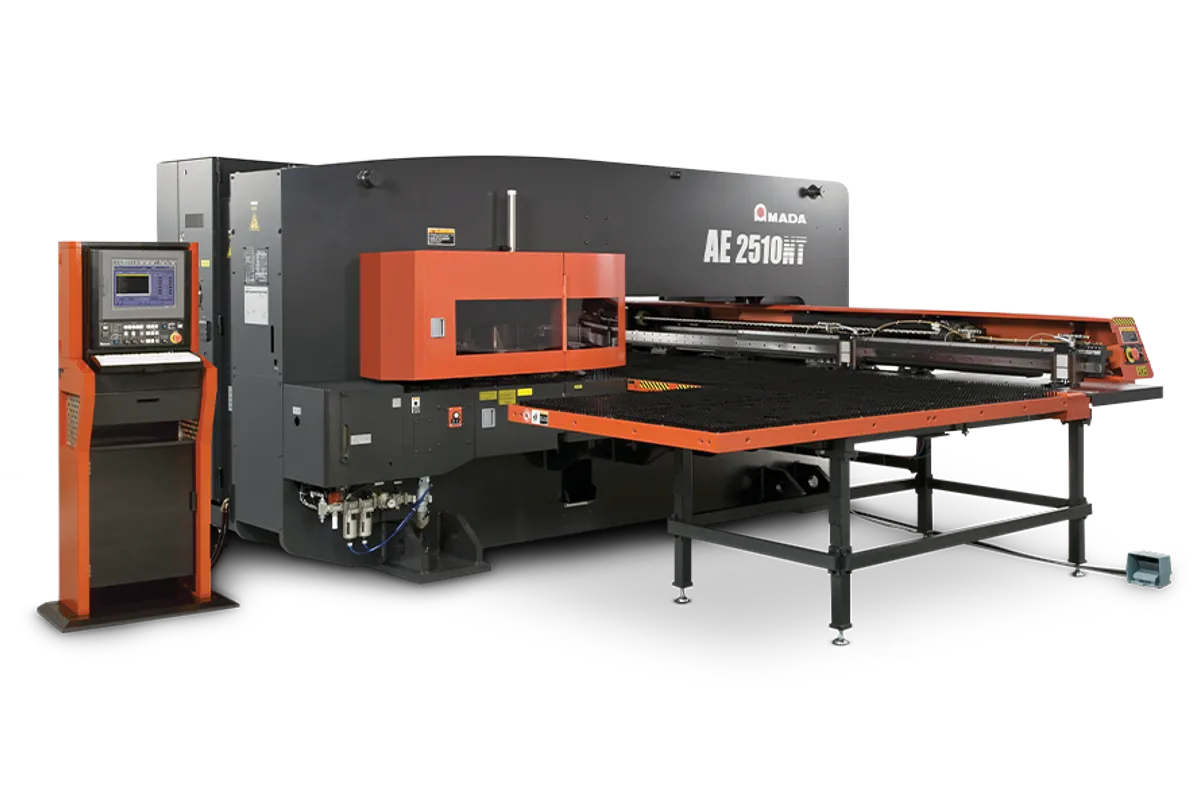

Amada AE 2510 NT
Image: amada.com, Amada
Key Specifications
Accuracy
press capacity
turret stations
machine frame
axis travel distance
machine length
How much does the Amada AE 2510 NT cost?
Estimated price range
Our best estimate for a cnc punch presse in this class — not a quote from Amada. Configuration moves it a long way.
Overview
The Amada AE 2510 NT is a 200 kN turret punch press with a 45-station turret and 2500 x 1270 mm of axis travel, built on a bridge frame. It is the larger-table machine of a pair: the AE 255 NT has the same 200 kN and 45 stations but 1270 x 1270 mm of travel.
That longer axis is the reason to choose it. With 2500 mm of travel a full-length sheet is punched in one clamping. The AE 255 NT, with 1270 mm on both axes, has to reposition a long sheet to reach the far half.
The bigger table shows in the footprint more than in the weight. The AE 2510 NT is 5120 mm wide against 2560 mm for the AE 255 NT, on almost the same length (4155 mm and 4100 mm), and weighs 12500 kg against 12000 kg. Height is 2115 mm and positioning accuracy is listed at ± 0.1 mm. Amada's table gives no hit rate, sheet thickness or control rows for this model, so confirm those when quoting.
Full Specifications
| Parameter | Value |
|---|---|
| Press Capacity | 200 kN |
| Positioning Accuracy | ± 0.1 mm |
| Turret Stations | 45 |
| Machine Frame | Bridge frame |
| Axis Travel Distance | 2500 x 1270 mm |
| Machine Length | 4155 mm |
| Machine Width | 5120 mm |
| Machine Height | 2115 mm |
| Machine Weight | 12500 kg |
Specifications sourced from amada.eu — verified 2026-10-03
Strengths & Limitations
Strengths
- 2500 x 1270 mm axis travel handles long sheets without repositioning
- 45-station turret keeps a broad tool set mounted
- Bridge frame with ± 0.1 mm positioning accuracy
- 12500 kg, close to the 12000 kg of the smaller AE 255 NT
Limitations
- 200 kN press capacity limits thick sheet and large punch perimeters
- 5120 mm wide, twice the 2560 mm of the AE 255 NT
- No hit rate, thickness or control rows in Amada's table for this model
Best For
Frequently Asked Questions
01
Table travel. The AE 2510 NT has 2500 x 1270 mm of axis travel and the AE 255 NT has 1270 x 1270 mm. Both are 200 kN machines with 45 turret stations, a bridge frame and ± 0.1 mm positioning accuracy. The AE 2510 NT is 5120 mm wide and 12500 kg; the AE 255 NT is 2560 mm wide and 12000 kg.
02
4155 mm of length, 5120 mm of width and 2115 mm of height, at 12500 kg. The width follows from the 2500 mm axis: the sheet travels that far, so keep the area around the table clear and plan loading from the side that suits your material flow.
03
The turret has 45 stations. Amada's table does not break those down by station size or say how many index, so ask for the turret layout if the work depends on rotating shaped tools or on large-diameter punches.
Videos
AMADA EGYPT (KPRO industrial machinery)
MARMALYUK S.A.
More from Amada
Other CNC Punch Presses
Peddinghaus FPB-1500
Prima Power Shear Genius 1540
Murata Wiedemann Motorum 2048

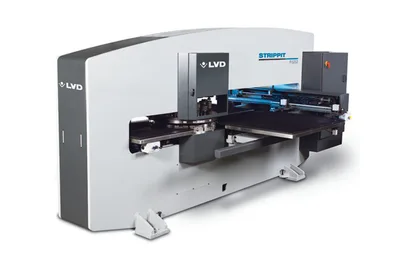

LVD Strippit P-1212
