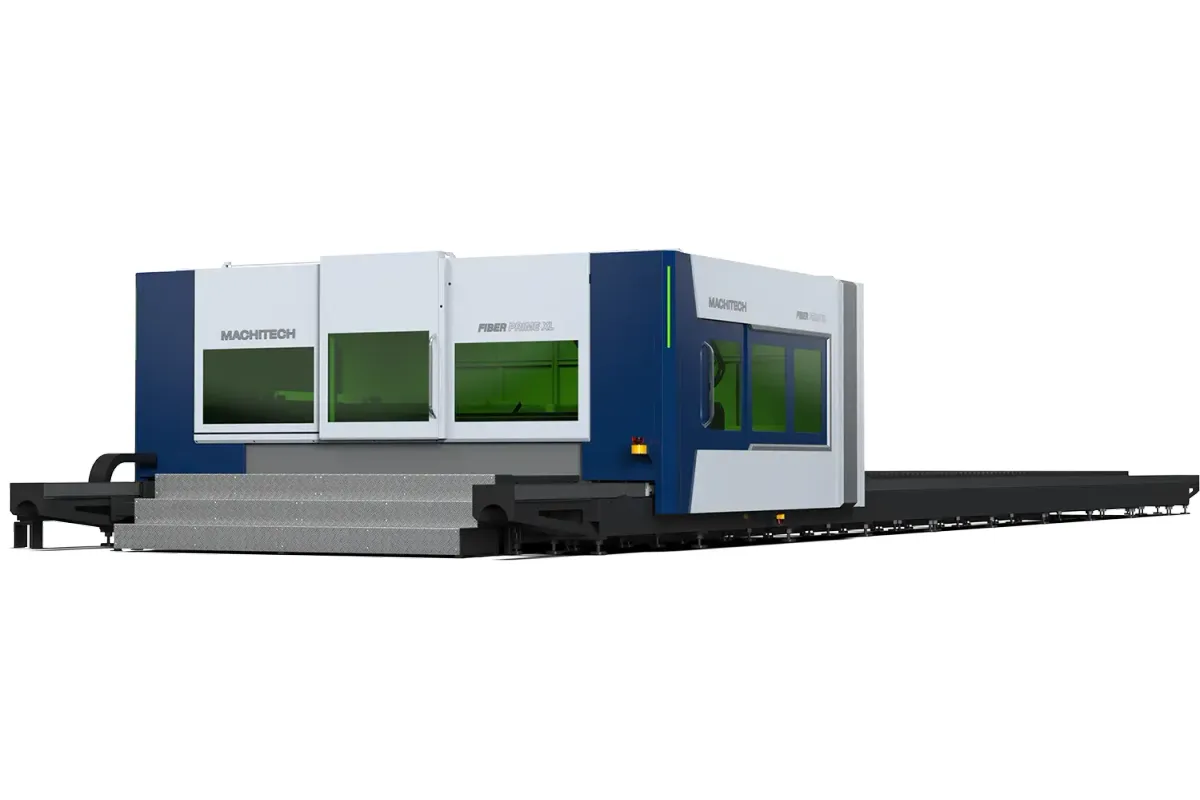

Machitech Fiber Prime XL 10x60
Image: machitech.com, Machitech Automation
Key Specifications
laser power
sheet length
sheet width
acceleration
rapid speed
workpiece weight
How much does the Machitech Fiber Prime XL 10x60 cost?
Price estimate
We do not have a price for the Machitech Fiber Prime XL 10x60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 756 in (19,200 mm) of sheet length, the Machitech Fiber Prime XL 10x60 is longer than any single plate most shops will buy. The bed is meant to be divided. Sheet width is 120 in (3,050 mm), and the source is 12 to 60 kW.
Think of it as a production line with one cutting head. Plates are laid end to end, the bridge moves from one to the next, and loading crews follow or lead it. The bed can be continuous or separated into sections for safety, and three laser radars around the bridge detect obstacles in its path. For a service centre this arrangement turns crane time, not cutting time, into the thing to schedule.
The table has to carry all of it. Workpiece weight is 98,000 lbs (44,450 kg) for 4 in steel plate, and the machine adds 73,400 lbs (33,030 kg) of its own. Total length is 1,109 in (28,170 mm). Width and height do not change from the shorter 10 ft sizes: 220 in (5,580 mm) and 100 in (2,550 mm).
Motion figures are those of the line, 1 G and 4,450 ipm (110 m/min). Smoke is pushed across the bed by a blower on the left and drawn out by an exhaust fan on the right, an arrangement that has to work over a much larger area here than on the 10x24. Thickness by source follows the common table: 2.35 in (60 mm) of mild steel at 20 kW, 2.75 in (70 mm) at 30 kW, 3 in (80 mm) at 40 kW and 4 in (100 mm) at 60 kW.
Full Specifications
| Parameter | Value |
|---|---|
| Laser Power | 12 to 60 kW |
| Sheet Length | 756 in (19,200 mm) |
| Sheet Width | 120 in (3,050 mm) |
| Acceleration | 1 G |
| Rapid Speed | 4,450 ipm (110 m/min) |
| Workpiece Weight | 98,000 lbs (44,450 kg) |
| Cutting Head | Precitec head made for the Fiber PRIME series |
| Bed Design | Segmented bridge and rail design with independent cutting table |
| Nesting Software | Lantek Expert Cut |
| Max Thickness 12kw | At 12 kW: mild steel 1.5 in (40 mm); stainless steel 1.5 in (40 mm); aluminum 1.5 in (40 mm); copper 0.4 in (10 mm); brass 0.5 in (12 mm) |
| Max Thickness 20kw | At 20 kW: mild steel 2.35 in (60 mm); stainless steel 2.35 in (60 mm); aluminum 2 in (50 mm); copper 0.5 in (12 mm); brass 0.6 in (16 mm) |
| Max Thickness 30kw | At 30 kW: mild steel 2.75 in (70 mm); stainless steel 2.75 in (70 mm); aluminum 2.75 in (70 mm); copper 0.6 in (16 mm); brass 0.8 in (20 mm) |
| Max Thickness 40kw | At 40 kW: mild steel 3 in (80 mm); stainless steel 3 in (80 mm); aluminum 3 in (80 mm); copper 0.7 in (18 mm); brass 1 in (25 mm) |
| Max Thickness 60kw | At 60 kW: mild steel 4 in (100 mm); stainless steel 4 in (100 mm); aluminum 4 in (100 mm); copper 0.8 in (20 mm); brass 1.2 in (30 mm) |
| Machine Length | 1,109 in (28,170 mm) |
| Machine Width | 220 in (5,580 mm) |
| Machine Height | 100 in (2,550 mm) |
| Machine Weight | 73,400 lbs (33,030 kg), without laser source, chiller and dust collector |
| Install and Training | Included, on-site |
| Remote Support | Included, unlimited |
Specifications sourced from machitech.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Sheet length of 756 in (19,200 mm) for several plates end to end
- Workpiece weight of 98,000 lbs (44,450 kg)
- Bed can be continuous or separated into zones
- Three laser radars for obstacle avoidance
- 12 to 60 kW sources, to 4 in (100 mm) in mild steel
Limitations
- Total length of 1,109 in (28,170 mm)
- Machine weight of 73,400 lbs (33,030 kg) before source and peripherals
- One cutting head serves the whole bed
- Acceleration of 1 G and 4,450 ipm (110 m/min) rapid speed
Best For
Frequently Asked Questions
01
Sheet length 756 in (19,200 mm), sheet width 120 in (3,050 mm), and a workpiece weight of 98,000 lbs (44,450 kg) stated for a 4 in steel plate.
02
For mild steel the table gives 1.5 in (40 mm) at 12 kW, 2.35 in (60 mm) at 20 kW, 2.75 in (70 mm) at 30 kW, 3 in (80 mm) at 40 kW and 4 in (100 mm) at 60 kW.
03
A left side blower and a right-side exhaust fan work together to remove smoke and dust during cutting and direct it to the dust collector. The dust collector is not included in the machine weight.
04
Total length 1,109 in (28,170 mm), total width 220 in (5,580 mm), total height 100 in (2,550 mm). It weighs 73,400 lbs (33,030 kg) without sheet, laser source, chiller and dust collector.
