Baykal BLU

Specs verified 2026-10-05 · baykal.com.tr Updated 2026-10-05

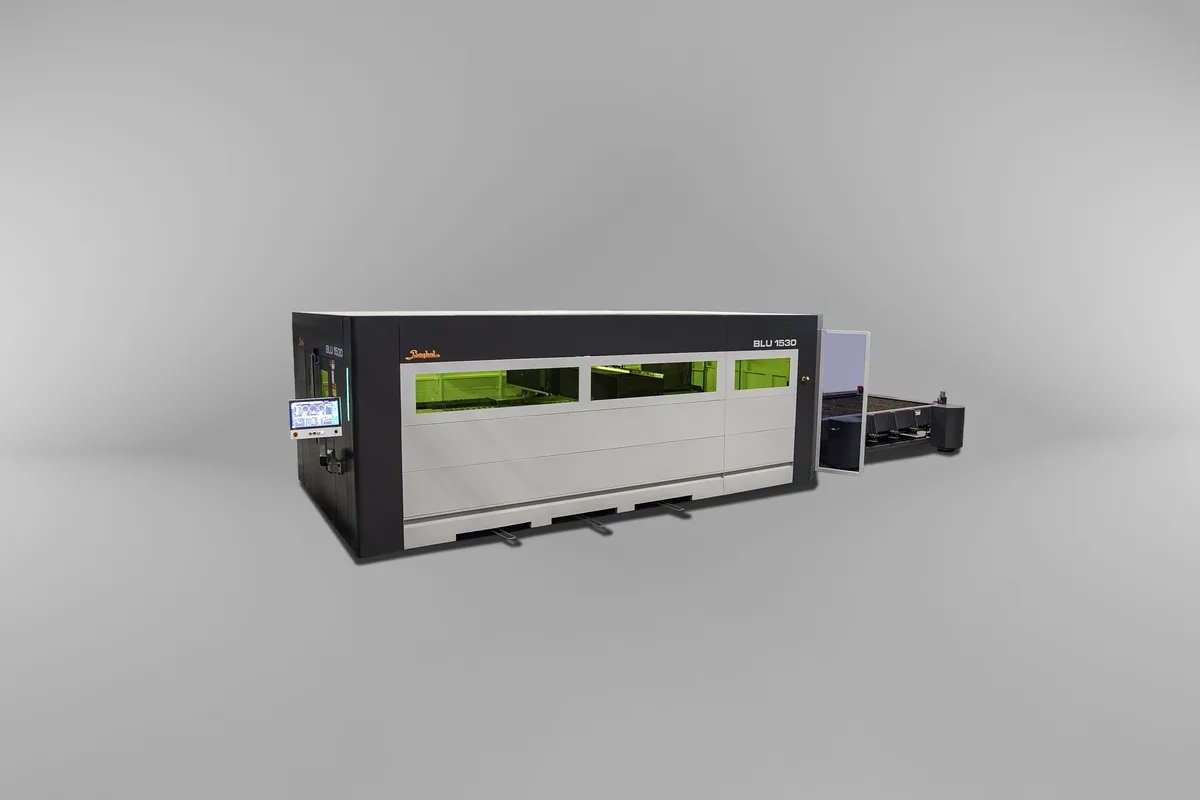

Image: baykal.com.tr, Baykal

Key Specifications

Rapid Traverse

115 m/min

Accuracy

±0.02 mm

Repeatability

±0.02 mm

working area width

1,500 mm - 3,000 mm (59.1 - 118.1 in)

working area length

3,000 mm - 15,000 mm (118.1 - 590.6 in)

laser power

20-30 kW

How much does the Baykal BLU cost?

Price estimate

Uncertain

We do not have a price for the Baykal BLU that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Baykal BLU is the ultra high power machine in Baykal's fiber laser range, listed with 20-30 kW sources. Working areas run from 1,500 mm - 3,000 mm (59.1 - 118.1 in) in width and 3,000 mm - 15,000 mm (118.1 - 590.6 in) in length.

Mechanically it reads like the rack and pinion version of the BLS PRO with a bigger laser on it. The X axis is rack and pinion and the Y axis is a linear motor, with Beckhoff motors and drives. Rapid traverse is 115 m/min, vector speed 165 m/min and acceleration 2.2G (22 m/s²). Positioning accuracy and repeatability are both ±0.02 mm, and the programmable feed rate goes up to 100 m/min. The head is a Precitec ProCutter 2.0, and the control is a Beckhoff CNC with an 18.5" screen.

Baykal's sheet for the BLU prints no cutting capacity table, which is unusual for a machine whose whole case is thickness and speed in heavy plate. Ask for cut charts at 20 and 30 kW in the materials you run before comparing it with a lower-power machine.

The transfer table is a motorized automatic exchange with a load of 2,500 kg (5,512 lb) for the 2000x4000 mm size and 3,500 kg (7,716 lb) for 2000x6000 mm. At 30 kW a full sheet of thick plate can weigh more than that, so table load deserves a check against your heaviest sheet. Nozzle cleaning and calibration are automatic. The bevel head, automatic nozzle changer, automatic nozzle centering and fume extractor are options.

Full Specifications

Parameter	Value
Working Area Width	1,500 mm - 3,000 mm (59.1 - 118.1 in)
Working Area Length	3,000 mm - 15,000 mm (118.1 - 590.6 in)
Laser Power	20-30 kW
Laser Source	IPG, nLIGHT or Max Photonics
Cutting Head	Precitec ProCutter 2.0 (Standard)
CNC Control	Beckhoff CNC (18.5" TFT, Windows 10)
Motion System	X Axis Rack & Pinion, Y Axis Linear
Motors and Drives	Beckhoff
Rapid Traverse Rate	115 m/min
Vector Speed	165 m/min
Acceleration	2.2G (22 m/s²)
Positioning Accuracy	±0.02 mm
Repeatability	±0.02 mm
Programmable Feed Rate	Up to 100 m/min
Transfer Table	Motorized - Automatic Exchange
Max Table Load	2,500 kg (5,512 lb) for 2000x4000 mm; 3,500 kg (7,716 lb) for 2000x6000 mm
Nesting Software	LANTEK Expert Cut II or Metalix AutoNest Pro
Nozzle Cleaning and Calibration	Automatic
Bevel Head	Optional
Automatic Nozzle Changer	Optional
Automatic Nozzle Centering	Optional
Fume Extractor	Optional

Specifications sourced from baykal.com.tr — verified 2026-10-05

Strengths & Limitations

Strengths

20-30 kW laser power, the highest in Baykal's fiber laser range
Working areas up to 3,000 mm wide and 15,000 mm long
115 m/min rapid traverse, 165 m/min vector speed and 2.2G (22 m/s²)
Motorized automatic exchange table
±0.02 mm positioning accuracy and repeatability

Limitations

Baykal's data sheet for this model prints no cutting capacity table
Table load of 3,500 kg (7,716 lb) for 2000x6000 mm limits how thick a full sheet can be
Bevel head, nozzle changer, nozzle centering and fume extractor are all optional
No X + Y linear motor version is listed, unlike the BLS PRO

Best For

Thick plate cutting where 20-30 kW is justified High-volume plate work on an exchange table Large formats up to 15,000 mm in length Shops moving work from plasma to laser

Frequently Asked Questions

01 What laser power does the Baykal BLU have?

The data sheet lists 20-30 kW, with resonators from IPG, nLIGHT or Max Photonics and a Precitec ProCutter 2.0 cutting head as standard. Baykal calls the BLU its Ultra High Power Fiber Laser Cutting Machine.

02 How does the BLU differ from the BLS PRO?

Mainly in laser power: 20-30 kW on the BLU against 6 kW - 15 kW on the BLS PRO. The BLU's motion figures match the rack and pinion version of the BLS PRO at 115 m/min and 2.2G (22 m/s²). The BLS PRO also offers an X + Y linear version; the BLU sheet does not.

03 What sheet sizes and loads does the BLU handle?

Working area width is 1,500 mm - 3,000 mm (59.1 - 118.1 in) and length 3,000 mm - 15,000 mm (118.1 - 590.6 in). The exchange table carries 2,500 kg (5,512 lb) in the 2000x4000 mm size and 3,500 kg (7,716 lb) in the 2000x6000 mm size.

04 Which features are optional on the BLU?

The bevel head, the automatic nozzle changer, automatic nozzle centering and the fume extractor are all listed as optional. Automatic nozzle cleaning and calibration and the motorized automatic exchange table are part of the listed machine.
