Litz VH-1000A

Q: How much does the Litz VH-1000A cost?

The price estimate for the Litz VH-1000A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-vh-1000a#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

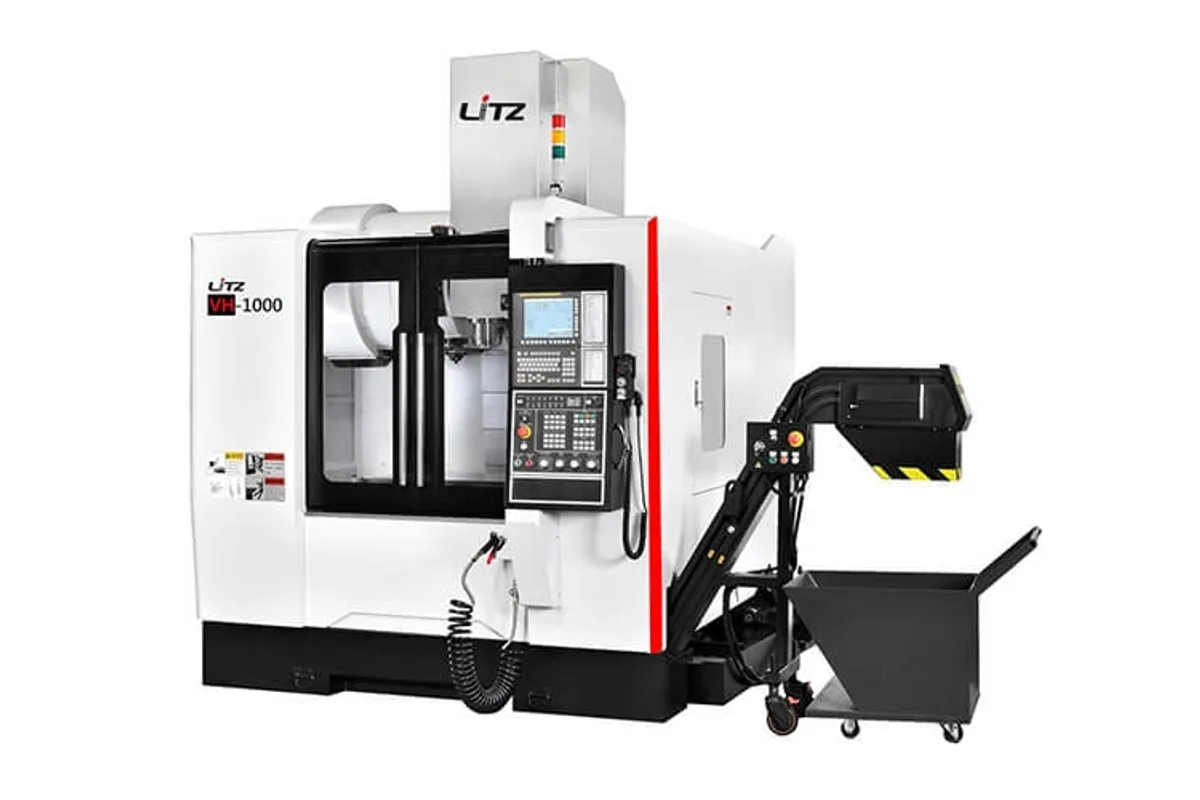

Litz VH series vertical machining center (VH-1000A)

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

12,000 rpm

Tool Capacity

Table Size

1,150 x 520 mm (45.3 x 20.5 in)

Spindle Power

11 / 15 kW (14.8 / 20.1 hp)

x axis travel

1,000 mm (39.4 in)

y axis travel

540 mm (21.3 in)

How much does the Litz VH-1000A cost?

Price estimate

Uncertain

We do not have a price for the Litz VH-1000A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz VH-1000A stretches the VH-800A frame to 1,000 mm (39.4 in) of X travel while keeping 540 mm (21.3 in) of Y, 525 mm (20.7 in) of Z and the same 60 / 60 / 30 m/min (2,362 / 2,362 / 1,181 ipm) rapids. It is a one-metre vertical machining center that moves like a small one.

What does the extra length cost? Very little, according to the table. Weight rises to 7,000 kg (15,432 lb) and coolant capacity to 370 L. Table load stays at 500 kg (1,102 lb), which is the catch: the 1,150 x 520 mm (45.3 x 20.5 in) table is longer but cannot carry more. Long aluminium extrusions, rails and bar-shaped parts suit it. Dense steel blocks belong on the VH-1100A, which is rated for 1,000 kg.

The spindle is a 12,000 rpm direct-drive unit, BBT-40, with an 11 / 15 kW (14.8 / 20.1 hp) motor. Built-in spindles of 15,000 rpm and 20,000 rpm are optional and require the spindle water chiller.

A 24-tool arm changer is standard, with 30T and 32T magazines as options. Tool limits are 300 mm (11.8 in) and 7 kg (15 lb). The table surface sits 970 mm (38.2 in) above the floor. Electrical supply is 25 kVA and the control is the FANUC 0i-MF PLUS 3; a Mitsubishi M80 can be ordered instead.

Full Specifications

Parameter	Value
X Axis Travel	1,000 mm (39.4 in)
Y Axis Travel	540 mm (21.3 in)
Z Axis Travel	525 mm (20.7 in)
Distance Spindle Nose to Table	100 to 625 mm (3.9 to 24.6 in)
Spindle Center to Z Rail Surface	570 mm (22.4 in)
Table Height From Floor	970 mm (38.2 in)
Max Spindle Speed	12,000 rpm
Tool Capacity	24
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Method	ARM
Tool Shank	BBT-40
Spindle Motor Power	11 / 15 kW (14.8 / 20.1 hp)
Axis Motors Xyz	3 / 3 / 4 kW
Table Size	1,150 x 520 mm (45.3 x 20.5 in)
Max Table Load	500 kg (1,102 lb)
T-Slot Width	18 mm (0.7 in)
T Slot Count	5
T Slot Distance From Center	100 mm (3.9 in)
CNC Control	FANUC 0i-MF PLUS 3
Machine Weight	7,000 kg (15,432 lb)
Coolant Tank Capacity	370 L
Power Requirement	25 kVA
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	60 / 60 / 30 m/min (2,362 / 2,362 / 1,181 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,000 mm (39.4 in) of X travel with 60 m/min (2,362 ipm) X and Y rapids
1,150 x 520 mm (45.3 x 20.5 in) table for long parts or three vises in a row
12,000 rpm direct-drive spindle with an 11 / 15 kW (14.8 / 20.1 hp) motor
Magazine can be upgraded from 24T to 30T or 32T

Limitations

Table load is 500 kg (1,102 lb), the same as the shorter VH-800A
Z travel is 525 mm (20.7 in)
Spindle motor is 11 / 15 kW where the VH-1100A has 15 / 18.5 kW
Coolant through the ballscrews and linear scales are options

Best For

Long, light parts such as extrusions and rails up to 1,000 mm Three-vise production setups at high rapid rates Shops that want one-metre travel on a 25 kVA supply

Frequently Asked Questions

01 What is the X travel of the Litz VH-1000A?

X travel is 1,000 mm (39.4 in), with 540 mm (21.3 in) in Y and 525 mm (20.7 in) in Z. The table is 1,150 x 520 mm (45.3 x 20.5 in) and the spindle nose sits 100 to 625 mm (3.9 to 24.6 in) above it.

02 How much weight can the VH-1000A table take?

500 kg (1,102 lb). That equals the rating of the VH-800A, so the longer table adds length, not capacity. The VH-1100A is the next model up and is rated for 1,000 kg (2,205 lb).

03 What spindle speeds are available on the VH-1000A?

The standard direct-drive spindle runs at 12,000 rpm. Options are a 15,000 rpm direct-drive spindle and built-in spindles at 15,000 rpm and 20,000 rpm. Litz notes that the spindle water chiller is a must for the built-in spindles.

04 What are the weight and supply figures for the VH-1000A?

The machine weighs 7,000 kg (15,432 lb), needs 25 kVA and 6 kg/cm² compressed air, and has a 370 L coolant tank. Axis motors are 3 / 3 / 4 kW for X, Y and Z.
