Litz DM-800

Q: How much does the Litz DM-800 cost?

The price estimate for the Litz DM-800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-dm-800#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

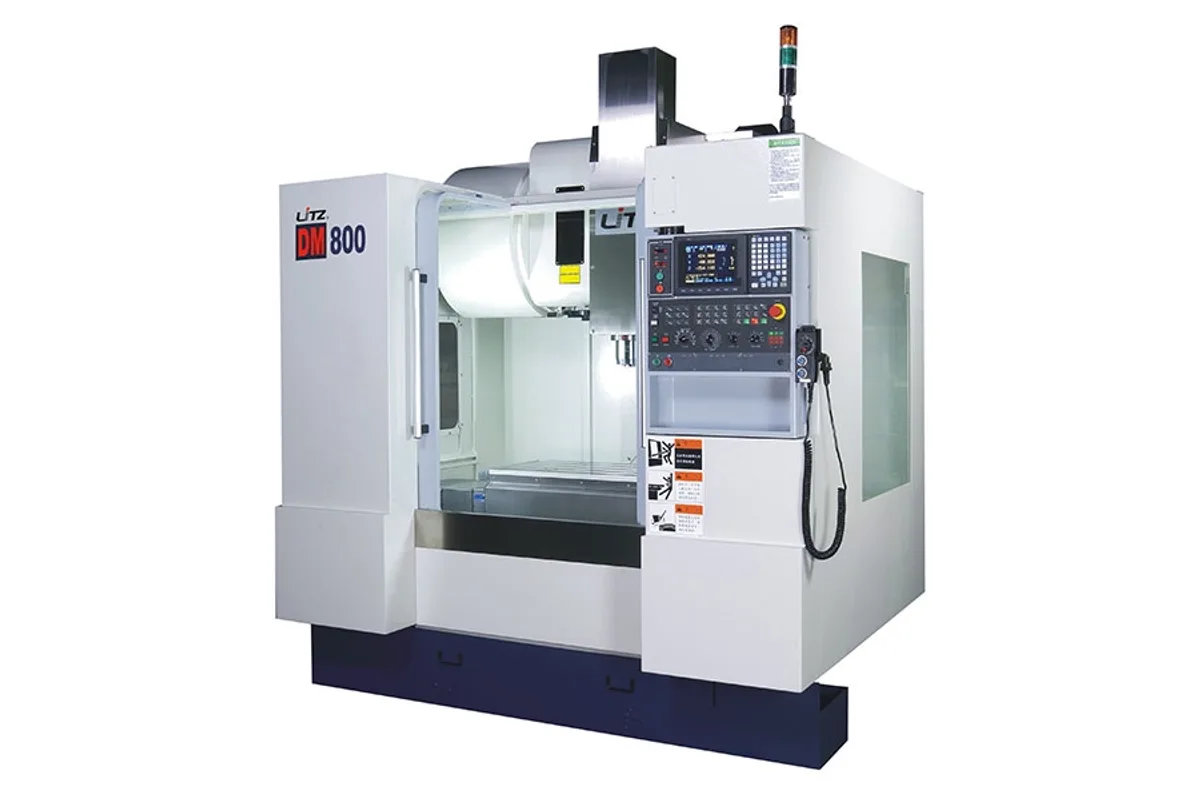

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

18,000 rpm

Tool Capacity

Table Size

910 x 500 mm (35.8 x 19.7 in)

Spindle Power

15 / 18.5 kW (20.1 / 24.8 hp) (continuous / 30 min rated)

x axis travel

800 mm (31.5 in)

y axis travel

500 mm (19.7 in)

How much does the Litz DM-800 cost?

Price estimate

Uncertain

We do not have a price for the Litz DM-800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz DM-800 pairs an 18,000 rpm BBT-40 spindle with an 800 x 500 x 540 mm work envelope (31.5 x 19.7 x 21.3 in). It shares its frame dimensions with the DV-800, down to the 910 x 500 mm (35.8 x 19.7 in) table and the 5,300 kg (11,684 lb) machine weight. The spindle is what separates them.

Where the DV-800 has 10,000 rpm and a 7.5 / 11 kW motor, the DM-800 has 18,000 rpm and 15 / 18.5 kW (20.1 / 24.8 hp), continuous and 30 min rated. So the DM is not a lighter, faster-spinning variant. It has more speed and more motor at once, which lets it rough with a 40-taper cutter and then finish with a small ball mill in the same setup. That is the pattern of mould and die work and of aluminium structural parts.

Litz also lists coolant through the ballscrews on the three axes as an option for this model, alongside linear scales and roller type linear guideways. On long finishing programs, ballscrew heat is what moves a dimension over the day, so these are the options to price if tolerances are tight.

The table carries 500 kg (1,102 lb). Tools may be 270 mm (10.6 in) long and 8 kg (18 lb), 24 of them in an arm-type changer. Rapids are 36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm) and the supply requirement is 20 kVA.

Full Specifications

Parameter	Value
X Axis Travel	800 mm (31.5 in)
Y Axis Travel	500 mm (19.7 in)
Z Axis Travel	540 mm (21.3 in)
Distance Spindle Nose to Table	150 to 690 mm (5.9 to 27.2 in)
Max Spindle Speed	18,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	80 / 125 mm (3.1 / 4.9 in)
Max Tool Length	270 mm (10.6 in)
Max Tool Weight	8 kg (18 lb)
Tool Change Method	Arm
Tool Shank	BBT-40
Spindle Motor Power	15 / 18.5 kW (20.1 / 24.8 hp) (continuous / 30 min rated)
Axis Motors Xyz	2.0 / 2.0 / 3.5 kW
Table Size	910 x 500 mm (35.8 x 19.7 in)
Max Table Load	500 kg (1,102 lb)
T-Slots	5 x 18 mm x 100 mm (number x width x distance from the center)
Cutting Feed Rate	1-20,000 mm/min (up to 787 ipm)
CNC Control	Mitsubishi M80
Machine Weight	5,300 kg (11,684 lb)
Power Requirement	20 kVA
Coolant Tank Capacity	290 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	36 / 36 / 24 m/min (1,417 / 1,417 / 945 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

18,000 rpm spindle with a 15 / 18.5 kW (20.1 / 24.8 hp) motor on a BBT-40 shank
Same 800 x 500 x 540 mm envelope and 500 kg (1,102 lb) table load as the DV-800
Coolant through the ballscrews, linear scales and roller type linear guideways are available as options
Spindle oil cooler and spindle head coolant cooling system are standard

Limitations

Tool length limit of 270 mm (10.6 in) and tool weight limit of 8 kg (18 lb)
Coolant through the spindle is an option, not standard
Spindle nose stays at least 150 mm (5.9 in) above the table
Chip conveyor is optional; a chip auger and chip cart are standard

Best For

Mould and die work that roughs and finishes in one setup Aluminium parts that need both metal removal and 18,000 rpm finishing Workpieces up to 500 kg (1,102 lb) inside 800 x 500 mm

Frequently Asked Questions

01 What spindle does the Litz DM-800 have?

An 18,000 rpm spindle with a BBT-40 tool shank. The motor is rated 15 / 18.5 kW (20.1 / 24.8 hp), continuous and 30 min. Spindle oil cooler, spindle air seal system and spindle head coolant cooling system are standard; coolant through the spindle is an option.

02 How is the DM-800 different from the DV-800?

Travels, table, weight and rapids are the same in both tables. The DV-800 has a 10,000 rpm spindle with a 7.5 / 11 kW motor; the DM-800 has 18,000 rpm and 15 / 18.5 kW. The DM-800 also lists coolant through the ballscrews as an option.

03 What are the travels of the DM-800?

800 mm (31.5 in) in X, 500 mm (19.7 in) in Y and 540 mm (21.3 in) in Z, with 150 to 690 mm (5.9 to 27.2 in) between the spindle nose and the table. The table measures 910 x 500 mm (35.8 x 19.7 in).

04 What tool capacity does the DM-800 have?

The arm-type automatic tool changer holds 24 tools. Tools can be up to 270 mm (10.6 in) long and weigh up to 8 kg (18 lb). Maximum tool diameter is given as 80 / 125 mm (3.1 / 4.9 in).
