Litz VC-1200A(B)
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Litz VC-1200A(B) cost?
Price estimate
We do not have a price for the Litz VC-1200A(B) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz VC-1200A(B) is a vertical machining center with 1,200 mm (47.2 in) of X travel, 600 mm (23.6 in) of Y and 675 mm (26.6 in) of Z, sold in two spindle versions that share one column in the maker's table. The model name itself carries the bracket, and so do several rows.
The first figure in each of those rows describes a BT-40 machine: 10,000 rpm, an 11 / 15 kW (14.8 / 20.1 hp) motor, tools up to 7 kg (15 lb), and a weight of 8,500 kg (18,739 lb). The bracketed figures are 6,000 rpm, BT-50, 15 / 18.5 kW (20.1 / 24.8 hp), 15 kg (33 lb) tools, 4 / 4 / 4 kW axis motors and 9,000 kg (19,841 lb). They read as the B version. Confirm with Litz which set applies to the machine quoted, because the two are very different tools.
Shared figures are simpler. The table is 1,220 x 620 mm (48.0 x 24.4 in) and carries 1,000 kg (2,205 lb). X and Y rapids are 24 m/min (945 ipm), a step down from the 36 m/min of the VC-1000A. Daylight is 100 to 775 mm (3.9 to 30.5 in).
The standard magazine holds 24 tools up to 300 mm (11.8 in) long, and a 32T arm type magazine is optional. FANUC 0iMF-Plus is standard. Supply is 35 kVA and the coolant tank holds 360 L.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,200 mm (47.2 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 675 mm (26.6 in) |
| Distance Spindle Nose to Table | 100 to 775 mm (3.9 to 30.5 in) |
| Max Spindle Speed | 10,000 rpm; in brackets: 6,000 rpm |
| Tool Capacity | 24 |
| Max Tool Diameter (full magazine) | 80 / 125 mm (3.1 / 4.9 in) |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 7 kg (15 lb); in brackets: 15 kg (33 lb) |
| Tool Change Method | ARM |
| Tool Shank | BT-40 (BT-50) |
| Spindle Motor Power | 11 / 15 kW (14.8 / 20.1 hp); in brackets: 15 / 18.5 kW (20.1 / 24.8 hp) |
| Axis Motors Xyz | 3 / 3 / 4 kW; in brackets: 4 / 4 / 4 kW |
| Table Size | 1,220 x 620 mm (48.0 x 24.4 in) |
| Max Table Load | 1,000 kg (2,205 lb) |
| T-Slots | 5 x 18 x 100 mm |
| Rapid Traverse X | 24 m/min (945 ipm) |
| Rapid Traverse Y | 24 m/min (945 ipm) |
| Rapid Traverse Z | 20 m/min (787 ipm); in brackets: 18 m/min (709 ipm) |
| Cutting Feed Rate | 1-20,000 mm/min (up to 787 ipm) |
| Machine Weight | 8,500 kg (18,739 lb); in brackets: 9,000 kg (19,841 lb) |
| Power Requirement | 35 kVA |
| Coolant Tank Capacity | 360 L |
| Compressed Air | 6 kg/cm² |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,200 x 600 x 675 mm travels with a 1,000 kg (2,205 lb) table load
- Available as a 10,000 rpm BT-40 machine or, per the bracketed figures, with BT-50 at 6,000 rpm
- Up to 775 mm (30.5 in) between spindle nose and table
- 32T arm type magazine as an option
Limitations
- X and Y rapids of 24 m/min (945 ipm), slower than the VC-1000A
- The table mixes two versions in one column, so each quoted figure needs confirming
- Chip conveyor and chip cart are options
- Needs a 35 kVA supply, against 25 kVA for the VC-1000A
Best For
Frequently Asked Questions
01
The maker prints one column for the VC-1200A(B) and gives a second value in brackets in several rows: 6,000 rpm, BT-50, 15 / 18.5 kW, 15 kg (33 lb) tool weight and 9,000 kg (19,841 lb) machine weight. They correspond to the bracketed B in the name.
02
X is 1,200 mm (47.2 in), Y is 600 mm (23.6 in) and Z is 675 mm (26.6 in). The table measures 1,220 x 620 mm (48.0 x 24.4 in) and carries 1,000 kg (2,205 lb), with T-slots listed as 5 x 18 x 100 mm.
03
The first figures are 10,000 rpm with BT-40 and an 11 / 15 kW (14.8 / 20.1 hp) motor. The bracketed figures are 6,000 rpm with BT-50 and 15 / 18.5 kW (20.1 / 24.8 hp). The accessory list shows a 10,000 rpm belt spindle and BT-40 as standard.
04
X and Y rapids are 24 m/min (945 ipm). Z is 20 m/min (787 ipm), with 18 m/min (709 ipm) printed in brackets. Cutting feed is programmable up to 20,000 mm/min.
More from Litz
Other Vertical Machining Centers (VMC)

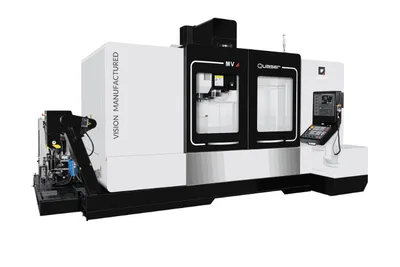

Quaser MV6 (#40)

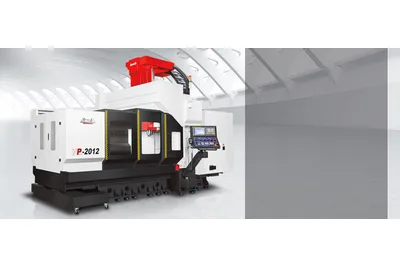

AWEA VP-2012

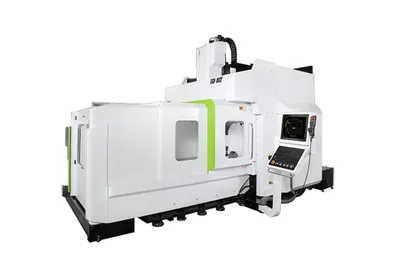

Hartford TGV-1612
GF Mikron HSM 500 GRAPHITE

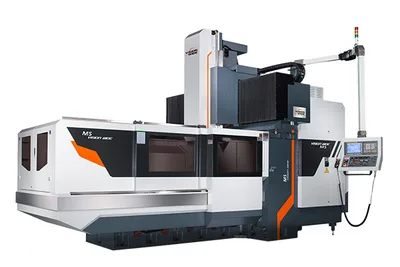

Vision Wide MS-2123
