Litz LG-760

Q: How much does the Litz LG-760 cost?

The price estimate for the Litz LG-760 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-lg-760#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

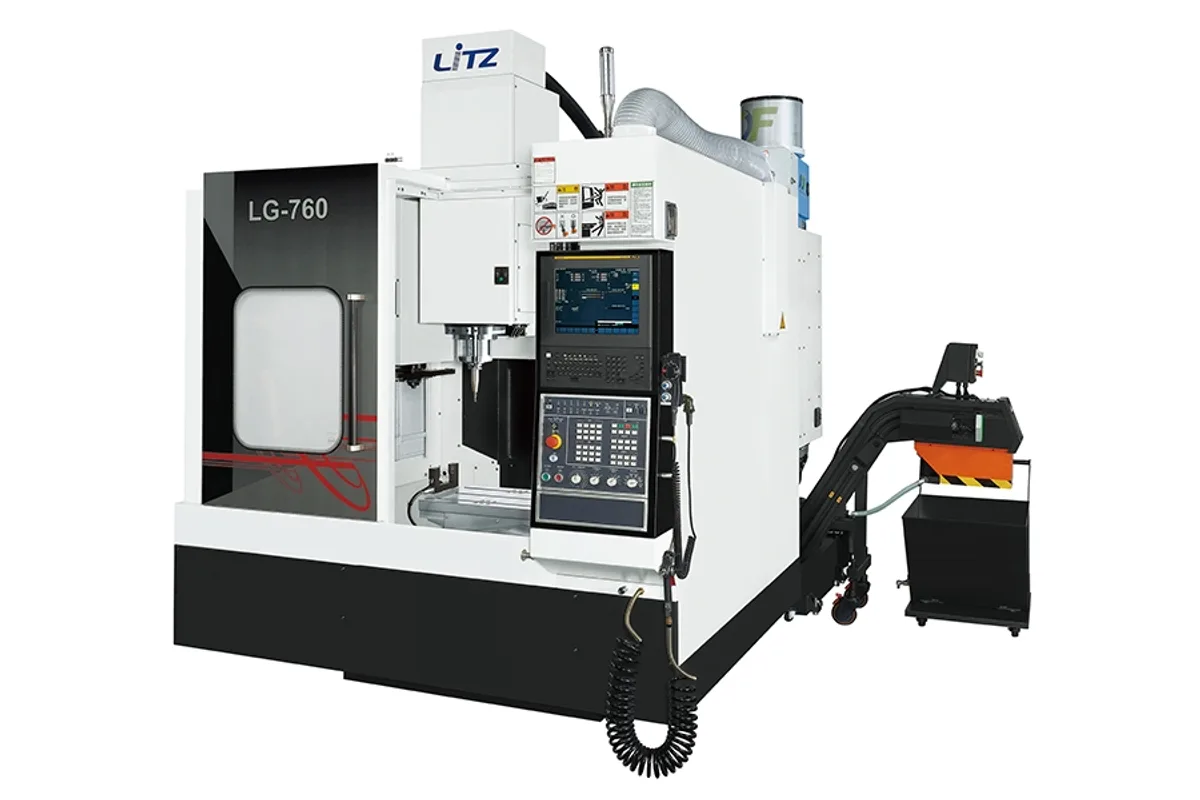

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

15,000 rpm

Tool Capacity

Table Size

1,000 x 460 mm (39.4 x 18.1 in)

Spindle Power

15 / 18.5 / 22 kW (20.1 / 24.8 / 29.5 hp)

x axis travel

760 mm (29.9 in) + 60 mm (2.4 in) tool change travel

y axis travel

460 mm (18.1 in)

How much does the Litz LG-760 cost?

Price estimate

Uncertain

We do not have a price for the Litz LG-760 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz LG-760 is a small double-column gantry machining center. X travel is 760 mm (29.9 in) plus a further 60 mm (2.4 in) of tool change travel, with 460 mm (18.1 in) in both Y and Z, and the direct-drive spindle runs at 15,000 rpm.

The layout is what a buyer pays for. A bridge supported on two columns holds the spindle over the centre of the work at every Y position, so stiffness does not fall away as the head moves outward, the way it does on a C-frame with a long overhang. On a machine this size the benefit is accuracy and surface finish in mould cores, electrodes and precision plates.

Thermal control gets the same attention. Coolant through the ballscrews is standard on the three axes, the spindle has an oil cooler, and thermal compensation and linear scales are on the option list. Rapids are equal on all axes at 36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm), driven by 3.5 kW motors.

Litz lists the spindle motor as 15 / 18.5 / 22 kW (20.1 / 24.8 / 29.5 hp) on BBT-40 tooling. A 20,000 rpm spindle, an HSK63A interface and a 32T magazine are options; 24 tools are standard, each up to 300 mm (11.8 in) and 7 kg (15 lb). The table is 1,000 x 460 mm (39.4 x 18.1 in) with a 700 kg (1,543 lb) limit. A 4th/5th rotary axis is optional. Machine weight is 8,000 kg (17,637 lb).

Full Specifications

Parameter	Value
X Axis Travel	760 mm (29.9 in) + 60 mm (2.4 in) tool change travel
Y Axis Travel	460 mm (18.1 in)
Z Axis Travel	460 mm (18.1 in)
Max Spindle Speed	15,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	75 / 125 mm (3.0 / 4.9 in)
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Method	Arm
Tool Shank	BBT-40
Spindle Motor Power	15 / 18.5 / 22 kW (20.1 / 24.8 / 29.5 hp)
Axis Motors Xyz	3.5 / 3.5 / 3.5 kW
Table Size	1,000 x 460 mm (39.4 x 18.1 in)
Max Table Load	700 kg (1,543 lb)
CNC Control	FANUC 0iMF
Machine Weight	8,000 kg (17,637 lb)
Power Requirement	25 kVA
Coolant Tank Capacity	350 L
Rapid Traverse Xyz	36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Double-column gantry structure with a 15,000 rpm direct-drive spindle
Coolant through the ballscrews is standard on the three axes
36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm) rapids, equal in X, Y and Z
15 / 18.5 / 22 kW (20.1 / 24.8 / 29.5 hp) spindle motor
20,000 rpm spindle, HSK63A and a 4th/5th rotary axis are options

Limitations

Y and Z travels are only 460 mm (18.1 in)
Table load limited to 700 kg (1,543 lb)
Linear scales and thermal compensation cost extra
8,000 kg (17,637 lb) for a 760 mm machine

Best For

Mould cores, cavities and electrodes needing fine surface finish Precision plates within 760 x 460 mm High-speed finishing where a bridge structure is preferred

Frequently Asked Questions

01 What kind of machine is the Litz LG-760?

Litz calls it a vertical machining center of double columns gantry type. The spindle is carried on a bridge between two columns. Travels are 760 mm (29.9 in) in X, plus 60 mm (2.4 in) of tool change travel, and 460 mm (18.1 in) in Y and Z.

02 What spindle does the LG-760 have?

A direct-drive spindle at 15,000 rpm with BBT-40 tooling and a spindle oil cooler. The motor is listed as 15 / 18.5 / 22 kW (20.1 / 24.8 / 29.5 hp). A 20,000 rpm direct-drive spindle, coolant through the spindle and HSK63A are options.

03 How large is the LG-760 table?

The table is 1,000 x 460 mm (39.4 x 18.1 in) and carries up to 700 kg (1,543 lb). The machine weighs 8,000 kg (17,637 lb) and needs a 25 kVA supply. The coolant tank holds 350 L.

04 Which controls are available on the LG-760?

FANUC 0iMF is named in the specification table and FANUC is marked standard in the accessory list. Mitsubishi M830 and Siemens 840D are listed as options.
