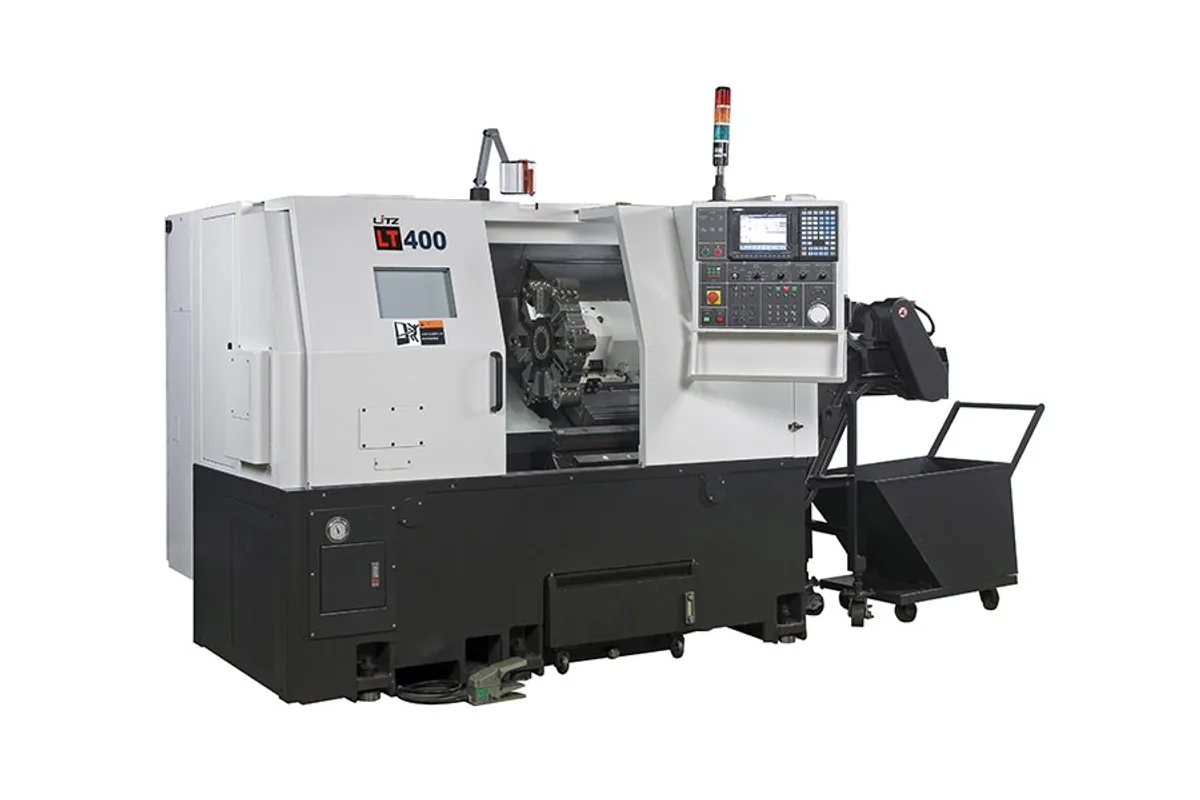

Litz LT-400
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
x axis travel
z axis travel
spindle nose
How much does the Litz LT-400 cost?
Price estimate
We do not have a price for the Litz LT-400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LT-400 is a two-axis CNC turning lathe one size above the LT-350, with an A2-6 spindle nose, 52 mm (2.0 in) bar capacity, a 320 mm (12.6 in) maximum turning diameter and 530 mm (20.9 in) of turning length.
Length is where it gains most. Between-centres distance is 645 mm (25.4 in) and Z travel 530 mm, enough for motor shafts, spindles and hydraulic rods that the LT-350 cannot hold at 350 mm. The tailstock grows with it, to a 90 mm (3.5 in) quill with an MT5 taper and 435 mm (17.1 in) of body travel.
The spindle trades speed for strength. Its range is 30-4,000 rpm with an 11 / 15 kW (14.8 / 20.1 hp) motor and a 100 mm (3.9 in) front bearing, against the 6,000 rpm and 7.5 / 11 kW of the LT-350. Larger diameters at lower speed is the right direction for steel shafts and cast flanges. Turret tooling steps up as well, to 25 mm (1.0 in) OD shanks and 40 mm (1.6 in) boring bars in 12 stations, indexed by a 1.2 kW servo motor.
Axis rapids are a little lower, 20 m/min (787 ipm) in X and 24 m/min (945 ipm) in Z. The machine is 2,250 mm (88.6 in) long, weighs 4,300 kg (9,480 lb) and still runs on a 15 kVA supply. Coolant capacity is 200 L. A robot interface and automatic front door are among the options for automated loading.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 180 mm (7.1 in) |
| Z Axis Travel | 530 mm (20.9 in) |
| Max Spindle Speed | 30-4,000 rpm |
| Spindle Nose | A2-6 |
| Spindle Bearing Inner Diameter | 100 mm (3.9 in) |
| Spindle Bore | 63 mm (2.5 in) |
| Swing Over Bed | 400 mm (15.7 in) |
| Distance Between Centers | 645 mm (25.4 in) |
| Standard Turning Diameter | 218 mm (8.6 in) |
| Max Turning Diameter | 320 mm (12.6 in) |
| Max Turning Length | 530 mm (20.9 in) |
| Bar Capacity | 52 mm (2.0 in) |
| Turret Stations | 12 stations |
| OD Tool Size | 25 mm (1.0 in) |
| Max ID Tool Diameter | 40 mm (1.6 in) |
| CNC Control | FANUC 0i-MATE-TD |
| Tailstock Travel | 435 mm (17.1 in) |
| Tailstock Quill Travel | 100 mm (3.9 in) |
| Tailstock Taper | MT5 |
| Tailstock Quill Diameter | 90 mm (3.5 in) |
| Rapid Traverse X | 20 m/min (787 ipm) |
| Rapid Traverse Z | 24 m/min (945 ipm) |
| Spindle Motor Power | 11 / 15 kW (14.8 / 20.1 hp) |
| X Servo Motor | 1.2 kW |
| Z Servo Motor | 2.5 kW |
| Turret Servo Motor | 1.2 kW |
| Power Requirement | 15 kVA |
| Coolant Tank Capacity | 200 L |
| Machine Weight | 4,300 kg (9,480 lb) |
| Machine Length | 2,250 mm (88.6 in) |
| Machine Height | 1,770 mm (69.7 in) |
| Machine Width | 1,670 mm (65.7 in) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 530 mm (20.9 in) of turning length with 645 mm (25.4 in) between centres
- 11 / 15 kW (14.8 / 20.1 hp) spindle motor on an A2-6 nose
- 52 mm (2.0 in) bar capacity
- 25 mm (1.0 in) OD tools and 40 mm (1.6 in) boring bars in a 12-station servo turret
- MT5 tailstock with a 90 mm (3.5 in) quill
Limitations
- Spindle speed tops out at 4,000 rpm
- Rapids of 20 m/min (787 ipm) in X and 24 m/min (945 ipm) in Z are below those of the LT-350
- Two-axis only in this table: no milling or Y axis
- Robot interface, parts catcher and tool setter are options
Best For
Frequently Asked Questions
01
Maximum turning length is 530 mm (20.9 in), with a centre distance of 645 mm (25.4 in). Maximum turning diameter is 320 mm (12.6 in) and standard turning diameter is 218 mm (8.6 in).
02
The LT-400 has an A2-6 spindle at 30-4,000 rpm with 11 / 15 kW, 52 mm bar capacity and 530 mm of turning length. The LT-350 has an A2-5 spindle at 40-6,000 rpm with 7.5 / 11 kW, 45 mm bar capacity and 350 mm of turning length.
03
The turret has 12 stations. OD tool size is 25 mm (1.0 in) and maximum ID tool diameter is 40 mm (1.6 in). The turret is indexed by a 1.2 kW servo motor. Boring bar bushes, ID and OD tool holders are supplied as standard accessories.
04
Length is 2,250 mm (88.6 in), width 1,670 mm (65.7 in) and height 1,770 mm (69.7 in). The machine weighs 4,300 kg (9,480 lb), needs 15 kVA and holds 200 L of coolant.
