Litz LB-130

Q: How much does the Litz LB-130 cost?

The price estimate for the Litz LB-130 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-lb-130#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

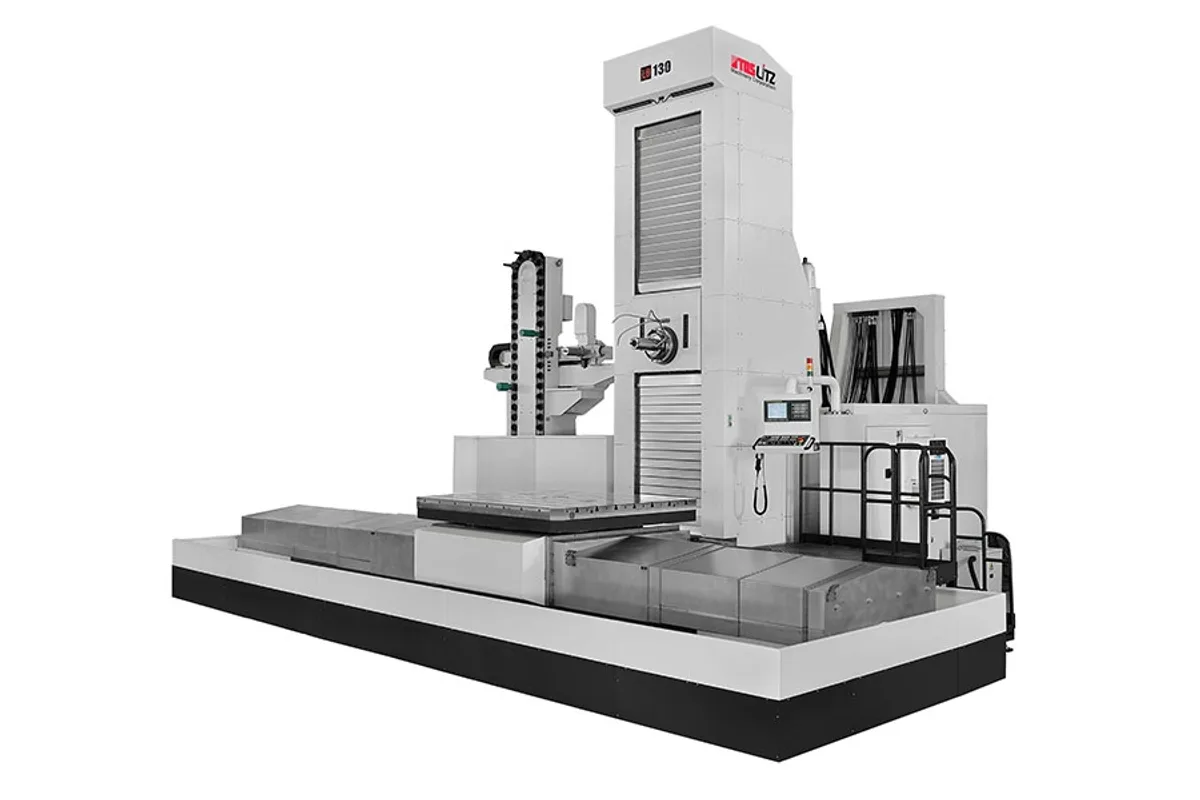

Litz LB-130 horizontal boring and milling machine

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

2,500 rpm

Spindle Taper

BT No.50+MAS2

Tool Capacity

60; optional 90 or 120

Spindle Power

30 / 37 kW (40.2 / 49.6 hp) (continuous / 30 min)

x axis travel

4,000 mm (157.5 in); optional 3,000 mm (118.1 in) or 5,000 mm (196.9 in)

y axis travel

2,500 mm (98.4 in); optional 3,000 mm (118.1 in)

How much does the Litz LB-130 cost?

Price estimate

Uncertain

We do not have a price for the Litz LB-130 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz LB-130 is the larger of the two LB horizontal boring and milling machines, built around a 130 mm (5.1 in) boring spindle with 800 mm (31.5 in) of W-axis extension and a 30 / 37 kW (40.2 / 49.6 hp) geared drive.

Size is configurable. X travel is 4,000 mm (157.5 in) as standard, with 3,000 mm (118.1 in) and 5,000 mm (196.9 in) listed as options, and Y is 2,500 mm (98.4 in) or optionally 3,000 mm. A buyer therefore chooses the envelope around the largest workpiece instead of accepting one fixed size.

Torque is the reason to pick this machine: 2,000 / 2,470 Nm (1,475 / 1,822 lb-ft) at the spindle, with a top speed of 2,500 rpm and a BT No.50 taper. With 800 mm of spindle extension, a boring bar reaches far into a deep casting while the column stays back. The rotary table positions to 0.001° and is clamped with 13,500 kg (29,762 lb), or 20,000 kg (44,092 lb) as an option. Its T-slots are 22 mm (0.9 in), optionally 24 mm.

Axis rapids are 21 m/min (827 ipm) in X, Y and Z, quick for a machine of this weight, while W moves at 4 m/min (157 ipm). The tool magazine holds 60 tools, optionally 90 or 120, each up to 25 kg (55 lb), and a tool change takes 16 s.

Net weight is 56,000 kg (123,457 lb) and the outline is 8,500 x 8,500 x 5,810 mm. Power consumption is listed at 70 kVA, and the coolant tank holds 500 L.

Full Specifications

Parameter	Value
X Axis Travel	4,000 mm (157.5 in); optional 3,000 mm (118.1 in) or 5,000 mm (196.9 in)
Y Axis Travel	2,500 mm (98.4 in); optional 3,000 mm (118.1 in)
W Axis Travel	800 mm (31.5 in)
Spindle Motor Power	30 / 37 kW (40.2 / 49.6 hp) (continuous / 30 min)
Spindle Torque	2,000 / 2,470 Nm (1,475 / 1,822 lb-ft)
Spindle Diameter	130 mm (5.1 in)
Max Spindle Speed	2,500 rpm
Spindle Taper	BT No.50+MAS2
Spindle Lubrication	Oil lubrication
Spindle Cooling	Oil Cooler
Spindle Drawbar Force	1,800 to 2,100 kg (3,968 to 4,630 lb)
T-Slot Width	22 mm (0.9 in); optional 24 mm (0.9 in)
Table Clamping Force	13,500 kg (29,762 lb); optional 20,000 kg (44,092 lb)
Table Indexing	0.001°
Rapid Traverse Xyz	21 m/min (827 ipm)
Rapid Traverse W	4 m/min (157 ipm)
Table Speed Max	1 rpm; optional 2 rpm
Coolant Tank Capacity	500 L
Coolant Pump Motor	1.35 kW
Hydraulic System Power	10 HP (7.5 kW)
Max Tool Diameter (full magazine)	120 / 250 mm (4.7 / 9.8 in)
Max Tool Weight	25 kg (55 lb)
Tool Change Time	16 s
Tool Capacity	60; optional 90 or 120
Power Requirement	70 kVA
Compressed Air	6 kg/cm²
Machine Dimensions	8,500 x 8,500 x 5,810 mm (334.6 x 334.6 x 228.7 in)
Machine Weight	56,000 kg (123,457 lb) net
Machine Gross Weight	58,000 kg (127,866 lb)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,000 / 2,470 Nm (1,475 / 1,822 lb-ft) of spindle torque from a 30 / 37 kW (40.2 / 49.6 hp) drive
800 mm (31.5 in) of W-axis spindle extension
X travel of 4,000 mm (157.5 in), with 3,000 mm and 5,000 mm versions
21 m/min (827 ipm) rapid traverse in X, Y and Z
Table clamping force of 13,500 kg (29,762 lb), with 20,000 kg (44,092 lb) optional

Limitations

Maximum spindle speed is 2,500 rpm
Each tool change takes 16 s
56,000 kg (123,457 lb) net weight and an 8,500 x 8,500 mm outline
Power consumption of 70 kVA
Coolant through the spindle and the milling heads are options

Best For

Boring large machine frames, housings and valve bodies Deep bores that need up to 800 mm (31.5 in) of spindle extension Heavy face milling in steel and cast iron with BT No.50 tools Long workpieces on the 5,000 mm (196.9 in) X-travel option

Frequently Asked Questions

01 What travel options does the Litz LB-130 have?

X travel is 4,000 mm (157.5 in), with 3,000 mm (118.1 in) and 5,000 mm (196.9 in) as options. Y travel is 2,500 mm (98.4 in), with 3,000 mm optional. The spindle extension (W axis) travels 800 mm (31.5 in).

02 How much power and torque does the LB-130 spindle have?

Spindle output is 30 / 37 kW (40.2 / 49.6 hp), continuous / 30 min, and maximum output torque is 2,000 / 2,470 Nm (1,475 / 1,822 lb-ft). The spindle is 130 mm (5.1 in) in diameter with a BT No.50 taper and runs up to 2,500 rpm.

03 What tool changer comes with the LB-130?

A floor-type automatic tool changing mechanism with a 60-station magazine is standard, and 90 or 120 stations are optional. Maximum tool weight is 25 kg (55 lb), maximum tool diameter is listed as 120 / 250 mm (4.7 / 9.8 in), and tool changing time is 16 s.

04 What does the LB-130 need for installation?

Machine outline dimensions are 8,500 x 8,500 x 5,810 mm. Net weight is 56,000 kg (123,457 lb) and gross weight 58,000 kg (127,866 lb). Power consumption is 70 kVA and the minimum pneumatic pressure is 6 kg/cm². The coolant tank holds 500 L.
