Litz LT-350

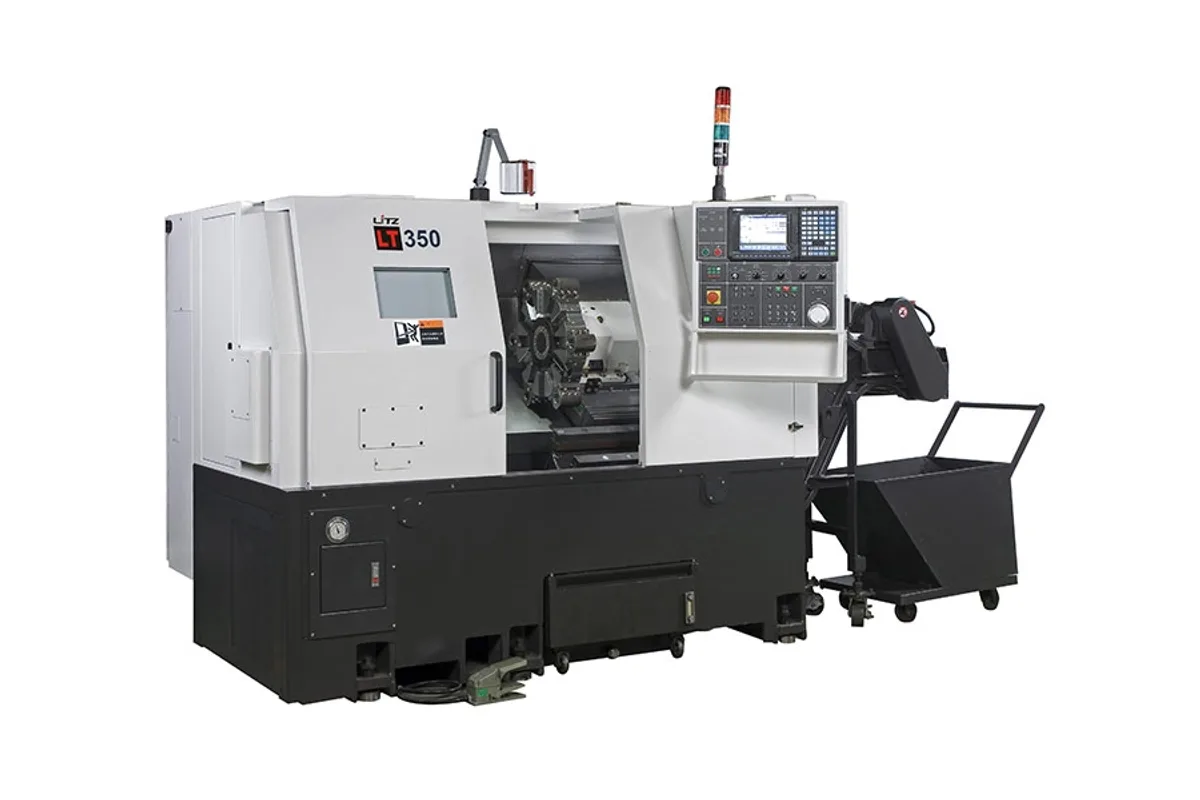

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
x axis travel
z axis travel
spindle nose
How much does the Litz LT-350 cost?
Price estimate
We do not have a price for the Litz LT-350 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LT-350 is a compact two-axis CNC turning lathe with an A2-5 spindle nose, 45 mm (1.8 in) bar capacity and a maximum turning diameter of 240 mm (9.4 in). Maximum turning length is 350 mm (13.8 in), and the spindle runs from 40-6,000 rpm.
It is sized for small chucking and bar work. The standard turning diameter is 174 mm (6.9 in), so most jobs will be discs, bushings, flanges and short shafts well under that figure. The 56 mm (2.2 in) spindle bore passes the 45 mm bar with room for a liner, and a bar feeder interface and parts catcher are on the option list for unattended running.
A servo-driven 12-station turret carries 20 mm (0.8 in) OD tools and ID tools up to 32 mm (1.3 in). The tailstock is fully equipped for a machine this small: 290 mm (11.4 in) of body travel, a 75 mm (3.0 in) quill with 100 mm (3.9 in) of stroke, an MT4 taper, and a programmable hydraulic quill as standard. That makes shaft work between centres practical up to the 455 mm (17.9 in) centre distance.
Spindle power is 7.5 / 11 kW (10.1 / 14.8 hp). Rapids are 24 m/min (945 ipm) in X and 30 m/min (1,181 ipm) in Z. The lathe weighs 3,500 kg (7,716 lb), measures 1,885 mm (74.2 in) long by 1,600 mm (63.0 in) wide and needs 15 kVA. A chip conveyor with cart and a hydraulic three-jaw chuck are included. Control is FANUC 0i-MATE-TD.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 140 mm (5.5 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Max Spindle Speed | 40-6,000 rpm |
| Spindle Nose | A2-5 |
| Spindle Bearing Inner Diameter | 80 mm (3.1 in) |
| Spindle Bore | 56 mm (2.2 in) |
| Swing Over Bed | 350 mm (13.8 in) |
| Distance Between Centers | 455 mm (17.9 in) |
| Standard Turning Diameter | 174 mm (6.9 in) |
| Max Turning Diameter | 240 mm (9.4 in) |
| Max Turning Length | 350 mm (13.8 in) |
| Bar Capacity | 45 mm (1.8 in) |
| Turret Stations | 12 stations |
| OD Tool Size | 20 mm (0.8 in) |
| Max ID Tool Diameter | 32 mm (1.3 in) |
| CNC Control | FANUC 0i-MATE-TD |
| Tailstock Travel | 290 mm (11.4 in) |
| Tailstock Quill Travel | 100 mm (3.9 in) |
| Tailstock Taper | MT4 |
| Tailstock Quill Diameter | 75 mm (3.0 in) |
| Rapid Traverse X | 24 m/min (945 ipm) |
| Rapid Traverse Z | 30 m/min (1,181 ipm) |
| Spindle Motor Power | 7.5 / 11 kW (10.1 / 14.8 hp) |
| X Servo Motor | 1.2 kW |
| Z Servo Motor | 1.8 kW |
| Turret Servo Motor | 0.75 kW |
| Power Requirement | 15 kVA |
| Coolant Tank Capacity | 160 L |
| Machine Weight | 3,500 kg (7,716 lb) |
| Machine Length | 1,885 mm (74.2 in) |
| Machine Height | 1,720 mm (67.7 in) |
| Machine Width | 1,600 mm (63.0 in) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 6,000 rpm top spindle speed on an A2-5 nose
- 45 mm (1.8 in) bar capacity through a 56 mm (2.2 in) spindle bore
- Programmable hydraulic tailstock quill and hydraulic chuck are standard
- Chip conveyor with chip cart included
- Small footprint: 1,885 mm (74.2 in) long and 1,600 mm (63.0 in) wide
Limitations
- Maximum turning length of 350 mm (13.8 in)
- No live tooling, Y axis or sub-spindle in the table
- X travel is 140 mm (5.5 in)
- Parts catcher, bar feeder interface and tool setter are options
Best For
Frequently Asked Questions
01
Maximum turning diameter is 240 mm (9.4 in), standard turning diameter 174 mm (6.9 in) and maximum turning length 350 mm (13.8 in). Swing over the bed is 350 mm (13.8 in) and bar capacity is 45 mm (1.8 in).
02
An A2-5 spindle running from 40-6,000 rpm with a 7.5 / 11 kW (10.1 / 14.8 hp) motor. The through-hole diameter is 56 mm (2.2 in) and the front bearing inner diameter is 80 mm (3.1 in).
03
Yes. The tailstock travels 290 mm (11.4 in), and its quill is 75 mm (3.0 in) in diameter with 100 mm (3.9 in) of travel and an MT4 taper. A programmable hydraulic tailstock quill is listed as a standard accessory.
04
A three-jaw through-hole hydraulic chuck with soft and hard jaws, a programmable hydraulic tailstock quill, a chip conveyor with chip cart, a foot switch, work and alarm lights, and a set of OD, ID and boring bar tool holders.
More from Litz
Other CNC Lathes / Turning Centers
Mazak QT-Ez 12

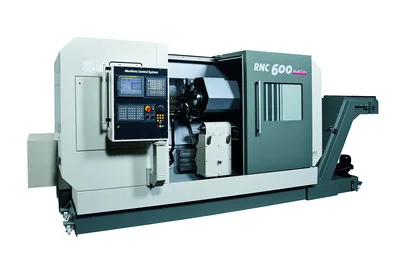

Monforts RNC 600

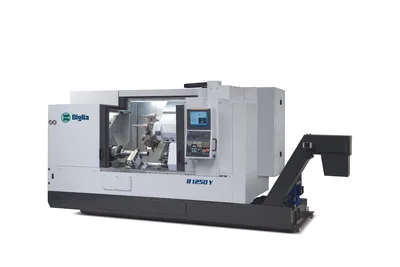

Biglia B1250M
