Litz LH-1250

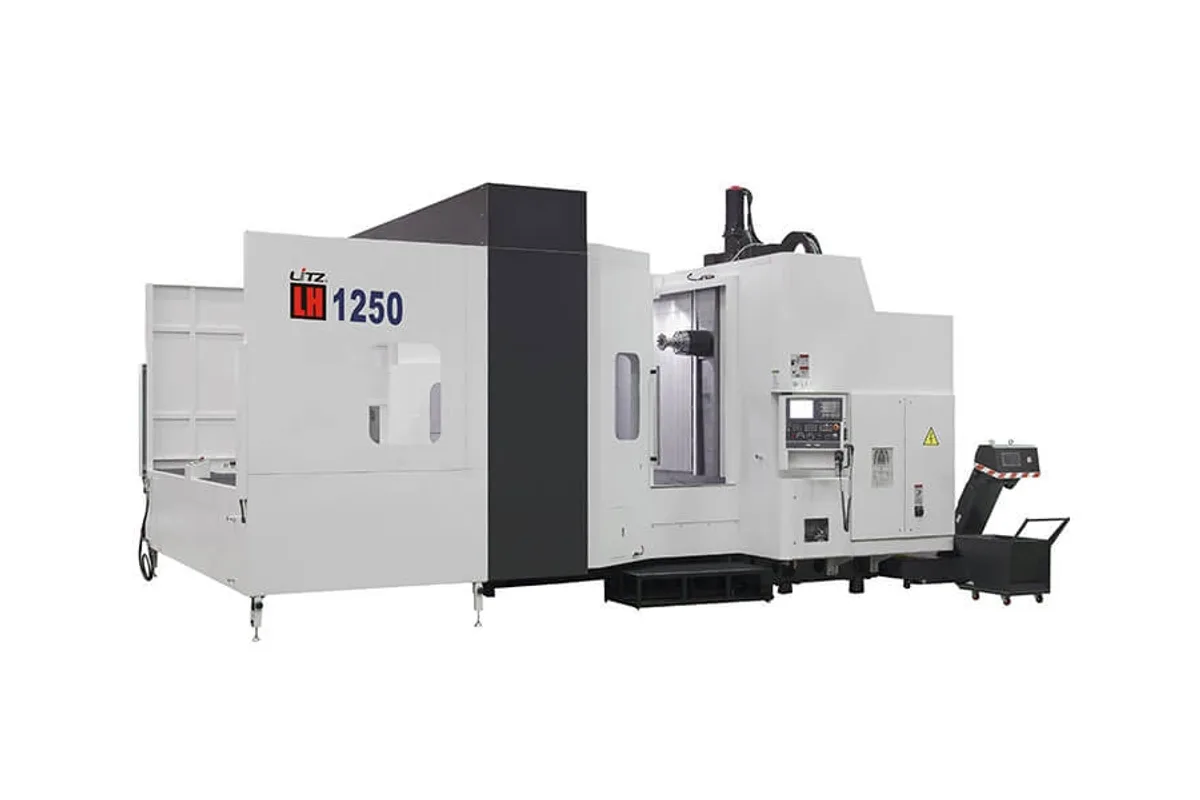

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
x axis travel
y axis travel
How much does the Litz LH-1250 cost?
Price estimate
We do not have a price for the Litz LH-1250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LH-1250 is the largest horizontal machining center in the LH series. Its 1,250 x 1,250 mm (49.2 x 49.2 in) pallets each carry 5,000 kg (11,023 lb), and travels are 2,100 mm (82.7 in) in X, 1,235 mm (48.6 in) in Y and 1,500 mm (59.1 in) in Z.
Against the LH-1000 it changes three things: the pallet, the load and the Z stroke. The extra Z travel is the practical one. A deeper Z axis lets a long boring bar pass right through a large housing from one side, or reach the far wall of a deep part without turning the pallet, which protects the alignment of bores cut in line.
Five tonnes per pallet puts this machine in the class of large pump casings, wind and marine gear housings, press components and machine tool castings. Maximum workpiece height is 1,500 mm (59.1 in). The inclined shuttle-type pallet changer takes 26 s.
The spindle is shared with the LH-1000: No.50 taper, 6,000 rpm, 660 Nm (487 lb-ft) through a ZF gear box and belt, with a 22 / 26 kW (29.5 / 34.9 hp) motor. Tool shank is ISO 50 or NBT-50. Sixty tools are carried, each up to 600 mm (23.6 in) and 30 kg (66 lb), with an 8 s change.
Weight is 35,000 kg (77,160 lb) on a floor area of 8,410 x 5,850 mm (331.1 x 230.3 in). Supply is 65 kVA and rapids are 24,000 mm/min (945 ipm).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,100 mm (82.7 in) |
| Y Axis Travel | 1,235 mm (48.6 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Spindle Center to Pallet Face | 80 to 1,335 mm (3.1 to 52.6 in) |
| Pallet Size | 1,250 x 1,250 mm (49.2 x 49.2 in) |
| Max Pallet Load | 5,000 kg (11,023 lb) |
| Max Workpiece Height | 1,500 mm (59.1 in) |
| Pallet Indexing | 1° |
| Max Spindle Speed | 6,000 rpm |
| Spindle Torque | 660 Nm (487 lb-ft) |
| Spindle Taper | 7/24 Taper,NO.50 |
| Spindle Bearing Inner Diameter | 100 mm (3.9 in) |
| Spindle Transmission | ZF Gear Box + Belt Transmission |
| Rapid Traverse Xyz | 24,000 mm/min (945 ipm) |
| Cutting Feed Rate | 1-10,000 mm/min (up to 394 ipm) |
| Tool Shank | ISO 50 or NBT-50 |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 125 mm (4.9 in); 250 mm (9.8 in) without adjacent tool |
| Max Tool Length | 600 mm (23.6 in) |
| Max Tool Weight | 30 kg (66 lb) |
| Tool Change Time | 8 s (tool to tool) |
| Tool Selection Method | Fixed Address |
| Pallets | 2 |
| Pallet Change Type | Inclined Shuttle-Type |
| Pallet Change Time | 26 s |
| CNC Control | FANUC 0i |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) |
| Axis Motors Xyzb | 7 / 6 / 7 / 4 kW |
| Hydraulic Pump Motor | 3.7 kW |
| Coolant Pump Motor | 1.6 kW |
| Power Requirement | 65 kVA |
| Hydraulic Tank Capacity | 60 L |
| Lubrication Tank Capacity | 4 L |
| Coolant Tank Capacity | 840 L |
| Machine Height | 4,013 mm (158.0 in) |
| Floor Area | 8,410 x 5,850 mm (331.1 x 230.3 in) |
| Machine Weight | 35,000 kg (77,160 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 5,000 kg (11,023 lb) per pallet on 1,250 mm pallets
- 1,500 mm (59.1 in) of Z travel for deep boring
- 2,100 mm (82.7 in) of X travel
- 660 Nm (487 lb-ft) geared spindle with 60 tools
- Two pallets with an inclined shuttle-type changer
Limitations
- 35,000 kg (77,160 lb) and an 8,410 x 5,850 mm footprint
- 24,000 mm/min (945 ipm) rapids and a 26 s pallet change
- 6,000 rpm standard spindle speed
- Pallet indexing of 1° unless the finer option is ordered
Best For
Frequently Asked Questions
01
The pallets are 1,250 x 1,250 mm (49.2 x 49.2 in) and each carries 5,000 kg (11,023 lb). Maximum workpiece height is 1,500 mm (59.1 in). Indexing is 1° as standard.
02
The LH-1250 has larger pallets, a 5,000 kg (11,023 lb) load and 1,500 mm (59.1 in) of Z travel. The LH-1000 has 1,000 mm pallets, 3,500 kg (7,716 lb) and 1,235 mm of Z. X, Y, spindle and magazine are the same.
03
A No.50 taper spindle at 6,000 rpm with 660 Nm (487 lb-ft) of torque, a ZF gear box with belt transmission and a 22 / 26 kW motor. Tool shank is ISO 50 or NBT-50, with 60 tools in the magazine.
04
The machine weighs 35,000 kg (77,160 lb), covers 8,410 x 5,850 mm (331.1 x 230.3 in) and is 4,013 mm (158.0 in) high. It needs a 65 kVA supply and has an 840 L coolant tank.
