Litz LH-1000

Q: How much does the Litz LH-1000 cost?

The price estimate for the Litz LH-1000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-lh-1000#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

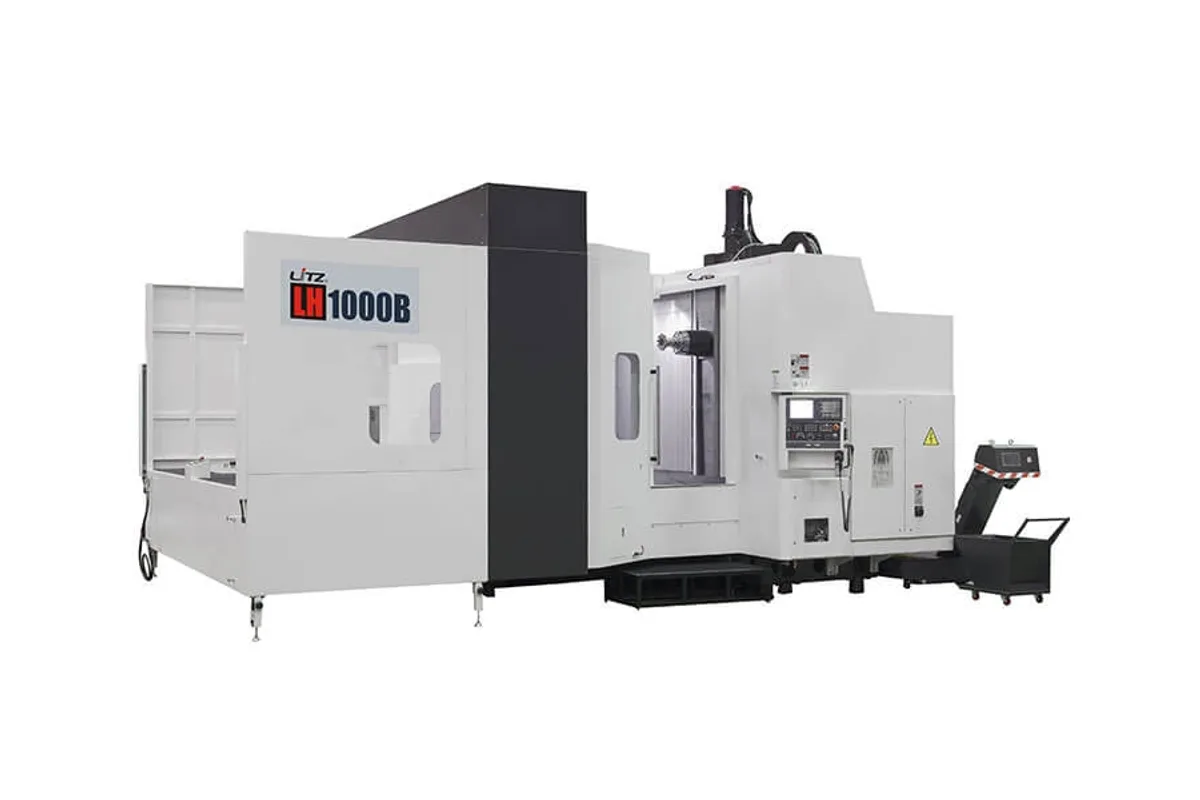

Litz LH-1000 horizontal machining center

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

7/24 Taper,NO.50

Tool Capacity

Spindle Power

22 / 26 kW (29.5 / 34.9 hp)

x axis travel

2,100 mm (82.7 in)

y axis travel

1,235 mm (48.6 in)

How much does the Litz LH-1000 cost?

Price estimate

Uncertain

We do not have a price for the Litz LH-1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz LH-1000 is a large horizontal machining center with 1,000 x 1,000 mm (39.4 x 39.4 in) pallets and 2,100 mm (82.7 in) of X travel. Y and Z each travel 1,235 mm (48.6 in), and each pallet carries 3,500 kg (7,716 lb).

The X stroke is more than twice the pallet width. That lets the spindle reach well past both sides of the pallet, which helps with wide weldments and with workpieces that overhang, and it gives room for long tools to clear the part during indexing.

Pallets are exchanged by an inclined shuttle-type changer in 26 s, a different mechanism from the rotary changers on the smaller LH models and one suited to pallets of this weight. Workpieces can be 1,500 mm (59.1 in) high.

The spindle is the 660 Nm (487 lb-ft) geared unit: No.50 taper, 6,000 rpm, ZF gear box with belt transmission, 22 / 26 kW (29.5 / 34.9 hp). Options listed are 8,000 rpm and 10,000 rpm speeds and a direct transmission. The magazine holds 60 tools up to 600 mm (23.6 in) long and 30 kg (66 lb).

Installation is a project. The machine weighs 32,000 kg (70,547 lb), covers 8,110 x 5,850 mm (319.3 x 230.3 in), stands 4,013 mm (158.0 in) high and needs 65 kVA. Rapids are 24,000 mm/min (945 ipm). The specification table names the control as FANUC 0i.

Full Specifications

Parameter	Value
X Axis Travel	2,100 mm (82.7 in)
Y Axis Travel	1,235 mm (48.6 in)
Z Axis Travel	1,235 mm (48.6 in)
Spindle Center to Pallet Face	100 to 1,335 mm (3.9 to 52.6 in)
Spindle Nose to Pallet Center	280 to 1,515 mm (11.0 to 59.6 in)
Pallet Size	1,000 x 1,000 mm (39.4 x 39.4 in)
Max Pallet Load	3,500 kg (7,716 lb)
Max Workpiece Height	1,500 mm (59.1 in)
Pallet Indexing	1°
Max Spindle Speed	6,000 rpm
Spindle Torque	660 Nm (487 lb-ft)
Spindle Taper	7/24 Taper,NO.50
Spindle Bearing Inner Diameter	100 mm (3.9 in)
Spindle Transmission	ZF Gear Box + Belt Transmission
Rapid Traverse Xyz	24,000 mm/min (945 ipm)
Cutting Feed Rate	1-10,000 mm/min (up to 394 ipm)
Tool Shank	ISO 50 or BBT-50
Tool Capacity	60
Max Tool Diameter (full magazine)	125 mm (4.9 in); 250 mm (9.8 in) without adjacent tool
Max Tool Length	600 mm (23.6 in)
Max Tool Weight	30 kg (66 lb)
Tool Change Time	8 s (tool to tool)
Tool Selection Method	Fixed Address
Pallets	2
Pallet Change Type	Inclined Shuttle-Type
Pallet Change Time	26 s
CNC Control	FANUC 0i
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp)
Axis Motors Xyzb	7 / 6 / 7 / 4 kW
Hydraulic Pump Motor	3.7 kW
Coolant Pump Motor	1.6 kW
Power Requirement	65 kVA
Hydraulic Tank Capacity	60 L
Lubrication Tank Capacity	4 L
Coolant Tank Capacity	840 L
Machine Height	4,013 mm (158.0 in)
Floor Area	8,110 x 5,850 mm (319.3 x 230.3 in)
Machine Weight	32,000 kg (70,547 lb)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,100 mm (82.7 in) of X travel over 1,000 mm pallets
3,500 kg (7,716 lb) per pallet and workpieces up to 1,500 mm (59.1 in) high
660 Nm (487 lb-ft) geared No.50 spindle
60 tools up to 600 mm (23.6 in) and 30 kg (66 lb)
Roller linear rails and hollow ballscrew cooling are standard

Limitations

Pallet change takes 26 s with the shuttle-type changer
Rapids of 24,000 mm/min (945 ipm), slower than the 32,000 mm/min of the LH-800B
65 kVA supply, 32,000 kg (70,547 lb) and an 8,110 x 5,850 mm footprint
6,000 rpm unless a faster spindle option is ordered

Best For

Large machine frames, gearbox housings and weldments Heavy steel and iron parts up to 3,500 kg (7,716 lb) Wide workpieces that need long X travel

Frequently Asked Questions

01 What are the travels of the Litz LH-1000?

2,100 mm (82.7 in) in X and 1,235 mm (48.6 in) in both Y and Z. Spindle centre to pallet face is 100 to 1,335 mm (3.9 to 52.6 in) and spindle nose to pallet centre is 280 to 1,515 mm (11.0 to 59.6 in).

02 How much can an LH-1000 pallet carry?

3,500 kg (7,716 lb) on a 1,000 x 1,000 mm (39.4 x 39.4 in) pallet, with a maximum workpiece height of 1,500 mm (59.1 in). There are two pallets, changed by an inclined shuttle-type changer in 26 s.

03 What spindle does the LH-1000 have?

A No.50 taper spindle at 6,000 rpm with 660 Nm (487 lb-ft) of torque, driven through a ZF gear box and belt by a 22 / 26 kW (29.5 / 34.9 hp) motor. 8,000 rpm and 10,000 rpm spindles are listed as options.

04 How large is the LH-1000 installation?

The floor area is 8,110 x 5,850 mm (319.3 x 230.3 in), the height 4,013 mm (158.0 in) and the weight 32,000 kg (70,547 lb). The power requirement is 65 kVA and the coolant tank holds 840 L.
