JTEKT Horizontal Machining Centers (HMC)

JTEKT FH5000S-i

Q: How much does the JTEKT FH5000S-i cost?

The price estimate for the JTEKT FH5000S-i is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/jtekt-fh5000s-i#price; the request is passed to JTEKT or an authorised dealer.

Specs verified 2026-10-05 · jtektmachinery.com Updated 2026-10-05

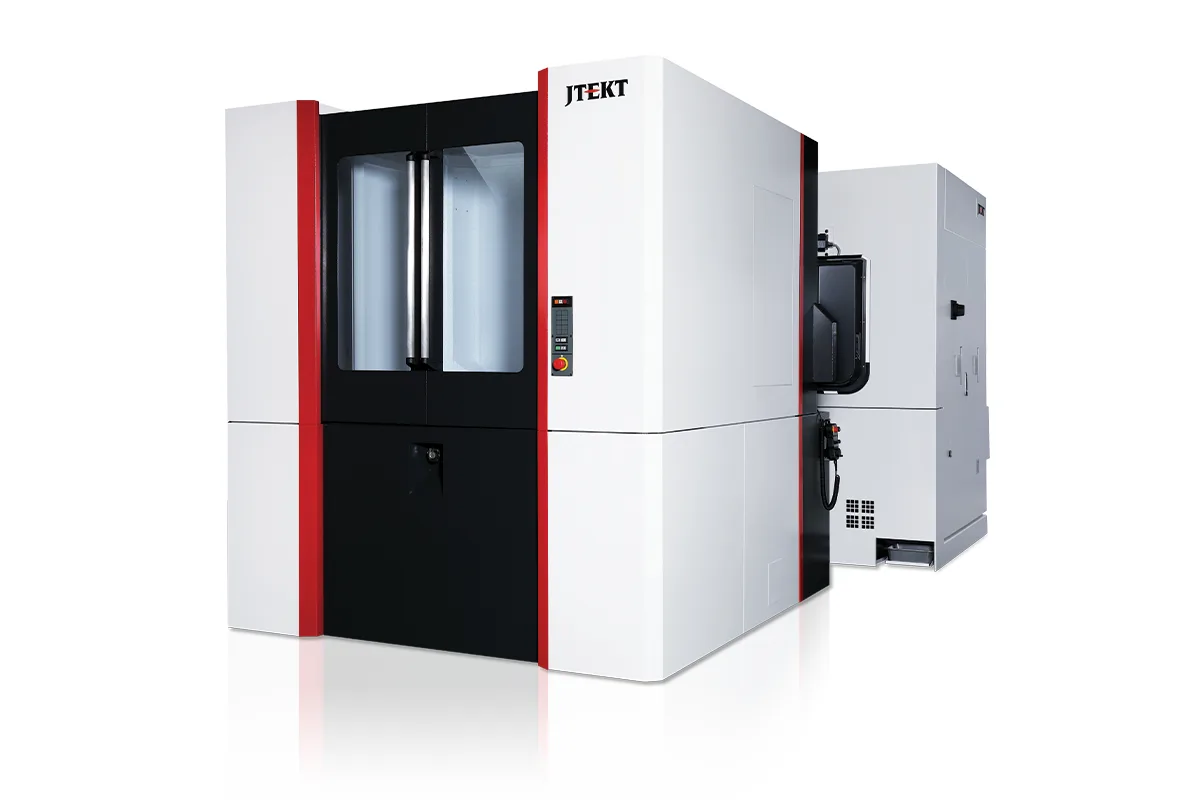

JTEKT FH5000 Series horizontal machining center

Image: jtektmachinery.com, JTEKT

Key Specifications

Max Spindle

15,000 RPM (20,000 RPM opt.)

Spindle Taper

CAT40

Tool Capacity

60, 90, 120, 180, 240, 330

pallet size

21.65 x 21.65 in (550 x 550 mm)

x axis travel

31.5 in (800 mm)

y axis travel

31.50 in (800 mm)

How much does the JTEKT FH5000S-i cost?

Price estimate

Uncertain

We do not have a price for the JTEKT FH5000S-i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The JTEKT FH5000S-i is the CAT40 member of the FH5000 Series: a horizontal machining center with a 21.65 x 21.65 in (550 x 550 mm) pallet, 31.5 in (800 mm) of X travel, 31.50 in (800 mm) of Y and 34.6 in (880 mm) of Z. Its spindle runs to 15,000 RPM and is listed at 223 ft-lb (303 Nm) of torque. It is the only one of the three FH5000 models with a 20,000 RPM option.

The envelope is larger than the pallet suggests. Maximum workpiece swing is 35.4 in (900 mm) and maximum workpiece height is 43.3 in (1,100 mm), so a tall tombstone with parts on four faces fits, provided fixture and parts stay inside the 2,200 lb (1,000 kg) pallet load. That load figure is the one to check first on dense steel or iron work.

JTEKT describes the standard spindle as a 15,000 RPM, 50 HP unit with 303 Nm of torque on a four-bearing design with 85 mm ID bearings. On a CAT40 taper that points the machine at aluminium housings, mid-size steel parts and work with many small tools, where speed and a 2,362 ipm (60 m/min) rapid feedrate count for more than the heaviest face mill. If the same parts need a larger taper, the FH5500S-i carries the same 223 ft-lb (303 Nm) rating on CAT50 and adds X travel, 35.4 in (900 mm).

Tool storage is where this model has the widest choice in the series. JTEKT lists 60, 90, 120, 180, 240 and 330 tools; the 90 and 180 sizes are not in the tables of the two FH5500 models. The B-axis table is direct drive with a 90° index time of 0.7 seconds, and the control is JTEKT's TOYOPUC-Touch HMI running on FANUC 31iMB Plus.

Full Specifications

Parameter	Value
Pallet Size	21.65 x 21.65 in (550 x 550 mm)
X Axis Travel	31.5 in (800 mm)
Y Axis Travel	31.50 in (800 mm)
Z Axis Travel	34.6 in (880 mm)
Max Workpiece Swing	35.4 in (900 mm)
Max Workpiece Height	43.3 in (1,100 mm)
Max Pallet Load	2,200 lb (1,000 kg)
Spindle Torque	223 ft-lb (303 Nm)
Max Spindle Speed	15,000 RPM (20,000 RPM opt.)
Spindle Taper	CAT40
Rapid Traverse Xyz	2,362 ipm (60 m/min)
Tool Capacity	60, 90, 120, 180, 240, 330

Specifications sourced from jtektmachinery.com — verified 2026-10-05

Strengths & Limitations

Strengths

15,000 RPM spindle with 223 ft-lb (303 Nm) of torque, and a 20,000 RPM option that the other two FH5000 Series models do not list
Six tool storage sizes: 60, 90, 120, 180, 240 and 330
35.4 in (900 mm) workpiece swing and 43.3 in (1,100 mm) workpiece height on a 21.65 x 21.65 in (550 x 550 mm) pallet
Direct drive B-axis table with a 90° index time of 0.7 seconds
2,362 ipm (60 m/min) rapid feedrate on X, Y and Z

Limitations

CAT40 taper only; the CAT50 versions of this frame are the FH5500S-i and FH5500SX-i
X travel is 31.5 in (800 mm), against 35.4 in (900 mm) on the FH5500S-i
Pallet load stops at 2,200 lb (1,000 kg), fixture included
Spindle torque is 223 ft-lb (303 Nm); the FH5500SX-i is listed at 390 ft-lb (530 Nm)

Best For

Aluminium and mid-size steel parts on CAT40 tooling at 15,000 RPM Tombstone work up to 43.3 in (1,100 mm) tall within 2,200 lb (1,000 kg) Cells that need 240 or 330 tools on hand Small-tool work that can use the 20,000 RPM option

Frequently Asked Questions

01 How does the FH5000S-i differ from the FH5500S-i?

Taper, X travel and tool storage choices. The FH5000S-i is CAT40 with 31.5 in (800 mm) of X travel and tool storage of 60, 90, 120, 180, 240 or 330. The FH5500S-i is CAT50 with 35.4 in (900 mm) of X and storage of 60, 120, 240 or 330. Pallet, Y and Z travel, pallet load and the 223 ft-lb (303 Nm) torque figure are the same in both tables.

02 What spindle speeds are available on the FH5000S-i?

15,000 RPM is the listed speed and 20,000 RPM is marked as an option. JTEKT's description of the standard spindle gives 50 HP and 303 Nm of torque, with a four-bearing design and 85 mm ID bearings. The page gives no power or torque figure for the 20,000 RPM option, so ask for its curve before choosing it for anything but light cuts.

03 What size of workpiece fits the FH5000S-i?

The pallet is 21.65 x 21.65 in (550 x 550 mm). Maximum workpiece swing is 35.4 in (900 mm), maximum workpiece height is 43.3 in (1,100 mm) and the maximum load on the pallet is 2,200 lb (1,000 kg). Travels are 31.5 in (800 mm) in X, 31.50 in (800 mm) in Y and 34.6 in (880 mm) in Z.

04 How many tools can the FH5000S-i hold?

The table lists 60, 90, 120, 180, 240 and 330 tools. JTEKT calls the 60-tool ATC standard and describes the larger magazines, up to 330 tools, as optional expansions meant for longer unattended running.

05 Which control does the FH5000S-i run?

JTEKT's TOYOPUC-Touch HMI, which the maker describes as a fully functional touch screen overlay running on FANUC 31iMB Plus. The product page lists no further control options for this model.
